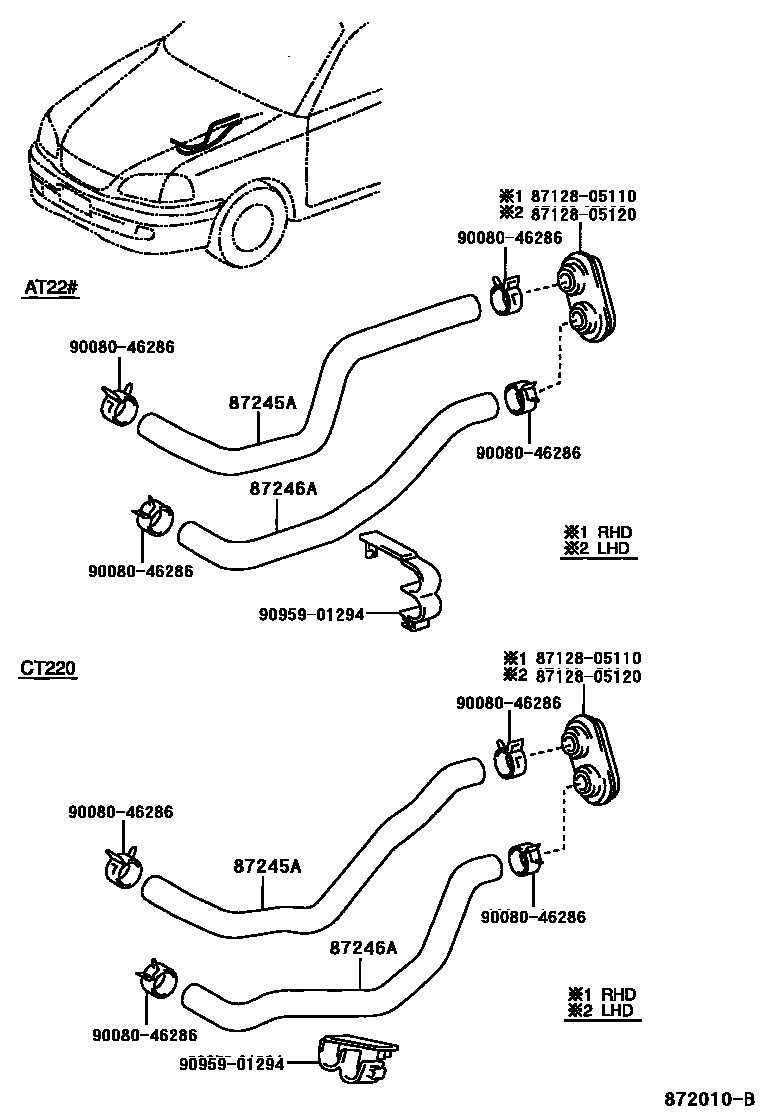

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1W(STOVE HEATER) 0007 1W(STOVE HEATER)

87245AHOSE, HEATER WATER, INLET A

main87245-05110iAT22#..RHD199710-200007

main87245-05130iST220..RHD199710-200007

main87245-05150iCT220..RHD199710-200007

main87245-05170iAT22#..LHD199710-200007

main87245-05190iST220..LHD199710

main87245-05210iCT220..LHD199710-200007

main87245-05230iST220..LHD..SED199710-200007

BRAZIL SPEC OR CHILE SPEC OR MIDDLE SOUTH AMERICA SPEC

main87245-05270iCDT220..RHD199908

main87245-05290iCDT220..LHD199908

main87245-05310iCDT220..LHD199908

W(STOVE HEATER)

main87245-05330iZZT22#..LHD200007

main87245-05350iZZT22#..RHD200007

main87245-05370iAZT220..LHD200007

main87245-05390iAZT220..RHD200007

87246AHOSE, HEATER WATER, OUTLET A

main87245-05120iAT22#..RHD199710-200007

main87245-05140iST220..RHD199710-200007

main87245-05160iCT220..RHD199710-200007

main87245-05180iAT22#..LHD199710-200007

main87245-05200iST220..LHD199710

main87245-05220iCT220..LHD199710-200007

main87245-05240iST220..LHD..SED199710-200007

BRAZIL SPEC OR CHILE SPEC OR MIDDLE SOUTH AMERICA SPEC

main87245-05280iCDT220..RHD199908

main87245-05300iCDT220..LHD199908

main87245-05340iZZT22#..LHD200007

main87245-05360iZZT22#..RHD200007

main87245-05380iAZT220..LHD200007

main87245-05400iAZT220..RHD200007

8712805110GROMMET, HEATER

main87128-05110

8712805120GROMMET, HEATER

main87128-05120

9008046286

main90080-46286

9095901294

main90959-01294

6 parts on this diagram · 7 diagrams in section
