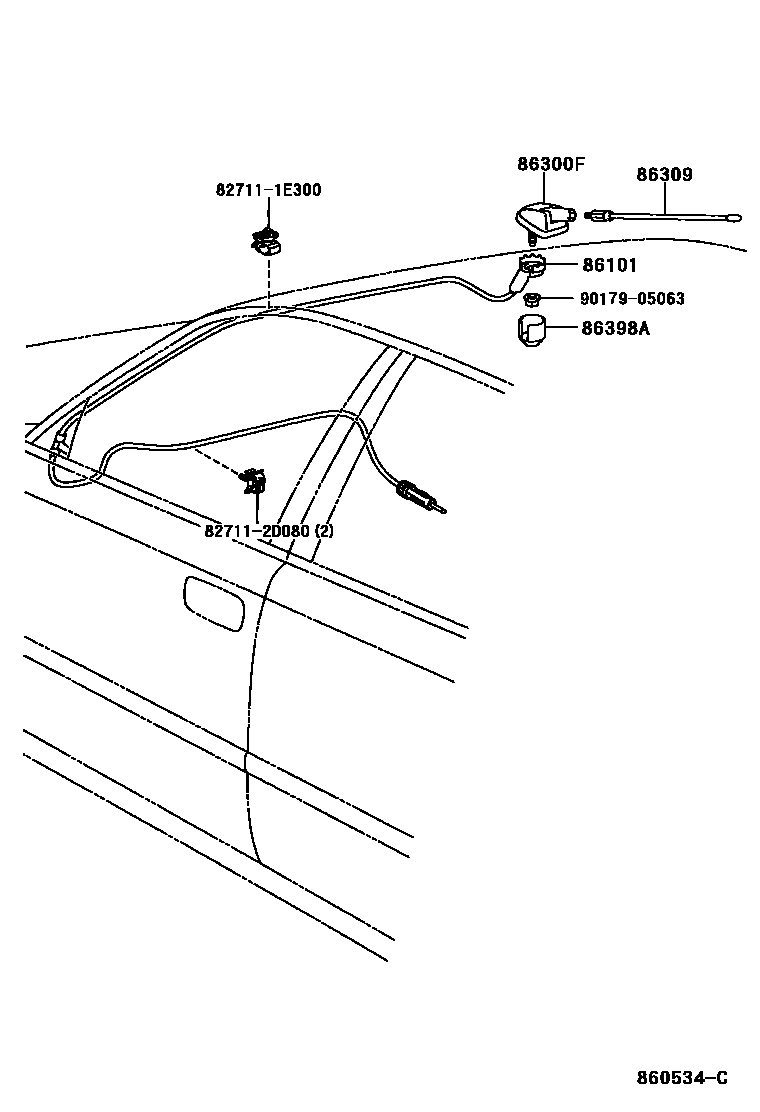

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-05090iAT22#,CT220,ST220..RHD199710-199905

main86101-05091iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199905

main86101-05100iAT22#,CT220,ST220..LHD199710-199905

main86101-05101iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199905

86300FHOLDER ASSY, ANTENNA (CORD/POLE SEPARATE TYPE)

main86300-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

86398ACAP, ANTENNA SHIELD

main86398-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300¥70

827112D080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2D080¥670

9017905063

main90179-05063¥140

7 parts on this diagram · 1 diagram in section
