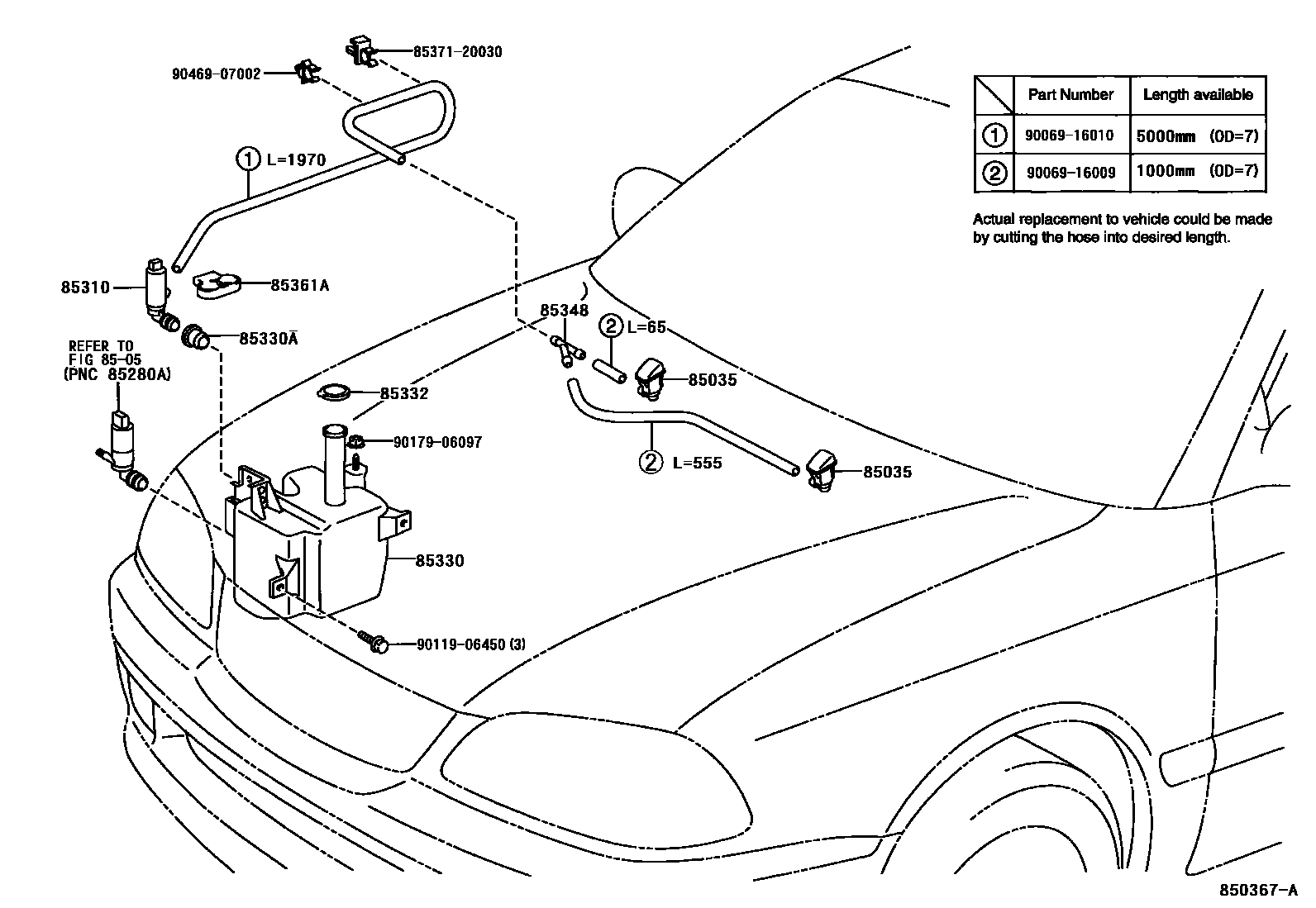

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-05010×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710

sub85381-05011

main85381-05020×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710

sub85381-05021

8505

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

sub85330-05031

85330JAR ASSY, WINDSHIELD WASHER

main85315-05070iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710

main85315-05080iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG199710

main85315-05090iAT22#,CDT220,CT220,ST220..LHD..SED199710-200007

W(HEADLAMP CLEANER)

main85315-05100iAT22#,CDT220,CT220,ST220..LHD..(LB,WG)199710-200007

W(HEADLAMP CLEANER)

85330ABUSH, WINDSHIELD WASHER JAR

main85336-05070iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

85332CAP, WINDSHIELD WASHER JAR

main85316-05070iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85378-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-05080iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

8537120030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-20030

9006916009

main90069-16009

9006916010

main90069-16010

9011906450

main90119-06450

9017906097

main90179-06097

9046907002

main90469-07002

14 parts on this diagram · 1 diagram in section
