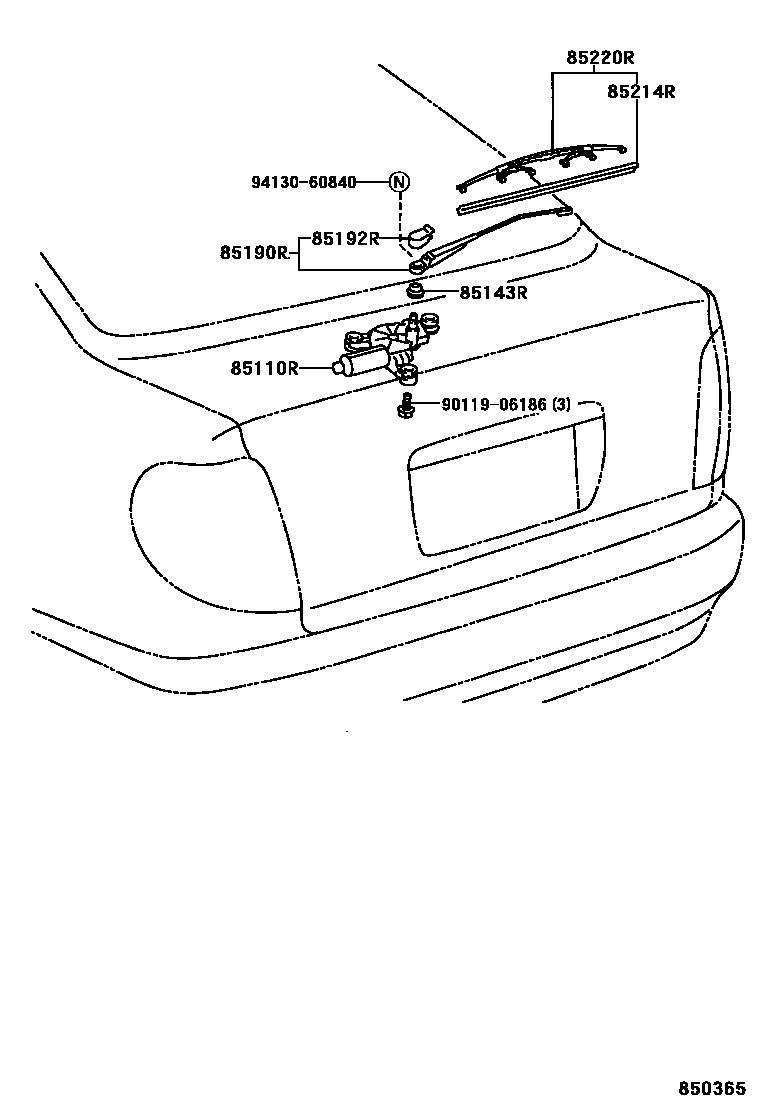

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85130-05040iAT22#,CDT220,CT220,ST220..LB199710-200007

sub85130-05041

main85130-05041iAZT220,CDT220,ST220,ZZT22#..LB200007

main85130-05050iAT22#,CDT220,CT220,ST220..WG199710-200007

sub85130-05051

main85130-05051iAZT220,CDT220,ST220,ZZT22#..WG200007

85143RGROMMET, REAR WIPER MOTOR

main85143-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

sub85143-05031

main85143-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

85190RARM ASSY, REAR WIPER

main85241-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

main85241-05060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

85192RCOVER, REAR WIPER ARM

main85244-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

main85244-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

85214RRUBBER, REAR WIPER

main85214-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

main85243-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

85220RBLADE ASSY, REAR WIPER

main85242-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

main85242-05060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

9011906186

main90119-06186

9413060840

main94130-60840

8 parts on this diagram · 2 diagrams in section
