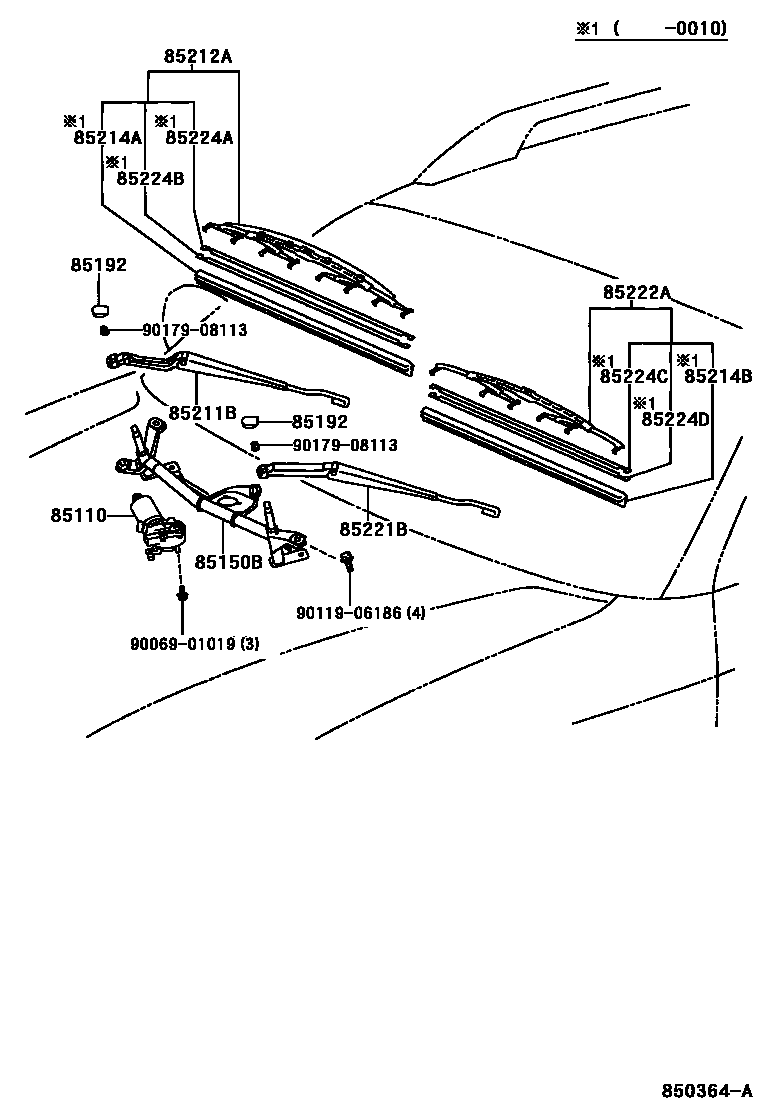

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710

main85110-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710

85150BLINK ASSY, WIPER

main85150-05030iAT22#,CT220,ST220..RHD199710-199804

main85150-05031iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199804

main85150-05040iAT22#,CT220,ST220..LHD199710-199804

main85150-05041iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199804

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

85211BARM, FRONT WIPER, RH

main85211-05040iAT22#,CT220,ST220..RHD199710-199812

main85211-05041iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199812

main85211-05050iAT22#,CT220,ST220..LHD199710-199812

main85211-05051iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199812

85212ABLADE, FR WIPER, RH

main85212-05050iAZT220,CDT220,ZZT22#..RHD200010

main85212-05060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710-200010

main85222-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710-200010

main85222-05090iAZT220,CDT220,ST220,ZZT22#..LHD200010

85214ARUBBER, WIPER, RH

main85214-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710-200010

sub85212-YZZCT

main85214-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710-200010

85214BRUBBER, WIPER, LH

main85214-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710-200010

sub85212-YZZCT

main85214-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710-200010

85221BARM, FRONT WIPER, LH

main85221-05040iAT22#,CT220,ST220..RHD199710-199812

main85221-05041iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199812

main85221-05050iAT22#,CT220,ST220..LHD199710-199812

main85221-05051iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199812

85222ABLADE, FR WIPER, LH

main85222-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710-200010

main85222-05060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710-200010

main85222-05090iAZT220,CDT220,ZZT22#..RHD200010

main85222-05100iAZT220,CDT220,ST220,ZZT22#..LHD200010

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710-200010

main85224-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710-200010

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710-200010

main85224-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710-200010

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710-200010

main85224-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710-200010

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710-200010

main85224-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710-200010

9006901019

main90069-01019

9011906186

main90119-06186

9017908113

main90179-08113

16 parts on this diagram · 1 diagram in section
