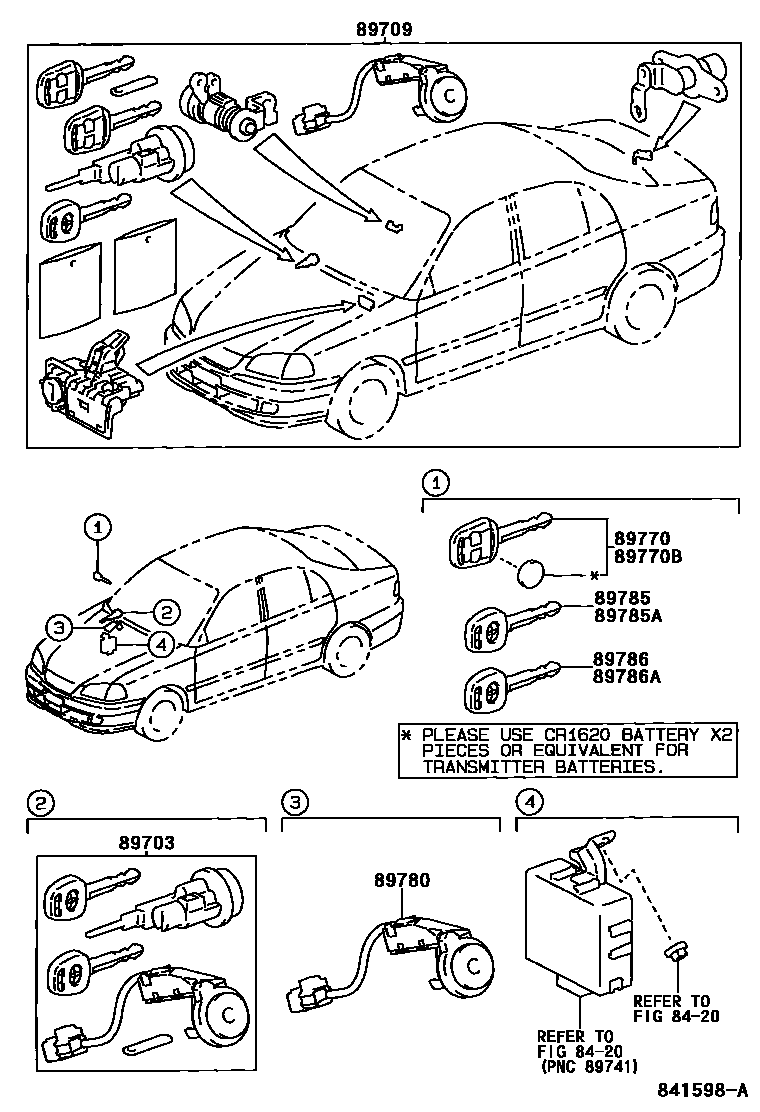

ANTI-THEFT DEVICE

0001 1IMMOBILIZER 0002 1IMMOBILIZER 0003 1IMMOBILIZER 0004 1THEFT WARNING SYSTEM

8420

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-05060iST220199710-199901

main89703-05061iST220199901-200007

main89703-05070iAT22#,CT220..EFI,TDEFI199710-199901

main89703-05071iAT22#,CDT220,CT220..DCR,EFI,TDEFI199901-200007

89709COMPUTER SET, TRANSPONDER KEY

main89709-05130iST220..RHD199710-199901

main89709-05140iST220..LHD199710-199901

main89709-05141iST220..LHD199901-200007

main89709-05150iST220..RHD199710-199901

W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))

main89709-05151iST220..RHD199901-200007

main89709-05220iAT22#,CT220..RHD199710-199901

main89709-05230iAT22#,CT220..LHD..(EFI,TDEFI)199710-199901

main89709-05231iAT22#,CDT220,CT220..LHD..(DCR,EFI,TDEFI)199901-200007

main89709-05240iAT22#,CT220..RHD199710-199901

W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))

main89709-05241iAT22#,CDT220,CT220..RHD199901-200007

main89709-05250iAT22#,CT220..LHD..(EFI,TDEFI)199710-199901

AUSTRIA OR GERMANY OR NORWAY OR SWITZERLAND SPEC

main89709-05251iAT22#,CDT220,CT220..LHD..(DCR,EFI,TDEFI)199901-200007

AUSTRIA OR GERMANY OR NORWAY OR SWITZERLAND SPEC

main89709-05260iAT22#,CT220..LHD..(EFI,TDEFI)199710-199901

DENMARK OR SWEDEN SPEC

main89709-05261iCDT220..LHD199908-200007

SWEDEN SPEC

main89709-05261iAT22#,CT220..LHD..(EFI,TDEFI)199901-200007

DENMARK OR SWEDEN SPEC

main89709-05270iAT22#,CT220..LHD..(EFI,TDEFI)199710-199901

FRANCE SPEC

main89709-05271iAT22#,CDT220,CT220..LHD..(DCR,EFI,TDEFI)199901-200007

FRANCE SPEC

main89709-05280iST220..LHD199710-199901

AUSTRIA OR GERMANY OR NORWAY OR SWITZERLAND SPEC

main89709-05281iST220..LHD199901-200007

AUSTRIA OR GERMANY OR NORWAY OR SWITZERLAND SPEC

main89709-05290iST220..LHD199710-199901

DENMARK OR SWEDEN SPEC

main89709-05291iST220..LHD199901-200007

DENMARK OR SWEDEN SPEC

main89709-05300iST220..LHD..(LB,SED)199710-199901

FRANCE SPEC

main89709-05301iST220..LHD199901-200007

FRANCE SPEC

89770TRANSMITTER ASSY,TRANSPONDER IMMOBILIZER&WIRELESS(BLANK)

main89770-02020iAT22#,CDT220,CT220,ST220..LHD..(DCR,EFI,TDEFI)199901-200007

AUSTRIA OR GERMANY OR NORWAY OR SWITZERLAND SPEC

main89770-02070iAT22#,CDT220,CT220,ST220..LHD..(DCR,EFI,TDEFI)199901-200007

main89770-02080iAT22#,CDT220,CT220,ST220..LHD..(DCR,EFI,TDEFI)199901-200007

FRANCE SPEC

main89770-02090iAT22#,CT220,ST220..LHD..(EFI,TDEFI)199901-200007

DENMARK OR SWEDEN SPEC

main89770-02090iCDT220..LHD199908-200007

SWEDEN SPEC

main89770-05020iAT22#,CT220,ST220..LHD..(EFI,TDEFI)199710-199901

AUSTRIA OR GERMANY OR NORWAY OR SWITZERLAND SPEC

main89770-05050iAT22#,CT220,ST220..LHD..(EFI,TDEFI)199710-199901

main89770-05090iAT22#,CT220,ST220..LHD..(EFI,TDEFI)199710-199901

DENMARK OR SWEDEN SPEC

main89770-05100iST220..LHD..(LB,SED);AT22#,CT220..LHD..(EFI,TDEFI)199710-199901

FRANCE SPEC

89770BTRANSMITTER ASSY, TRANSPONDER W/IMMOBILIZER & WIRELESS(CUT)

main89770-02030iAT22#,CDT220,CT220,ST220..RHD199901-200007

AUSTRIA OR GERMANY OR NORWAY OR SWITZERLAND SPEC

main89770-02100iAT22#,CDT220,CT220,ST220..LHD..(DCR,EFI,TDEFI)199901-200007

main89770-02110iAT22#,CDT220,CT220,ST220..LHD..(DCR,EFI,TDEFI)199901-200007

FRANCE SPEC

main89770-02120iCDT220..LHD199908-200007

SWEDEN SPEC

main89770-02120iAT22#,CT220,ST220..LHD..(EFI,TDEFI)199901-200007

DENMARK OR SWEDEN SPEC

main89770-05030iAT22#,CT220,ST220..RHD199710-199901

AUSTRIA OR GERMANY OR NORWAY OR SWITZERLAND SPEC

main89770-05060iAT22#,CT220,ST220..LHD..(EFI,TDEFI)199710-199901

main89770-05110iAT22#,CT220,ST220..LHD..(EFI,TDEFI)199710-199901

DENMARK OR SWEDEN SPEC

main89770-05120iST220..LHD..(LB,SED);AT22#,CT220..LHD..(EFI,TDEFI)199710-199901

FRANCE SPEC

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-05010iST220199710-199901

main89780-05011iST220199901

main89780-05020iAT22#,CT220..EFI,TDEFI199710-199901

main89780-05021iAT22#,CDT220,CT220..DCR,EFI,TDEFI199901

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-02050iAT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI199901-200007

main89785-05020iAT22#,CT220,ST220..EFI,TDEFI199710-199901

89785ATRANSMITTER, TRANSPONDER CUT KEY MASTER

main89785-02060iAT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI199901-200007

main89785-05030iAT22#,CT220,ST220..EFI,TDEFI199710-199901

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-02020iAT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI199901

main89786-05020iAZT220,ZZT22#199710-199901

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-02030iAT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI199901

main89786-05030iAT22#,CT220,ST220..EFI,TDEFI199710-199901

10 parts on this diagram · 4 diagrams in section
