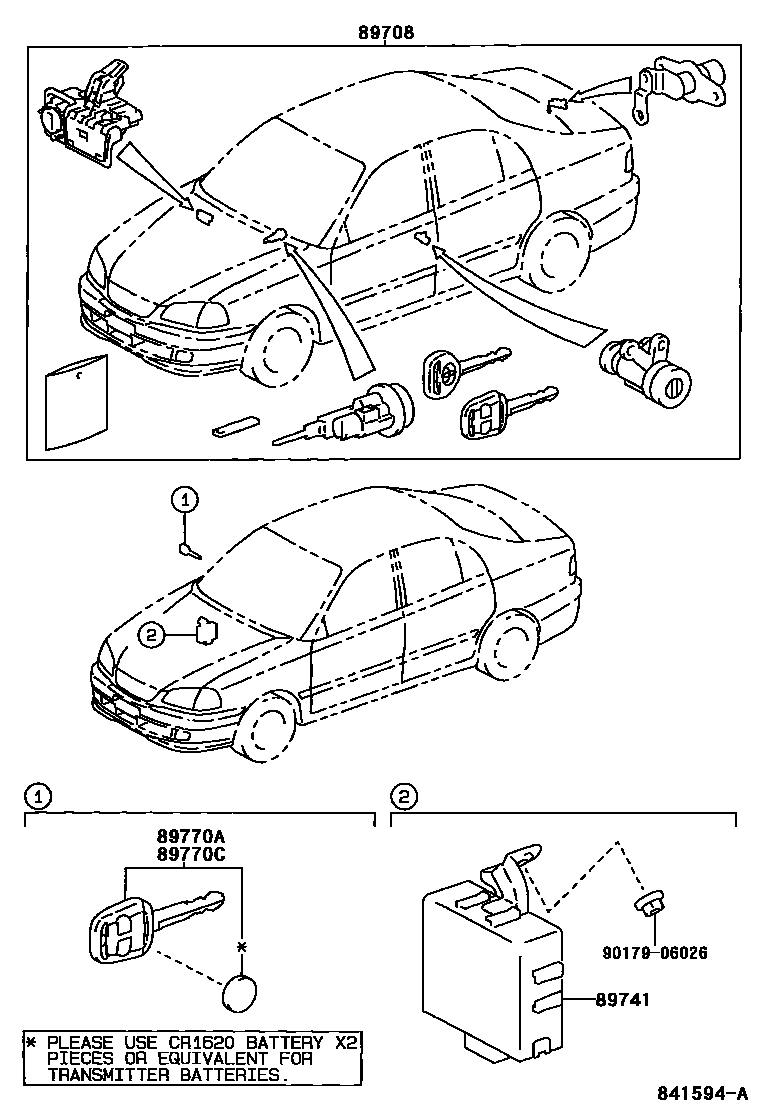

WIRELESS DOOR LOCK

0001 1W/O(IMMOBILIZER) 0002 1W/O(IMMOBILIZER) 0003 1W(IMMOBILIZER) 0004 1W(IMMOBILIZER) 0005 1W(IMMOBILIZER)

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-05010iAT220..LHD..SED;CT220,ST220..LHD..(EFI,TD)199710-199901

main89708-05011iAT220..LHD..SED;CT220,ST220..LHD..(EFI,TD)199901-200007

89741RECEIVER, DOOR CONTROL

main89741-05010iAT22#,CT220,ST220199710-199901

main89741-05030iAT22#,CDT220,CT220,ST220199901-200007

main89741-05040iAZT220,CDT220,ST220,ZZT22#200007-200101

main89741-05041iAZT220,CDT220,ST220,ZZT22#200101

89770ATRANSMITTER ASSY, TRANSPONDER W/O IMMOBILIZER(BLANK)

main89770-02070iAT220..LHD..SED;CT220,ST220..LHD..(EFI,TD)199901-200007

main89770-05050iAT220..LHD..SED;CT220,ST220..LHD..(EFI,TD)199710-199901

89770CTRANSMITTER ASSY, TRANSPONDER W/O IMMOBILIZER(CUT)

main89770-02100iAT220..LHD..SED;CT220,ST220..LHD..(EFI,TD)199901-200007

main89770-05060iAT220..LHD..SED;CT220,ST220..LHD..(EFI,TD)199710-199901

9017906026

main90179-06026

5 parts on this diagram · 5 diagrams in section
