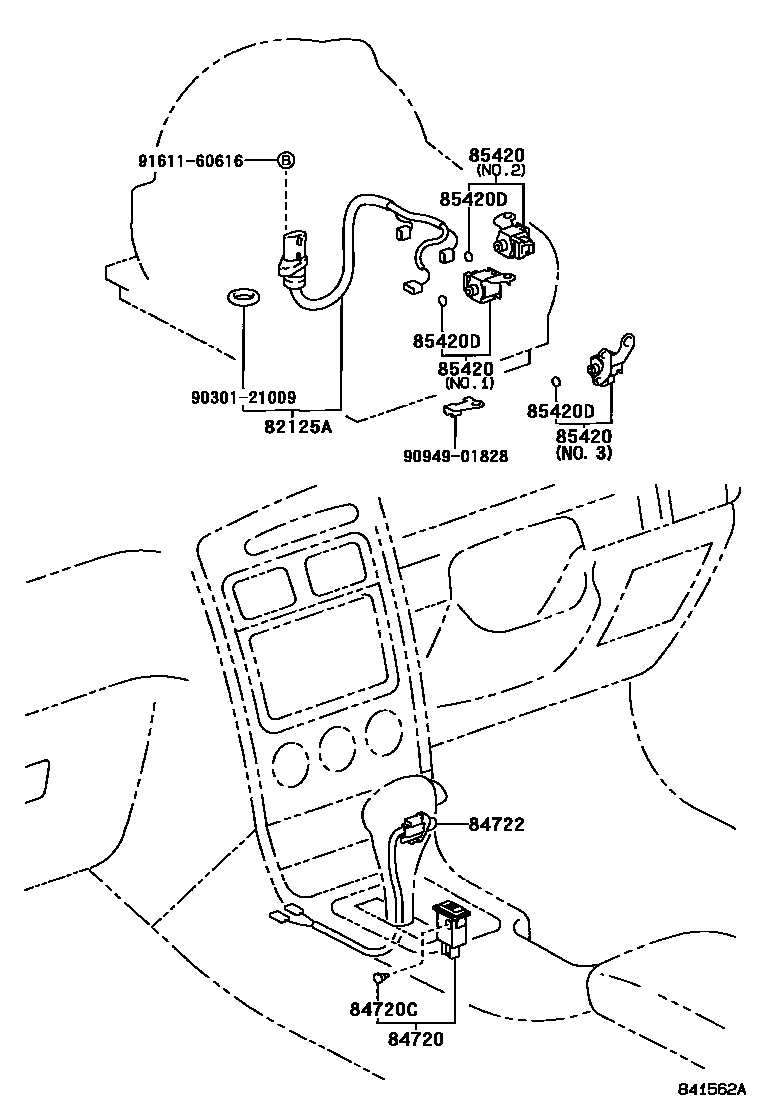

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
84720SWITCH ASSY, PATTERN SELECT
84720CBULB(FOR PATTERN SELECT SWITCH)
14V 1.4W
84722SWITCH, TRANSMISSION CONTROL
BLACK,TRIM1#,6#
85420SOLENOID ASSY, TRANSMISSION
NO.1
NO.1,DENSO
NO.2
NO.2,AISIN
NO.3,AISIN
NO.1,DENSO
NO.2,DENSO
NO.2,AISIN
NO.3
85420DRING, O (FOR TRANSMISSION SOLENOID)
9030121009
main90301-21009
9094901828
main90949-01828
9161160616
main91611-60616
9 parts on this diagram · 6 diagrams in section
