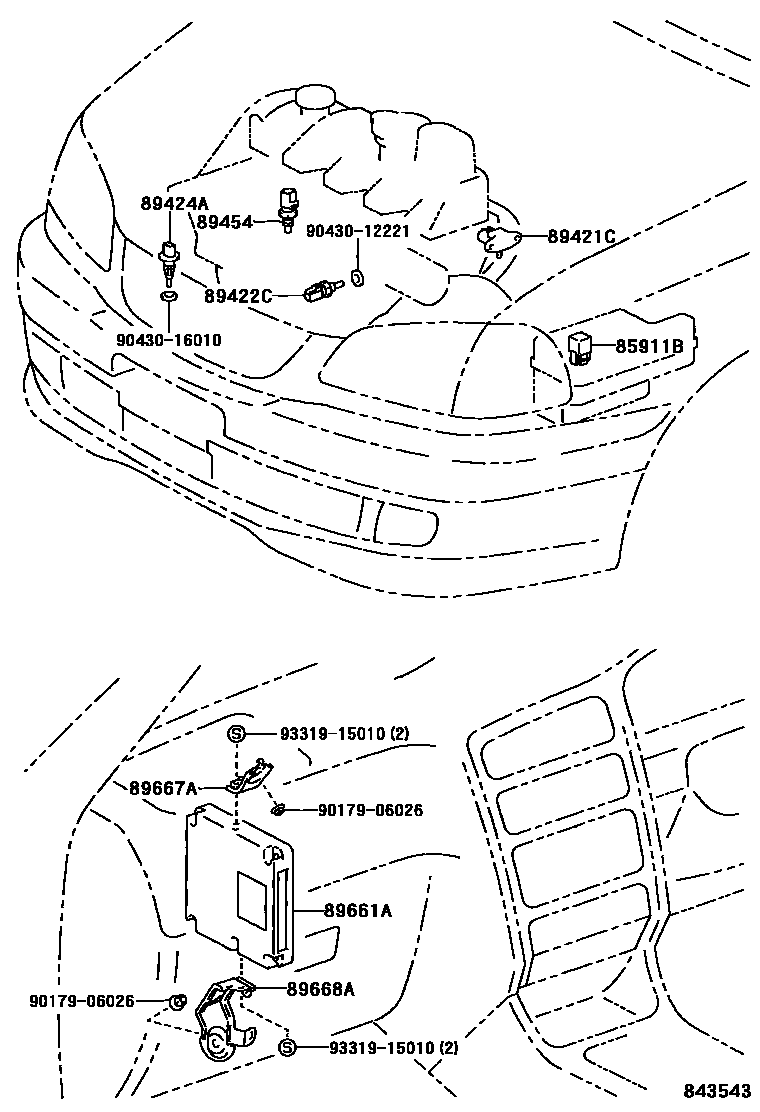

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0003 1 0004 1 0005 1

85911BRELAY, COMPUTER (FOR DIESEL TURBO)

main90080-87013iCDT220,CT220..DCR,TDEFI199710

sub90080-87021

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20210iCDT220199908

main89421-60030iCT220..TDEFI199710-200007

sub89421-60040

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iCDT220,CT220..DCR,TDEFI199710

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-60010iCDT220,CT220..DCR,TDEFI199710

89454SENSOR, FUEL TEMPERATURE

main89454-60010iCT220..TDEFI199710-200007

89661ACOMPUTER, ENGINE CONTROL

main89661-05310iCT220..TDEFI199710-199906

sub89661-05311

main89661-05311iCT220..TDEFI199906-200007

main89661-05410iCDT220199908-200007

main89661-05420iCDT220200007

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-05010iCDT220,CT220..DCR,TDEFI199710-200007

main89667-05030iCDT220200007

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-05010iCDT220,CT220..RHD199710-200007

main89668-05020iCDT220,CT220..LHD..(DCR,TDEFI)199710-200007

main89668-05040iCDT220..RHD200007

main89668-05050iCDT220..LHD200007

9017906026

main90179-06026

9043012221

main90430-12221

9043016010

main90430-16010

9331915010

main93319-15010

12 parts on this diagram · 5 diagrams in section
