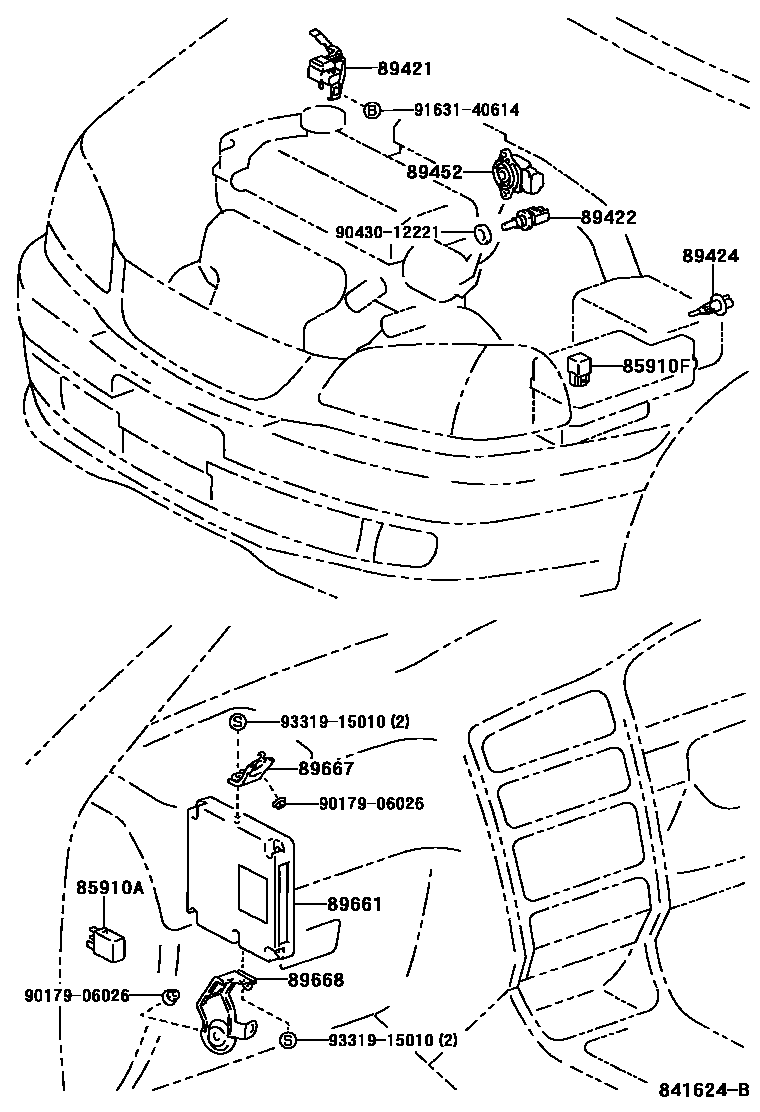

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87013iAT22#,AZT220,ST220,ZZT22#199710

sub90080-87021

85910FRELAY, COMPUTER (FOR EFI)

main90080-87013iAT22#,AZT220,ST220,ZZT22#199710

sub90080-87021

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-20250iAT22#,ST220199710

main89421-20190iAZT220200007

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-05020iAT220..LHD199710-200007

main89422-35010iAT220..LHD..TERRA199710-200007

AUSTRIA OR GERMANY OR SWEDEN SPEC

main89422-35010iAT220..RHD;AT221,AZT220,ST220,ZZT22#199710

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAT22#,AZT220,ST220199710

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-05010iAT220..LHD199710-200007

main89452-20130iAT220..LHD..TERRA199710-200007

AUSTRIA OR GERMANY OR SWEDEN SPEC

main89452-20130iAT220..RHD;AT221,ST220,ZZT22#199710

89661COMPUTER, ENGINE CONTROL

main89661-05200iAT220..RHD199710-200007

AUSTRIA OR GERMANY OR SWEDEN SPEC

main89661-05210iAT221..MTM199710-200007

main89661-05220iAT221..ATM199710-200007

main89661-05230iAT220..LHD199710-199803

sub89661-05231

main89661-05231iAT220..LHD199803-200007

main89661-05240iAT220..LHD..SED..TERRA199710-199803

W/O(ENGINE IMMOBILIZER SYSTEM)

sub89661-05241

main89661-05241iAT220..LHD..SED..TERRA199803-200007

W/O(ENGINE IMMOBILIZER SYSTEM)

main89661-05250iST220..MTM199710

PART NUMBER LABEL=89661-05250

main89661-05260iST220..LHD..MTM199710

PART NUMBER LABEL=89661-05260

main89661-05270iST220..ATM199710

PART NUMBER LABEL=89661-05270

main89661-05280iST220..LHD..ATM199710

PART NUMBER LABEL=89661-05280

main89661-05370iAT221..MTM199710-200007

W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))

main89661-05380iAT221..ATM199710-200007

W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))

main89661-05390iAT221..LHD..MTM199803-200007

W(ENGINE IMMOBILIZER SYSTEM)

main89661-05400iAT221..LHD..ATM199803-200007

W(ENGINE IMMOBILIZER SYSTEM)

main89661-05431iAZT220200007-200010

PART NUMBER LABEL=89661-05431

main89661-05432iAZT220..MTM200010-200107

PART NUMBER LABEL=89661-05432

sub89661-05433

main89661-05442iAZT220..ATM200010-200107

PART NUMBER LABEL=89661-05442

sub89661-05443

main89661-05450iZZT220200007

PART NUMBER LABEL=89661-05450

main89661-05460iZZT221..MTM200007

PART NUMBER LABEL=89661-05460

main89661-05470iZZT221..ATM200007-200103

PART NUMBER LABEL=89661-05470

sub89661-05471

main89661-05471iZZT221..ATM200103-200208

PART NUMBER LABEL=89661-05471

sub89661-05472

main89661-05472iZZT221..ATM200208-200301

PART NUMBER LABEL=89661-05472

main89661-05480iZZT220200007

PART NUMBER LABEL=89661-05480

main89661-05490iZZT221..MTM200007

PART NUMBER LABEL=89661-05490

main89661-05500iZZT221..ATM200007

PART NUMBER LABEL=89661-05500

main89661-05510iAZT220200007-200010

PART NUMBER LABEL=89661-05510

main89661-05511iAZT220..MTM200010-200107

PART NUMBER LABEL=89661-05511

sub89661-05512

main89661-05521iAZT220..ATM200010-200107

PART NUMBER LABEL=89661-05521

sub89661-05522

main89661-05530iAZT220..MTM200107-200205

PART NUMBER LABEL=89661-05530

sub89661-05531

main89661-05531iAZT220..MTM200205-200301

PART NUMBER LABEL=89661-05531

main89661-05540iAZT220..ATM200107-200205

PART NUMBER LABEL=89661-05540

sub89661-05541

main89661-05541iAZT220..ATM200205-200301

PART NUMBER LABEL=89661-05541

main89661-05550iAZT220..MTM200107-200205

PART NUMBER LABEL=89661-05550

sub89661-05551

main89661-05551iAZT220..MTM200205-200301

PART NUMBER LABEL=89661-05551

main89661-05560iAZT220..ATM200107-200205

PART NUMBER LABEL=89661-05560

sub89661-05561

main89661-05561iAZT220..ATM200205-200301

PART NUMBER LABEL=89661-05561

main89661-2D670iAT220..LHD..SED..TERRA199710-200007

CIS SPEC & W/O(ENGINE IMMOBILIZER SYSTEM)

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-05010iAT220..RHD;AT221,ST220199710-200007

main89667-05010iAT220..LHD..TERRA199710-200007

AUSTRIA OR GERMANY OR SWEDEN SPEC

main89667-05020iAT220..LHD199710-200007

main89667-05030iST220,ZZT22#200007

main89667-05040iAZT220200007-200301

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-05010iAT22#,ST220..RHD199710-200007

main89668-05020iAT220..LHD..SED..TERRA199710-200007

AUSTRIA OR GERMANY OR SWEDEN SPEC

main89668-05020iAT221,ST220..LHD199710-200007

main89668-05030iAT220..LHD199710-200007

main89668-05040iZZT22#..RHD200007

main89668-05050iST220,ZZT22#..LHD200007

main89668-05060iAZT220..RHD200007-200301

main89668-05070iAZT220..LHD200007-200301

9017906026

main90179-06026

9043012221

main90430-12221

9163140614

main91631-40614

9331915010

main93319-15010

13 parts on this diagram · 8 diagrams in section
