SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE ROOM 0008 1COWL 0009 1COWL 0010 1INSTRUMENT PANEL 0011 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0014 1IGNITION & COMBINATION SWITCH0015 1ROOF,DOOR SEAT & LUGGAGE 0016 1ROOF,DOOR,SEAT & LUGGAGE 0017 1ROOF,DOOR SEAT & LUGGAGE

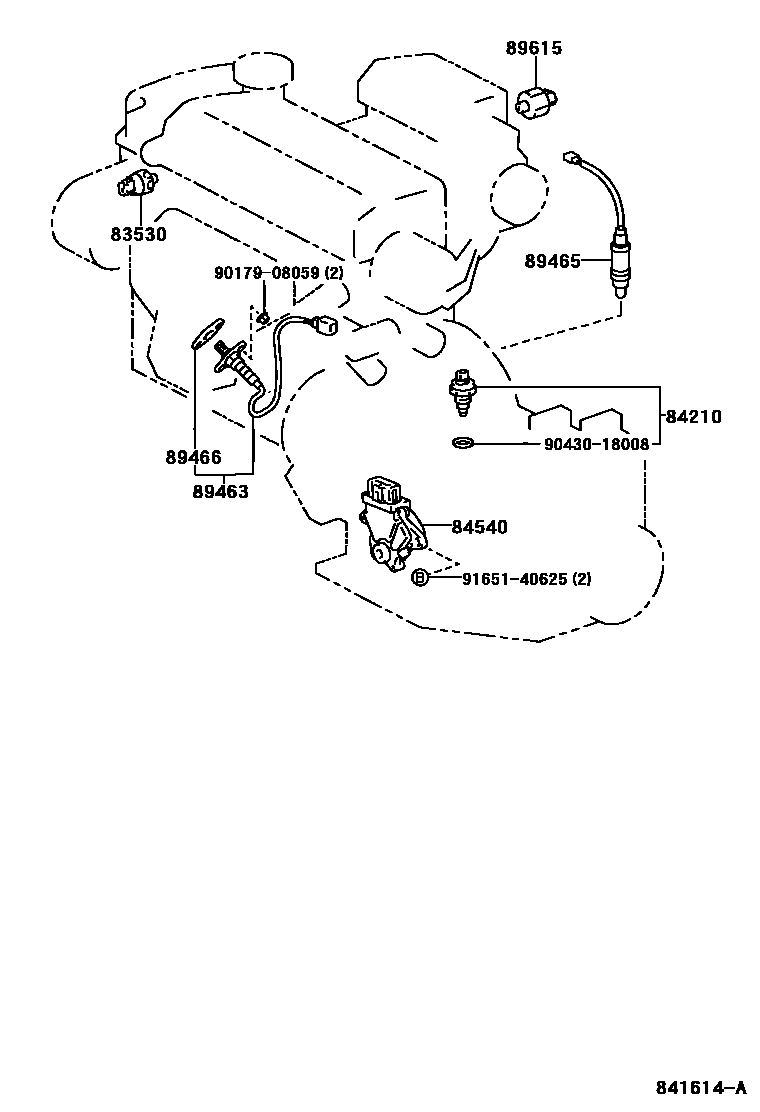

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iAT22#,ZZT22#199710

JAEGER

main83530-28020iAZT220,ST220199803

DENSO

main83530-30090iAT22#199710-199803

YAZAKI

main83530-30100iCT220199710-199803

main83530-60010iCDT220,CT220199803

main83530-60020iAT22#,AZT220,ST220,ZZT22#199803

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAT22#,AZT220,CDT220,CT220,ST220..MTM199710

sub84210-52050

main84210-14040iZZT22#..MTM200007

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAT221..ATM199710-200007

TOKAIRIKA

main84540-12210iAT221..ATM199710-200007

MATSUSHITA

main84540-12230iZZT221..ATM200007

main84540-16050iST220..ATM199710-200007

main84540-32110iAZT220..ATM200010

main84540-52010iST220..ATM200007

89463SENSOR, LEAN MIXTURE

main89463-29055iAT221..MTM;AT220..TERRA199710-199805

main89463-29065iAT221..ATM199710-200007

89465SENSOR, OXYGEN

main89465-05020iAT220..LHD199710-200007

main89465-05070iZZT22#200007

(L),SUB

main89465-20430iST220199710

main89465-20660iAZT220200007

MAIN-RH

main89465-20720iAZT220200007

SUB-RH

main89465-20730iZZT220200007

MAIN

main89465-20740iZZT22#200007

(J),SUB

main89465-20750iAZT220200007

MAIN-LH

main89465-20760iAZT220200007

SUB-LH

main89465-20770iZZT221..ATM200007

MAIN-RH

main89465-20780iZZT221..ATM200007

MAIN-LH

main89465-20790iZZT221..MTM200007

MAIN-RH

main89465-20800iZZT221..MTM200007

MAIN-LH

89466GASKET, OXYGEN SENSOR

main89466-20020iAT221;AT220..TERRA199710-199805

89615SENSOR, KNOCK CONTROL

main89615-05010iAT220..LHD199710-200007

BOSCH

main89615-12030iAT221;AT220..TERRA199710-199805

TOYOTA

main89615-12090iZZT220200007

main89615-12120iZZT221200007

main89615-20030iST220199710-199910

TOYOTA

main89615-22030iAT221;AT220..RHD;AT220..LHD..SED..TERRA199805-199909

MATSUSHITA

main89615-22050iAT221;AT220..RHD;AT220..LHD..SED..TERRA199809-200007

TOYOTA

main89615-30080iAZT220200007-200105

MATSUSHITA

main89615-32030iAZT220,ST220199910-200105

DENSO

main89615-32040iST220199910

TOYOTA

main89615-33020iST220199710-199910

DENSO

main89615-44010iAZT220200105

main89615-52010iAT221;AT220..RHD;AT220..LHD..SED..TERRA199909-200007

MATSUSHITA

9017908059

main90179-08059

9043018008

main90430-18008

9165140625

main91651-40625

10 parts on this diagram · 17 diagrams in section
