METER

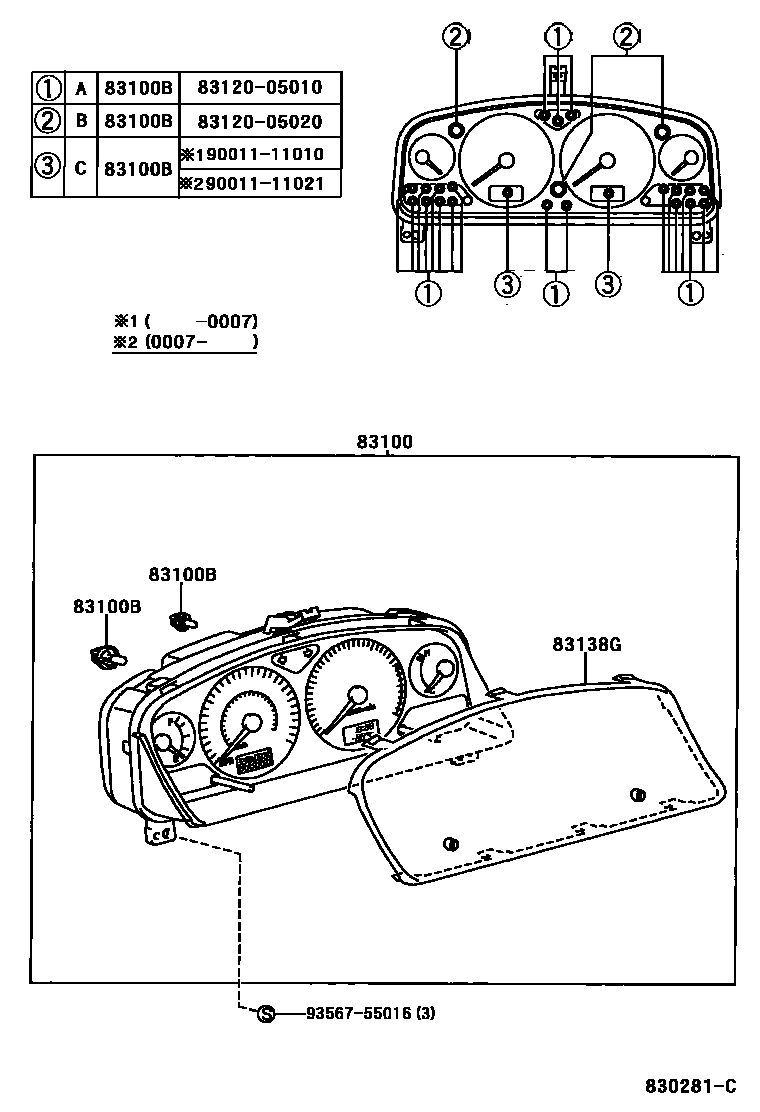

Parts diagram
83100METER ASSY, COMBINATION
main83800-05230i199710-200007
W(SPEED METER---KM)
main83800-05240i199710-200007
W(SPEED METER---KM)
main83800-05250i199710-200007
W(SPEED METER---MILE/KM)
main83800-05260i199710-200007
W(SPEED METER---MILE/KM)
main83800-05270i199710-200007
W(SPEED METER---KM)
main83800-05280i199710-200007
W(SPEED METER---KM)
main83800-05290i199710-200007
W(SPEED METER---MILE/KM)
main83800-05300i199710-200007
W(SPEED METER---MILE/KM)
main83800-05310i199710-200007
W(SPEED METER---KM)
main83800-05320i199710-200007
W(SPEED METER---MILE/KM)
main83800-05330i199710-200007
W(SPEED METER---KM)
main83800-05350i199710-199805
W(SPEED METER---KM & LEAN BURN ENGINE)
main83800-05380i200007-200301
W(SPEED METER---KM)
main83800-05390i200007-200301
W(SPEED METER---MILE/KM)
main83800-05400i200007-200301
W(SPEED METER---KM)
main83800-05410i200007-200301
W(SPEED METER---MILE/KM)
main83800-05420i200007-200301
W(SPEED METER---KM)
main83800-05430i200010-200301
W(SPEED METER---KM)
main83800-05440i200007-200301
W(SPEED METER---MILE/KM)
main83800-05450i200010-200301
W(SPEED METER---MILE/KM)
main83800-05460i200007-200301
W(SPEED METER---KM)
main83800-05470i200007-200301
W(SPEED METER---MILE/KM)
main83800-05480i200007-200301
W(SPEED METER---KM & CLOCK)
main83800-05490i200007-200301
W(SPEED METER---KM & CLOCK)
main83800-05510i200007-200301
W(SPEED METER---KM & CLOCK)
main83800-05520i200007-200301
W(SPEED METER---KM)
83100BBULB, COMBINATION METER, NO.1
main83120-05010×16i199710-200007
12V 1.2W,TYPE A:REFER TO ILLUSTRATION
main83120-05020i200007
12V 3.4W,TYPE B:REFER TO ILLUSTRATION
main90011-11010×2i199710-200007
12V 1.2W,TYPE C:REFER TO ILLUSTRATION
main90011-11021i200007
12V 1.2W,TYPE C:REFER TO ILLUSTRATION
83138GGLASS, COMBINATION METER
main83852-05230i199710
9356755016
main93567-55016

4 parts on this diagram · 2 diagrams in section
