EPC Data

WIRING & CLAMP

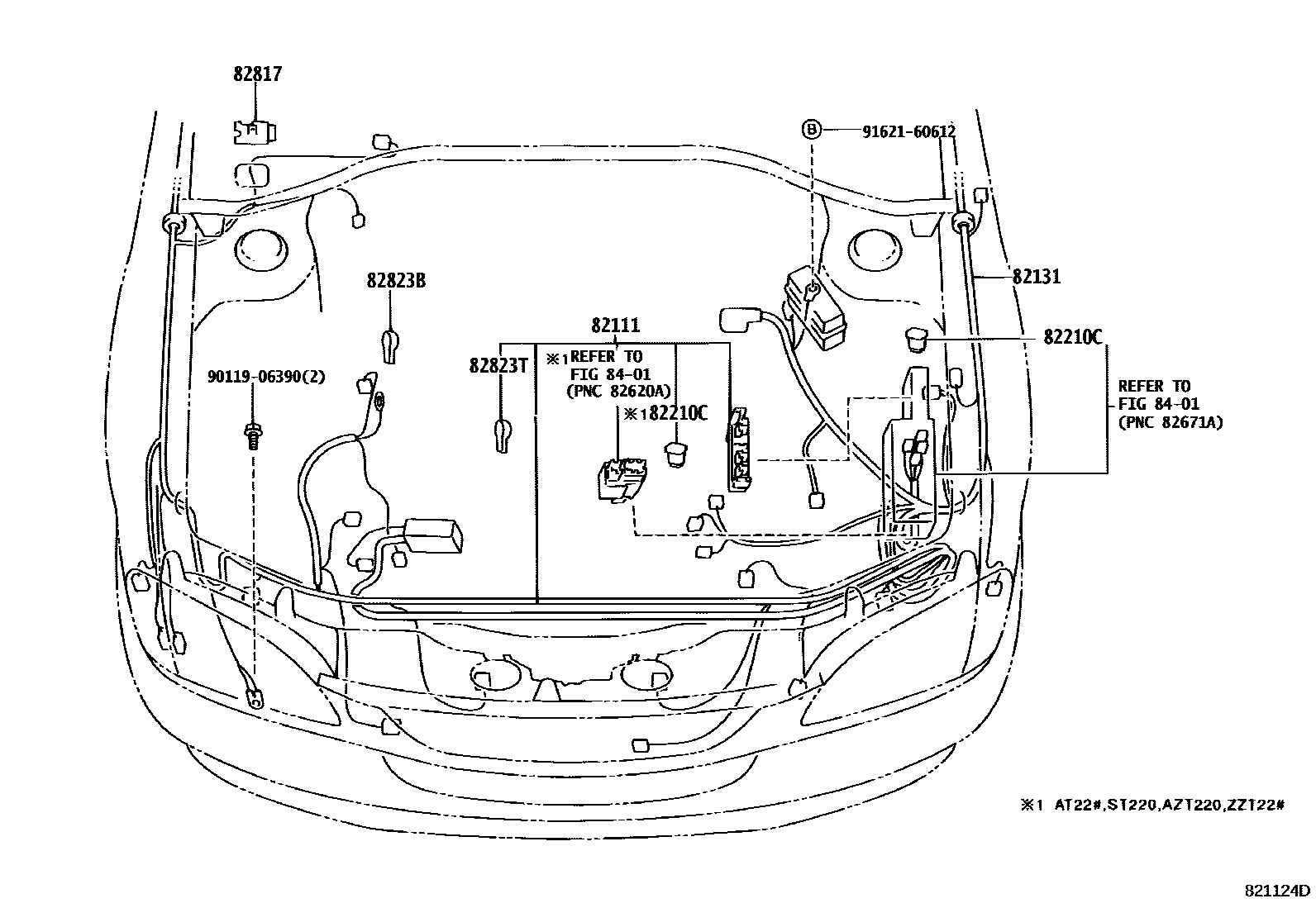

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-05640i200007
main82111-05660i200007
main82111-05670i199710-200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82111-05680i199710-200007
W(DAY TIME RUNNING LIGHT SYSTEM & HEADLAMP CLEANER)
main82111-05690i199710-200007
main82111-05700i199710-200007
main82111-05710i199710-200007
W(HEADLAMP CLEANER)
main82111-05720i199710-200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82111-05730i199710-200007
W(DAY TIME RUNNING LIGHT SYSTEM & HEADLAMP CLEANER)
main82111-05770i199710-200007
main82111-05780i199710-200007
W(FOG LAMP)
main82111-05790i199710-200007
main82111-05800i199710-200007
W(FOG LAMP)
main82111-05810i199710-200007
W(HEADLAMP CLEANER)
main82111-05820i199710-200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82111-05830i199710-200007
W(DAY TIME RUNNING LIGHT SYSTEM & HEADLAMP CLEANER)
main82111-05840i199710-200007
main82111-05850i199710-200007
main82111-05860i199710-200007
W(HEADLAMP CLEANER)
main82115-05050i200007
W(HEADLAMP CLEANER)
main82115-05060i200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82115-05070i200007
W(DAY TIME RUNNING LIGHT SYSTEM & HEADLAMP CLEANER)
main82115-05130i200007
main82115-05140i200007
W(VSC)
main82115-05150i200007
main82115-05160i200007
W(HEADLAMP CLEANER)
main82115-05170i200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82115-05180i200007
W(DAY TIME RUNNING LIGHT SYSTEM & HEADLAMP CLEANER)
main82115-05190i200007
W(VSC)
main82115-05200i200007
W(HEADLAMP CLEANER & VSC)
main82115-05210i200007
W(DAY TIME RUNNING LIGHT SYSTEM & VSC)
main82115-05220i200007
W(DAY TIME RUNNING LIGHT SYSTEM & HEADLAMP CLEANER & VSC)
main82115-05230i200007
main82115-05240i200007
main82115-05250i200007
W(HEADLAMP CLEANER)
main82115-05260i200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82115-05270i200007
W(DAY TIME RUNNING LIGHT SYSTEM & HEADLAMP CLEANER)
main82115-05290i200007
main82115-05320i200007
W(HEADLAMP CLEANER)
82131WIRE, COWL
main82131-05010i199710-200007
main82131-05020i199710-200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82131-05030i199710-200007
main82131-05040i199710-200007
main82131-05050i199710-200007
main82131-05060i199710-200007
main82131-05070i199710-199805
SWEDEN SPEC & W(DAY TIME RUNNING LIGHT SYSTEM)
main82131-05080i199710-200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82131-05090i199710-200007
main82131-05100i199710-200007
W(AUTOMATIC AIR CONDITIONER)
main82131-05110i199710-200007
main82131-05120i199710-200007
W(AUTOMATIC AIR CONDITIONER)
main82131-05130i199710-200007
main82131-05140i199710-200007
W(AUTOMATIC AIR CONDITIONER)
main82131-05150i199710-200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82131-05160i199710-200007
W(AUTOMATIC AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)
main82131-05170i199710-200007
main82131-05180i199710-200007
W(AUTOMATIC AIR CONDITIONER)
main82131-05190i199710-200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82131-05200i199710-200007
W(AUTOMATIC AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)
main82131-05210i199710-200007
main82131-05220i199710-200007
main82131-05230i199710-200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82131-05240i199710-200007
CIS SPEC
main82131-05260i199908-200007
main82131-05270i199908-200007
main82131-05520i200007-200010
main82131-05521i200010-200101
main82131-05522i200101
main82131-05530i200007-200010
W(AUTOMATIC AIR CONDITIONER)
main82131-05531i200010-200101
W(AUTOMATIC AIR CONDITIONER)
main82131-05532i200101
W(AUTOMATIC AIR CONDITIONER)
main82131-05540i199710-199805
AUSTRIA OR GERMANY SPEC
main82131-05550i199710-200007
main82131-05560i199908-200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82131-05570i200007-200101
main82131-05571i200101
main82131-05580i200007-200101
W(AUTOMATIC AIR CONDITIONER)
main82131-05581i200101
W(AUTOMATIC AIR CONDITIONER)
main82131-05590i200007-200101
W(DAY TIME RUNNING LIGHT SYSTEM)
main82131-05591i200101
W(DAY TIME RUNNING LIGHT SYSTEM)
main82131-05600i200007-200101
W(AUTOMATIC AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)
main82131-05601i200101
W(AUTOMATIC AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)
main82131-05610i200007-200010
main82131-05611i200010-200101
main82131-05612i200101
main82131-05620i200007-200010
W(AUTOMATIC AIR CONDITIONER)
main82131-05621i200010-200101
W(AUTOMATIC AIR CONDITIONER)
main82131-05622i200101
W(AUTOMATIC AIR CONDITIONER)
main82131-05670i200007-200010
main82131-05671i200010-200101
main82131-05672i200101
main82131-05680i200007-200010
W(AUTOMATIC AIR CONDITIONER)
main82131-05681i200010-200101
W(AUTOMATIC AIR CONDITIONER)
main82131-05682i200101
W(AUTOMATIC AIR CONDITIONER)
main82131-05690i200007-200101
main82131-05691i200101
main82131-05700i200007-200101
W(AUTOMATIC AIR CONDITIONER)
main82131-05701i200101
W(AUTOMATIC AIR CONDITIONER)
main82131-05710i200007-200101
W(DAY TIME RUNNING LIGHT SYSTEM)
main82131-05711i200101
W(DAY TIME RUNNING LIGHT SYSTEM)
main82131-05720i200007-200101
W(AUTOMATIC AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)
main82131-05721i200101
W(AUTOMATIC AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)
main82131-05730i200007-200101
main82131-05731i200101
main82131-05740i200007-200101
W(AUTOMATIC AIR CONDITIONER)
main82131-05741i200101
W(AUTOMATIC AIR CONDITIONER)
main82131-05750i200007-200101
W(DAY TIME RUNNING LIGHT SYSTEM)
main82131-05751i200101
W(DAY TIME RUNNING LIGHT SYSTEM)
main82131-05760i200007-200101
W(AUTOMATIC AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)
main82131-05761i200101
W(AUTOMATIC AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)
main82131-05770i200007-200010
main82131-05771i200010
main82131-05780i200007-200010
W(AUTOMATIC AIR CONDITIONER)
main82131-05781i200010
W(AUTOMATIC AIR CONDITIONER)
main82131-05790i200007-200010
W(VSC)
main82131-05791i200010-200206
W(VSC)
main82131-05792i200206
W(VSC)
main82131-05800i200007-200010
W(AUTO AIR CONDITIONER & VSC)
main82131-05801i200010-200206
W(AUTOMATIC AIR CONDITIONER & VSC)
main82131-05802i200206
W(AUTO AIR CONDITIONER & VSC)
main82131-05811i200010-200206
main82131-05812i200206
main82131-05821i200010-200206
W(AUTOMATIC AIR CONDITIONER)
main82131-05822i200206
W(AUTOMATIC AIR CONDITIONER)
main82131-05830i200007
W(AUTOMATIC AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)
main82131-05840i200007-200206
W(AUTO AIR CONDITIONER & VSC)
main82131-05841i200206
W(AUTO AIR CONDITIONER & VSC)
main82131-05850i200007-200206
W(DAY TIME RUNNING LIGHT SYSTEM & VSC)
main82131-05851i200206
W(DAY TIME RUNNING LIGHT SYSTEM & VSC)
main82131-05860i200007-200206
W(AUTO AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM & VSC)
main82131-05861i200206
W(AUTO AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM & VSC)
main82131-05870i200010-200206
main82131-05871i200206
main82131-05880i200010-200206
W(AUTOMATIC AIR CONDITIONER)
main82131-05881i200206
W(AUTOMATIC AIR CONDITIONER)
main82131-05890i200010-200206
W(DAY TIME RUNNING LIGHT SYSTEM)
main82131-05891i200206
W(DAY TIME RUNNING LIGHT SYSTEM)
main82135-05010i200010-200206
W(AUTOMATIC AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)
main82135-05011i200206
W(AUTOMATIC AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)
main82135-05020i200007
main82135-05030i200007
W(AUTOMATIC AIR CONDITIONER)
main82135-05040i200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82135-05050i200007-200206
W(VSC)
main82135-05051i200206
W(VSC)
main82135-05060i200007-200010
main82135-05061i200010
main82135-05070i200007-200010
W(AUTOMATIC AIR CONDITIONER)
main82135-05071i200010
W(AUTOMATIC AIR CONDITIONER)
main82135-05080i200007
main82135-05090i200007
W(AUTOMATIC AIR CONDITIONER)
main82135-05100i200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82135-05110i200007
W(AUTOMATIC AIR CONDITIONER & DAY TIME RUNNING LIGHT SYSTEM)
main82135-05120i200007
main82135-05130i200007
W(AUTOMATIC AIR CONDITIONER)
main82135-05140i200007
main82135-05150i200007
W(AUTOMATIC AIR CONDITIONER)
82210CFUSIBLE LINK
main90982-08202i200007-200301
60A,TERM.:MALE,YEL,ENGINE ROOM
main90982-08246i199710-200007
100A,TERM.:MALE,BLUE
main90982-08274i200007
120A,TERM.:MALE,WHT
main90982-08283i199710-200007
30A,TERM.:FEMALE,PNK
main90982-08284i199710-200007
40A,TERM.:FEMALE,GRN
main90982-08285i199710
50A,FEMALE,RED,32VDC
main90982-08286i199710
140A,TERMINAL:MALE
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-2D090i199710
82823BCAP, TERMINAL, NO.3
main82823-22050i199710
82823TCAP, ALTERNATOR TERMINAL
main82823-20070i199710-200007
main82823-22050i199710
8401
9011906390
main90119-06390
9162160612
main91621-60612

9 parts on this diagram · 21 diagrams in section
