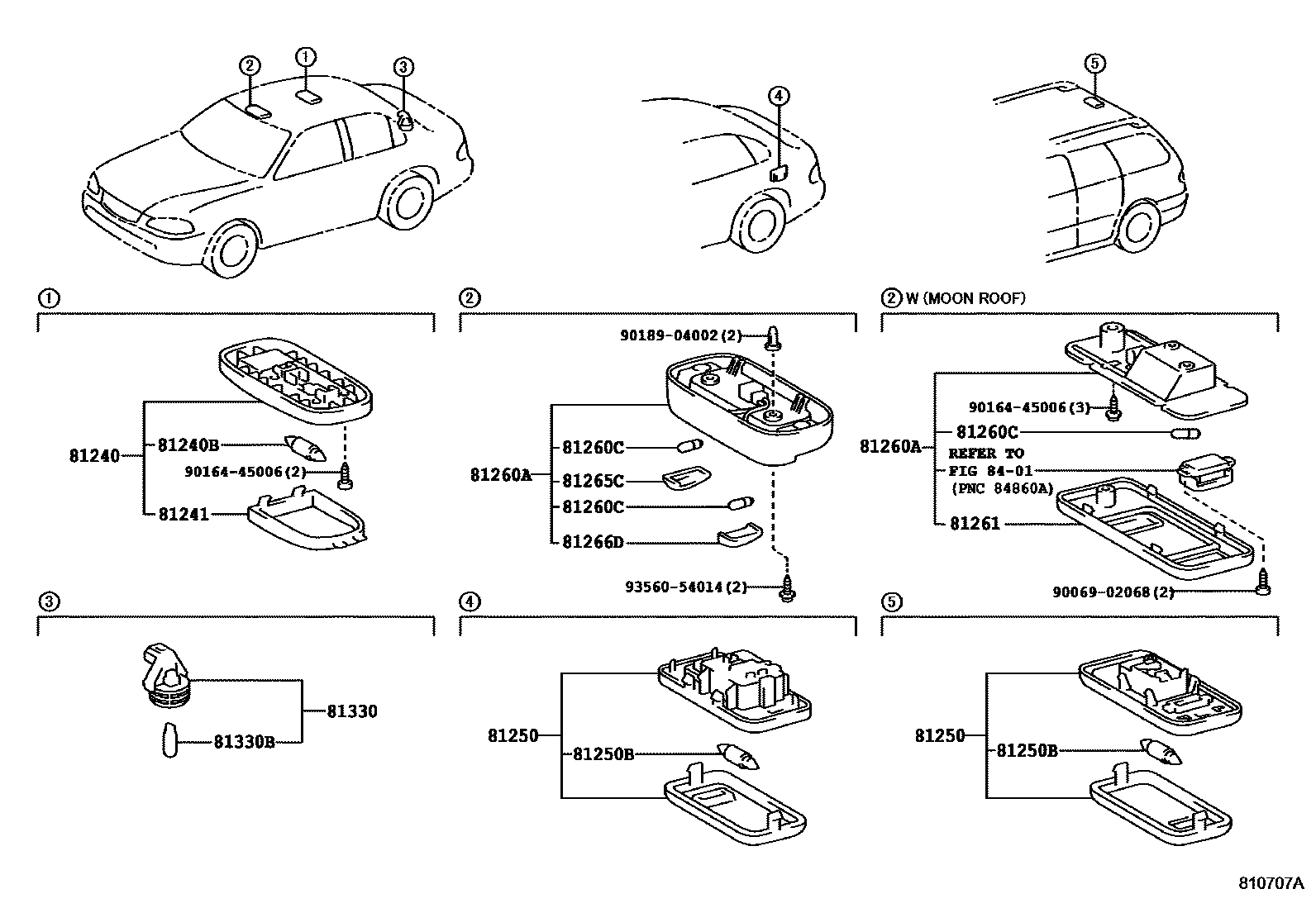

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-05010-B1iAT22#,CDT220,CT220,ST220199710-200007

LT.GRAY,TRIM1#

main81240-05010-G0iAT22#,CDT220,CT220,ST220199710-200007

LT.GREEN,TRIM6#

main81240-05030-B0iAZT220,CDT220,ST220,ZZT22#200007

LT.GRAY,TRIM1#

sub81240-05031

main81240-05030-G0iAZT220,CDT220,ST220,ZZT22#200007

LT.GREEN,TRIM6#

sub81240-05031

81240BBULB, ROOM LAMP, NO.1

main90080-81047iAT22#,CT220,ST220199710-199904

12V 10W

main90080-81078iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199904

12V 10W

sub90981-WE001

81241LENS, ROOM LAMP, NO.1

main81241-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

81250LAMP ASSY, ROOM, NO.2

main81250-05010-B1iAT22#,CDT220,CT220,ST220..LB199710-200007

MD.GRAY,TRIM1#

main81250-05010-B2iAZT220,CDT220,ST220,ZZT22#..LB200007

DK.GRAY,TRIM1#

main81250-05010-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

SLATE GREEN,TRIM6#

main81250-13020-B1iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

LT.GRAY,TRIM1#

main81250-13020-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

LT.GREEN,TRIM6#

81250BBULB, ROOM LAMP, NO.2

main90080-81049iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

12V 5W

main90981-11021iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

12V 5W

81260ALAMP ASSY, MAP

main81260-05040-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200202

LT.GRAY,TRIM1#

main81260-05040-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200202

LT.GREEN,TRIM6#

main81260-05050-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

W(MOON ROOF),LT.GRAY,TRIM1#

sub81260-05051

main81260-05050-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

W(MOON ROOF),LT.GREEN,TRIM6#

sub81260-05051

main81260-20260-B0iAZT220,CDT220,ST220,ZZT22#200202

LT.GRAY,TRIM1#

sub81260-20261

main81260-20260-G0iAZT220,CDT220,ST220,ZZT22#200202

LT.GREEN,TRIM6#

sub81260-20261

81260CBULB(FOR MAP LAMP)

main90011-11006×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200202

12V 5W

main90981-12020×2iAZT220,CDT220,ST220,ZZT22#200202

12V 8W

81261LENS AND COVER, MAP LAMP

main81261-05050-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

LT. GRAY,TRIM1#

main81261-05050-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

LT. GREEN,TRIM6#

81265CLENS, MAP LAMP, NO.1

main81265-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200202

main81265-20260iAZT220,CDT220,ST220,ZZT22#200202

81266DLENS, MAP LAMP, NO.2

main81266-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200202

main81266-20260iAZT220,CDT220,ST220,ZZT22#200202

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90080-81048iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710

12V 5.0W

8401

9006902068

main90069-02068

9016445006

main90164-45006

9018904002

main90189-04002

9356054014

main93560-54014

17 parts on this diagram · 1 diagram in section
