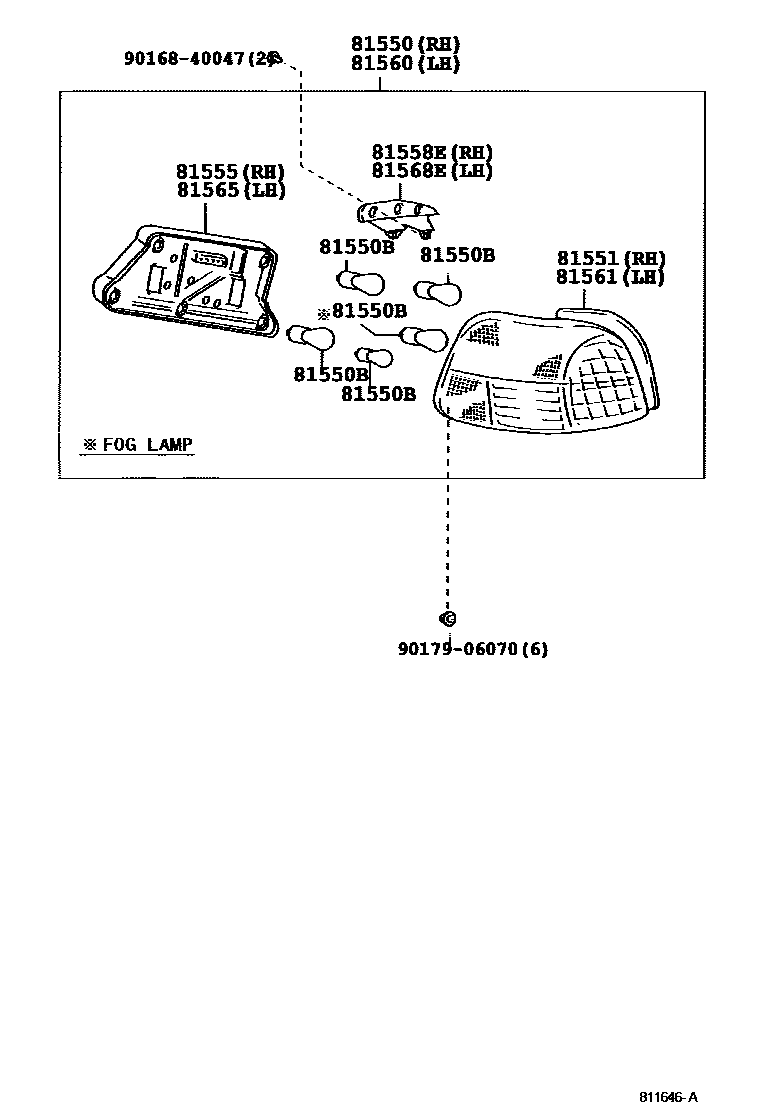

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-05050iAT22#,CT220,ST220..SED199710-199901

W(FOG LAMP)

sub99132-11210

main81550-05051iAT22#,CDT220,CT220,ST220..SED199901-200007

W(FOG LAMP)

sub99132-11210

main81550-05060iAT220,CT220,ST220..LHD..SED..(EFI,TDEFI)199710-199811

W/O(FOG LAMP)

sub99132-11210

main81550-05061iAT220,CT220,ST220..LHD..SED..(EFI,TDEFI)199811-200007

W/O(FOG LAMP)

sub99132-11210

main81550-05070iAT22#,CDT220,CT220,ST220..LB199710-200007

sub99132-11210

main81550-05080iAT22#,CDT220,CT220,ST220..WG199710-200007

sub99132-11210

sub99132-21210

main81550-05090iAZT220,CDT220,ST220,ZZT22#..SED200007

W(FOG LAMP)

sub99132-11210

main81550-05100iCDT220,ST220,ZZT220..LHD..SED200007

W/O(FOG LAMP)

sub99132-11210

main81550-05110iAZT220,CDT220,ST220,ZZT22#..LB200007

sub99132-11210

main81550-05120iAZT220,CDT220,ST220,ZZT22#..WG200007

sub99132-21210

81550BBULB(FOR REAR COMBINATION LAMP)

main90080-81034×2iAZT220,ZZT22#..WG200007

12V 21/5W,NO.2

main90080-81035×6iAT22#,CDT220,CT220,ST220..WG199710-200007

12V 21W,W/O(FOG LAMP)

main90080-81046×2iAZT220,CDT220,ST220,ZZT22#..LB,SED200007

12V 21W,ORANGE

main90080-81068×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED199710

12V 5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-05050iAT22#,CDT220,CT220,ST220..SED199710-200007

W(FOG LAMP)

main81551-05060iAT220,CT220,ST220..LHD..SED..(EFI,TDEFI)199710-200007

W/O(FOG LAMP)

main81551-05070iAT22#,CDT220,CT220,ST220..LB199710-200007

main81551-05080iAT22#,CDT220,CT220,ST220..WG199710-200007

main81551-05090iAZT220,CDT220,ST220,ZZT22#..SED200007

W(FOG LAMP)

main81551-05100iCDT220,ST220,ZZT220..LHD..SED200007

W/O(FOG LAMP)

main81551-05110iAZT220,CDT220,ST220,ZZT22#..LB200007

main81551-05120iAZT220,CDT220,ST220,ZZT22#..WG200007

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-05050iAT22#,CDT220,CT220,ST220..SED199710-200007

main81555-05070iAT22#,CDT220,CT220,ST220..LB199710-200007

main81555-05080iAT22#,CDT220,CT220,ST220..WG199710-200007

main81555-05090iAZT220,CDT220,ST220,ZZT22#..SED200007

main81555-05110iAZT220,CDT220,ST220,ZZT22#..LB200007

main81555-05120iAZT220,CDT220,ST220,ZZT22#..WG200007

81558ECOVER, REAR COMBINATION LAMP, RH

main81558-2B020iAT22#,CT220,ST220..SED199710-199811

81560LAMP ASSY, REAR COMBINATION, LH

main81560-05050iAT22#,CT220,ST220..SED199710-199901

W(FOG LAMP)

sub99132-11210

main81560-05051iAT22#,CDT220,CT220,ST220..SED199901-200007

W(FOG LAMP)

sub99132-11210

main81560-05060iAT220,CT220,ST220..LHD..SED..(EFI,TDEFI)199710-199811

W/O(FOG LAMP)

sub99132-11210

main81560-05061iAT220,CT220,ST220..LHD..SED..(EFI,TDEFI)199811-200007

W/O(FOG LAMP)

sub99132-11210

main81560-05070iAT22#,CDT220,CT220,ST220..LB199710-200007

sub99132-11210

main81560-05080iAT22#,CDT220,CT220,ST220..WG199710-200007

sub99132-11210

sub99132-21210

main81560-05090iAZT220,CDT220,ST220,ZZT22#..SED200007

W(FOG LAMP)

sub90981-15009

sub99132-11050

sub99132-11210

main81560-05100iCDT220,ST220,ZZT220..LHD..SED200007

W/O(FOG LAMP)

sub99132-11210

main81560-05110iAZT220,CDT220,ST220,ZZT22#..LB200007

sub99132-11210

main81560-05120iAZT220,CDT220,ST220,ZZT22#..WG200007

sub99132-21210

81561LENS, REAR COMBINATION LAMP, LH

main81561-05050iAT22#,CDT220,CT220,ST220..SED199710-200007

W(FOG LAMP)

main81561-05060iAT220,CT220,ST220..LHD..SED..(EFI,TDEFI)199710-200007

W/O(FOG LAMP)

main81561-05070iAT22#,CDT220,CT220,ST220..LB199710-200007

main81561-05080iAT22#,CDT220,CT220,ST220..WG199710-200007

main81561-05090iAZT220,CDT220,ST220,ZZT22#..SED200007

W(FOG LAMP)

main81561-05100iCDT220,ST220,ZZT220..LHD..SED200007

W/O(FOG LAMP)

main81561-05110iAZT220,CDT220,ST220,ZZT22#..LB200007

main81561-05120iAZT220,CDT220,ST220,ZZT22#..WG200007

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-05120iAZT220,CDT220,ST220,ZZT22#..WG200007

main81565-05050iAT22#,CDT220,CT220,ST220..SED199710-200007

main81565-05070iAT22#,CDT220,CT220,ST220..LB199710-200007

main81565-05080iAT22#,CDT220,CT220,ST220..WG199710-200007

main81565-05090iAZT220,CDT220,ST220,ZZT22#..SED200007

main81565-05110iAZT220,CDT220,ST220,ZZT22#..LB200007

81568ECOVER, REAR COMBINATION LAMP, LH

main81568-2B020iAT22#,CT220,ST220..SED199710-199811

9016840047

main90168-40047

9017906070

main90179-06070

11 parts on this diagram · 6 diagrams in section
