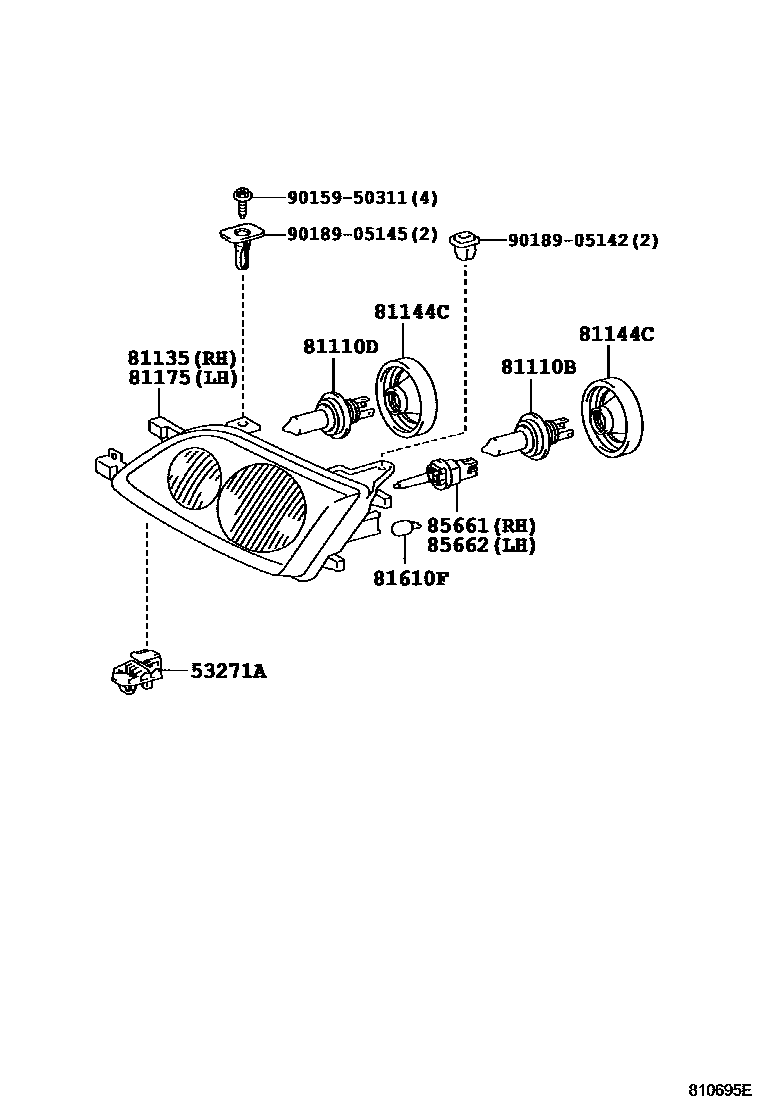

HEADLAMP

0001 1 0002 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2iAT22#,CDT220,CT220,ST220199710-200007

main53271-20020×2iAZT220,CDT220,ST220,ZZT22#200007

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81067×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

12V 55W

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81067×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

12V 55W

81135UNIT ASSY, HEADLAMP, RH

main81130-05080iAZT220,CDT220,ZZT22#..RHD200007

main81130-05100iAZT220,CDT220,ZZT22#..RHD200007

RH TRAFFIC SPEC

main81130-05120iAT22#,CDT220,CT220,ST220..RHD199710-200007

main81130-05140iAT22#,CDT220,CT220,ST220..RHD199710-200007

RH TRAFFIC SPEC

81144CCOVER, HEADLAMP SOCKET

main81139-05080×4iAZT220,CDT220,ST220,ZZT22#200007

main81139-05120×4iAT22#,CDT220,CT220,ST220199710-200007

81175UNIT ASSY, HEADLAMP, LH

main81170-05080iAZT220,CDT220,ZZT22#..RHD200007

main81170-05100iAZT220,CDT220,ZZT22#..RHD200007

RH TRAFFIC SPEC

main81170-05120iAT22#,CDT220,CT220,ST220..RHD199710-200007

main81170-05140iAT22#,CDT220,CT220,ST220..RHD199710-200007

RH TRAFFIC SPEC

81610FBULB(FOR CLEARANCE LAMP)

main90080-81030×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

12V 5W

sub99132-12050

85661MOTOR, HEADLAMP LEVELING, RH

main85661-05020iAT22#,CDT220,CT220,ST220199710-200007

main85661-05030iAZT220,CDT220,ST220,ZZT22#200007

85662MOTOR, HEADLAMP LEVELING, LH

main85661-05020iAT22#,CDT220,CT220,ST220199710-200007

main85661-05030iAZT220,CDT220,ST220,ZZT22#200007

9015950311

main90159-50311

9018905142

main90189-05142

9018905145

main90189-05145

12 parts on this diagram · 2 diagrams in section
