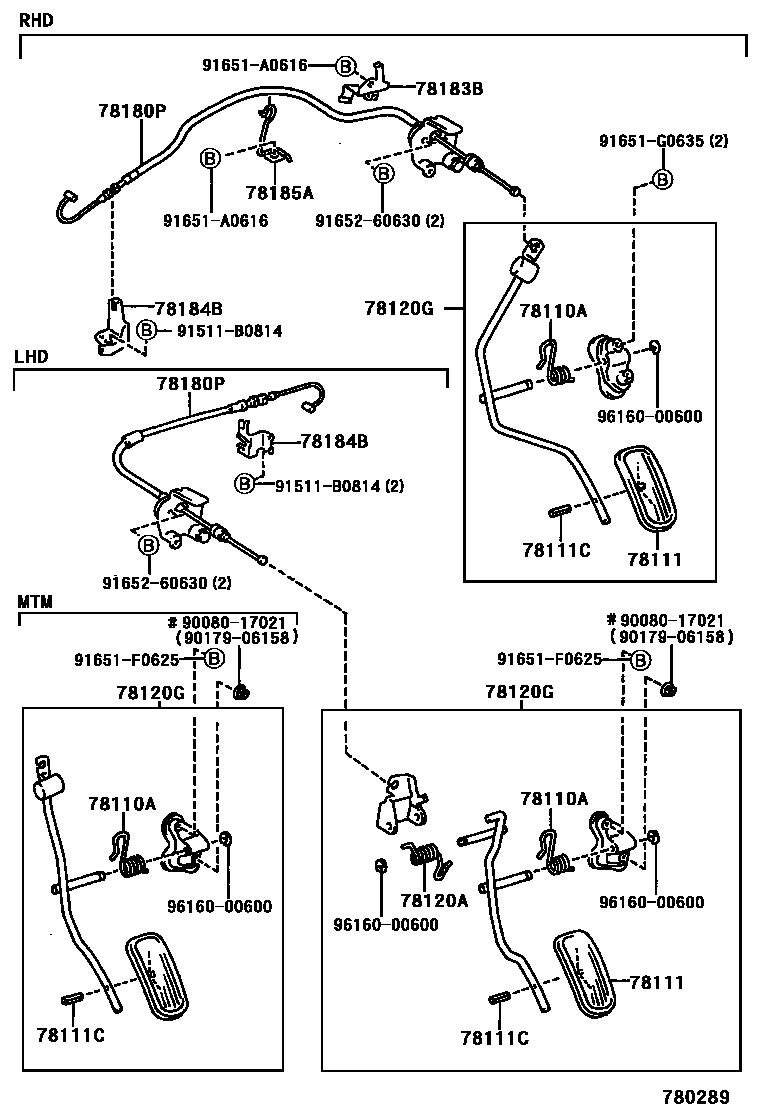

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90080-50107iCT220,ST220..LHD..MTM..(EFI,TD)199710

sub90508-26062

main90080-50108iAT22#..LHD;ST220,ZZT221..LHD..ATM199710

sub90508-18072

main90508-26054iST220..RHD..MTM199710-200007

main90959-03102iST220..RHD..ATM;AT22#,ZZT22#..RHD199710

main90959-03293iZZT22#..LHD..MTM200007

78111PEDAL, ACCELERATOR

main78111-16030iAT22#,CT220,ST220..RHD199710-199902

main78111-20060iCT220..LHD..TDEFI;AT221,ST220..LHD..ATM199710-199902

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main90080-50111iAT221,ST220,ZZT221..LHD..ATM199710

sub90508-29021

78120GROD ASSY, ACCELERATOR PEDAL

main78010-20061iCDT220,CT220..RHD199710

main78010-20071iCT220..LHD..TDEFI199710-199906

main78010-20072iCDT220,CT220..LHD..(DCR,TDEFI)199906

main78010-20090iAZT220..RHD200007

main78010-20100iAZT220..LHD..MTM200007

main78010-20110iAZT220..LHD..ATM200010

main78120-05110iST220..RHD..MTM199710-200007

main78120-05120iZZT22#..RHD200010

main78120-05140iAT221,ST220..LHD..ATM199710-199902

main78120-05141iAT221,ST220,ZZT221..LHD..ATM199902

main78120-05160iCT220,ST220..LHD..MTM..(EFI,TD)199710-199906

main78120-05161iCT220,ST220..LHD..MTM..(EFI,TD)199906

main78120-05170iAT22#..LHD..MTM199710-199906

main78120-05171iAT22#..LHD..MTM199906-200007

main78120-05180iZZT22#..RHD200007-200010

main78120-20830iZZT22#..LHD..MTM200007

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-05140iST220..RHD199710-200007

main78180-05170iAT22#..RHD199710-200007

main78180-05190iAT22#..LHD199710-200007

sub78180-20A30

main78180-05200iST220..LHD199710

main78180-05230iCT220..TD199710-200007

main78180-05240iZZT220..RHD200007

main78180-05250iZZT22#..LHD200007

sub78180-20A20

main78180-05260iZZT221..RHD200007

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20170iAT22#,ST220..RHD199710-200007

main78183-20180iCT220..TD199710-200007

TYPE A:REFER TO ILLUSTRATION

main78183-20300iCT220..TD199710-200007

TYPE B:REFER TO ILLUSTRATION

main78183-20380iZZT22#200007

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-05010iAT22#..LHD199710-200007

main78184-05020iAT22#..RHD199710-200007

main78184-20330iZZT221200007

main78184-20340iZZT220200007

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78183-20290iAT22#..RHD199710-200007

9008017021

main90080-17021

9017906158

main90179-06158

91511B0814

main91511-B0814

91651A0616

main91651-A0616

91651F0625

main91651-F0625

91651G0635

main91651-G0635

9165260630

main91652-60630

9616000600

main96160-00600

17 parts on this diagram · 7 diagrams in section
