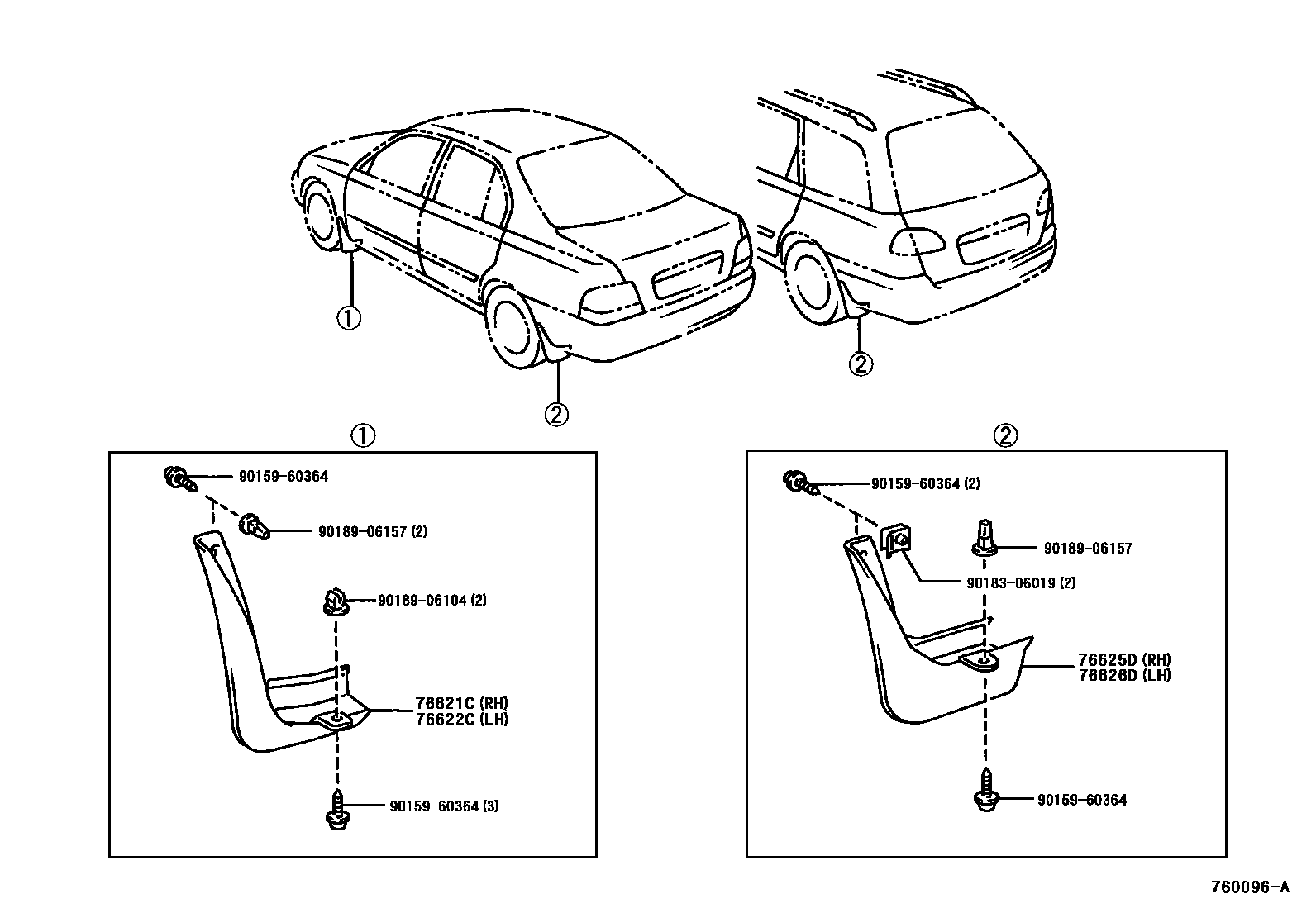

MUDGUARD & SPOILER

76621CMUDGUAD, FRONT FENDER, RH

main76621-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

76622CMUDGUARD, FRONT FENDER, LH

main76622-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

76625DMUDGUARD, QUARTER PANEL, REAR RH

main76625-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

76626DMUDGUARD, QUARTER PANEL, REAR LH

main76626-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

9015960364

main90159-60364

9018306019

main90183-06019

9018906104

main90189-06104

9018906157

main90189-06157

8 parts on this diagram · 1 diagram in section
