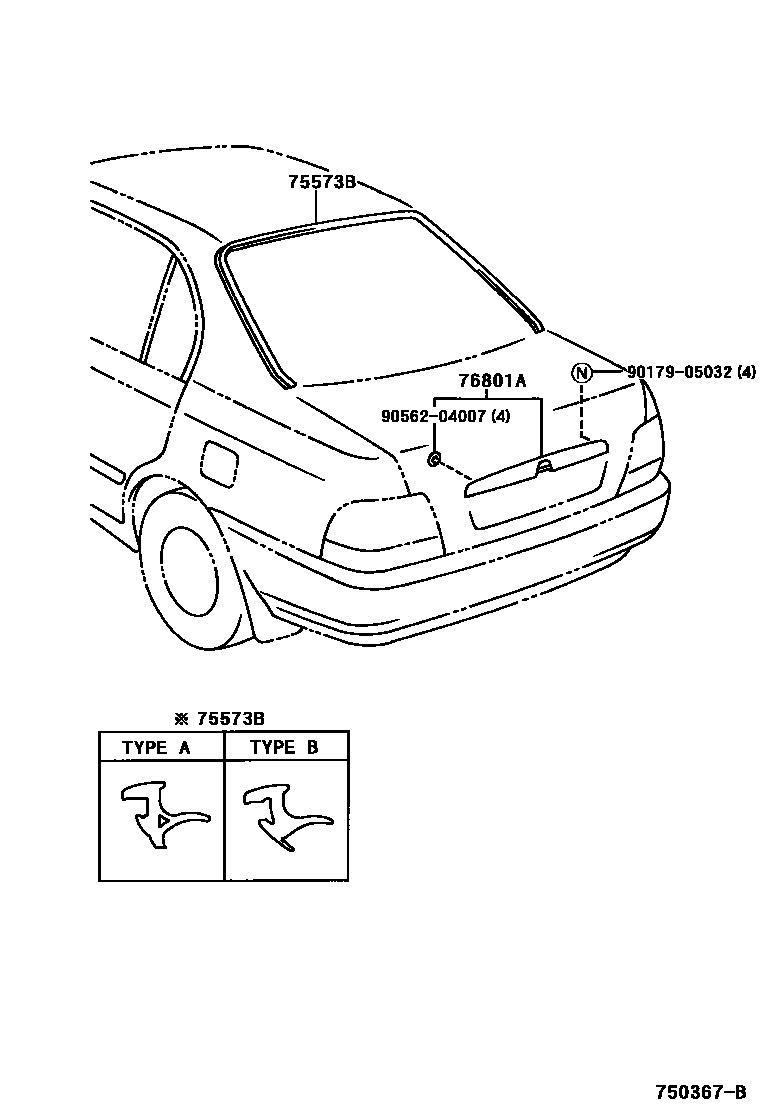

REAR MOULDING

0001 1 0002 1 0003 1

75573BMOULDING, BACK WINDOW, OUTSIDE

main75573-05020iAT22#,CT220,ST220..SED199710-199810

TYPE A:REFER TO ILLUSTRATION

sub75573-05040

main75573-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

main75573-05040iCDT220..SED..TERRA;CDT220..LHD..SED..SOL;AT22#,CT220,ST220..SED199710

TYPE B:REFER TO ILLUSTRATION

main75573-05040iAZT220,ZZT22#..SED;CDT220..RHD..SED..SOL200007

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-05010-A0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710

SUPER WHITE 2,040

sub76801-05901

main76801-05010-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710

SILVER ME,199

sub76801-05901

main76801-05010-B1iAZT220,CDT220,ST220,ZZT22#..SED200107

GRAY M.M.,1E5

sub76801-05901

main76801-05010-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710-200107

BLACK ME,205

sub76801-05901

main76801-05010-C1iAZT220,CDT220,ST220,ZZT22#..SED200107

BLACK MC.,209

sub76801-05901

main76801-05010-C1iCDT220..LHD..SED..TERRA200107-200212

YELLOW TAXI SPEC,BLACK MC.,000

sub76801-05901

main76801-05010-D0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710

SU.RED 3,3J6

sub76801-05901

main76801-05010-D1iAT22#,CDT220,CT220,ST220..SED199710-200007

RED M.M.,3M3

sub76801-05901

main76801-05010-D2iAZT220,CDT220,ST220,ZZT22#..SED200007

RED M.M.,3N8

sub76801-05901

main76801-05010-F0iAZT220,CDT220,ST220,ZZT22#..SED200007

CHAMPAGNE ME.,583

sub76801-05901

main76801-05010-G0iAT22#,CDT220,CT220,ST220..SED199710-200007

DK.GREEN M.M.,6P3

sub76801-05901

main76801-05010-G1iAT22#,CDT220,CT220,ST220..SED199710-200007

LT.GREEN ME.,6Q2

sub76801-05901

main76801-05010-G2iAZT220,CDT220,ST220,ZZT22#..SED200007

DK.GREEN M.M.,6S3

sub76801-05901

main76801-05010-G3iAZT220,CDT220,ST220,ZZT22#..SED200007

GREEN M.M.,6S4

sub76801-05901

main76801-05010-H0iAT22#,CT220,ST220..SED199710-199901

DP.TURQUOISE MC.,758

sub76801-05901

main76801-05010-J0iAT22#,CDT220,CT220,ST220..SED199710-200007

STRONG BLUE M,8B6

sub76801-05901

main76801-05010-J1iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710-200107

DK.BLUE,8M4

sub76801-05901

main76801-05010-J2iAT22#,CDT220,CT220,ST220..SED199901-200007

DK.BLUE ME.,8N3

sub76801-05901

main76801-05010-J3iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED200001-200107

DK.BLUE M.M.,8L3

sub76801-05901

main76801-05010-J4iAZT220,CDT220,ST220,ZZT22#..SED200107

DK.BLUE M.M.,8P4

sub76801-05901

main76801-05010-J5iAZT220,CDT220,ST220,ZZT22#..SED200107

DK.BLUE,8Q4

sub76801-05901

main76801-05010-K0iAT22#,CDT220,CT220,ST220..SED199901-200007

DK.PURPLE M.M.,945

sub76801-05901

main76801-05020-A0iAT22#,CT220,ST220..LB..SOL199710-199901

SUPER WHITE 2,040

sub76801-05902

main76801-05020-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

SILVER ME,199

sub76801-05902

main76801-05020-B1iAZT220,CDT220,ST220,ZZT22#..LB200107

GRAY M.M.,1E5

sub76801-05902

main76801-05020-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710-200107

BLACK ME,205

sub76801-05902

main76801-05020-C1iAZT220,CDT220,ST220,ZZT22#..LB200107

BLACK MC.,209

sub76801-05902

main76801-05020-D0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

SU.RED 3,3J6

sub76801-05902

main76801-05020-D1iAT22#,CDT220,CT220,ST220..LB199710-200007

RED M.M.,3M3

sub76801-05902

main76801-05020-D2iAZT220,CDT220,ST220,ZZT22#..LB200007

RED M.M.,3N8

sub76801-05902

main76801-05020-F0iAZT220,CDT220,ST220,ZZT22#..LB200007

CHAMPAGNE ME.,583

sub76801-05902

main76801-05020-G0iAT22#,CDT220,CT220,ST220..LB199710-200007

DK.GREEN M.M.,6P3

sub76801-05902

main76801-05020-G1iAT22#,CDT220,CT220,ST220..LB199710-200007

LT.GREEN ME.,6Q2

sub76801-05902

main76801-05020-G2iAZT220,CDT220,ST220,ZZT22#..LB200007

DK.GREEN M.M.,6S3

sub76801-05902

main76801-05020-G3iAZT220,CDT220,ST220,ZZT22#..LB200007

GREEN M.M.,6S4

sub76801-05902

main76801-05020-H0iAT22#,CT220,ST220..LB199710-199901

DP.TURQUOISE MC.,758

sub76801-05902

main76801-05020-J0iAT22#,CT220,ST220..LB199710-200007

STRONG BLUE M,8B6

sub76801-05902

main76801-05020-J1iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710-200107

DK.BLUE,8M4

sub76801-05902

main76801-05020-J2iAT22#,CDT220,CT220,ST220..LB199901-200007

DK.BLUE ME.,8N3

sub76801-05902

main76801-05020-J3iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB200001-200107

DK.BLUE M.M.,8L3

sub76801-05902

main76801-05020-J4iAZT220,CDT220,ST220,ZZT22#..LB200107

DK.BLUE M.M.,8P4

sub76801-05902

main76801-05020-J5iAZT220,CDT220,ST220,ZZT22#..LB200107

DK.BLUE,8Q4

sub76801-05902

main76801-05020-K0iAT22#,CDT220,CT220,ST220..LB199901-200007

DK.PURPLE M.M.,945

sub76801-05902

main76801-05030-A0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SUPER WHITE 2,040

sub76801-05903

sub76801-05901

main76801-05030-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SILVER ME,199

sub76801-05903

sub76801-05901

main76801-05030-B1iAZT220,CDT220,ST220,ZZT22#..WG200107

GRAY M.M.,1E5

sub76801-05903

sub76801-05901

main76801-05030-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199805-200107

BLACK ME,205

sub76801-05903

sub76801-05901

main76801-05030-C1iAZT220,CDT220,ST220,ZZT22#..WG200107

BLACK MC.,209

sub76801-05903

sub76801-05901

main76801-05030-D0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SU.RED 3,3J6

sub76801-05903

sub76801-05901

main76801-05030-D1iAT22#,CDT220,CT220,ST220..WG199710-200007

RED M.M.,3M3

sub76801-05903

sub76801-05901

main76801-05030-D2iAZT220,CDT220,ST220,ZZT22#..WG200007

RED M.M.,3N8

sub76801-05903

sub76801-05901

main76801-05030-F0iAZT220,CDT220,ST220,ZZT22#..WG200007

CHAMPAGNE ME.,583

sub76801-05903

sub76801-05901

main76801-05030-G0iAT22#,CDT220,CT220,ST220..WG199710-200007

DK.GREEN M.M.,6P3

sub76801-05903

sub76801-05901

main76801-05030-G1iAT22#,CDT220,CT220,ST220..WG199710-200007

LT.GREEN ME.,6Q2

sub76801-05903

sub76801-05901

main76801-05030-G2iAZT220,CDT220,ST220,ZZT22#..WG200007

DK.GREEN M.M.,6S3

sub76801-05903

sub76801-05901

main76801-05030-G3iAZT220,CDT220,ST220,ZZT22#..WG200007

GREEN M.M.,6S4

sub76801-05903

sub76801-05901

main76801-05030-H0iAT22#,CT220,ST220..WG199710-199901

DP.TURQUOISE MC.,758

sub76801-05903

sub76801-05901

main76801-05030-J0iAT22#,CDT220,CT220,ST220..WG199710-200007

STRONG BLUE M,8B6

sub76801-05903

sub76801-05901

main76801-05030-J1iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710-200107

DK.BLUE,8M4

sub76801-05903

sub76801-05901

main76801-05030-J2iAT22#,CDT220,CT220,ST220..WG199901-200007

DK.BLUE ME.,8N3

sub76801-05903

sub76801-05901

main76801-05030-J3iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG200001-200107

DK.BLUE M.M.,8L3

sub76801-05903

sub76801-05901

main76801-05030-J4iAZT220,CDT220,ST220,ZZT22#..WG200107

DK.BLUE M.M.,8P4

sub76801-05903

sub76801-05901

main76801-05030-J5iAZT220,CDT220,ST220,ZZT22#..WG200107

DK.BLUE,8Q4

sub76801-05903

sub76801-05901

main76801-05030-K0iAT22#,CDT220,CT220,ST220..WG199901-200007

DK.PURPLE M.M.,945

sub76801-05903

sub76801-05901

9017905032

main90179-05032

9056204007

main90562-04007

4 parts on this diagram · 3 diagrams in section
