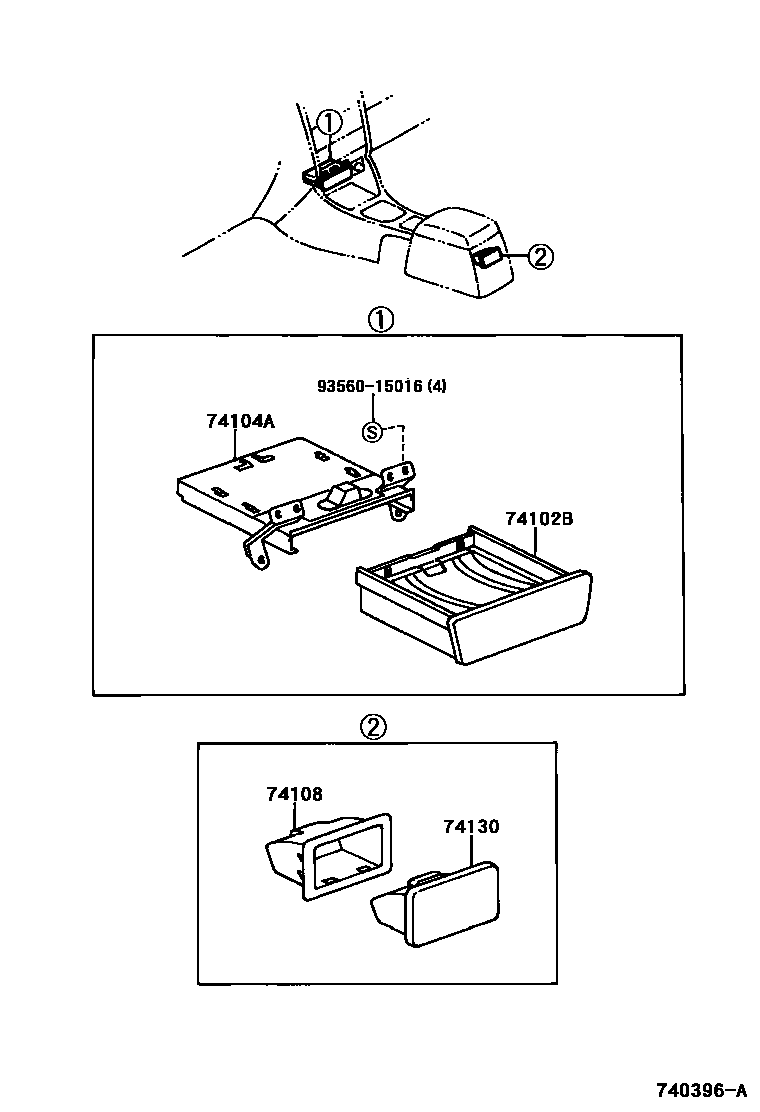

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-05030-B0iAT22#,CDT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main74102-05030-G0iAT22#,CDT220,CT220,ST220199710-200007

SLATE GREEN,TRIM6#

main74102-05040-B0iAZT220,CDT220,ST220,ZZT22#200007

DK.GRAY,TRIM1#

main74102-05040-G0iAZT220,CDT220,ST220,ZZT22#200007

SLATE GREEN,TRIM6#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-05030iAT22#,CDT220,CT220,ST220199710-200007

main74104-05050iAZT220,CDT220,ST220,ZZT22#200007

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

74130RECEPTACLE ASSY, REAR ASH

main74109-05010-B2iAZT220,CDT220,ST220,ZZT22#200007

DK.GRAY,TRIM1#

main74109-05010-C0iAT22#,CDT220,CT220,ST220199710-200007

BLACK,TRIM1#,6#

main74109-05010-G0iAZT220,CDT220,ST220,ZZT22#200007

SLATE GREEN,TRIM6#

9356015016

main93560-15016

5 parts on this diagram · 1 diagram in section
