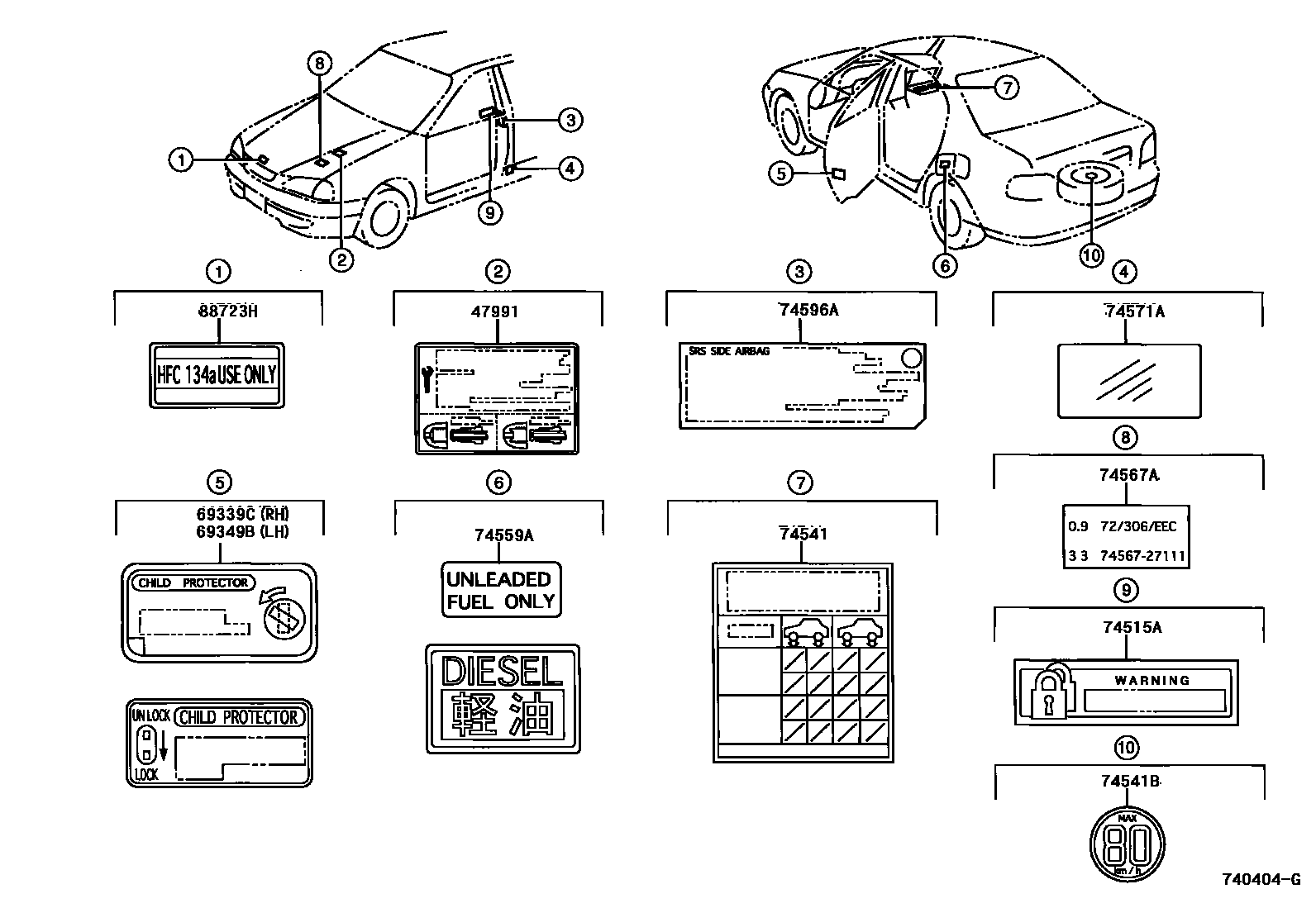

CAUTION PLATE (EXTERIOR & INTERIOR)

47991LABEL, BRAKE TUBE INFORMATION

main47991-33010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199905

69339CLABEL, CHILD PROTECTOR INFORMATION

main69339-03010iAZT220,CDT220,ZZT22#..RHD200007

sub69339-AA020

main69339-05020iAZT220,CDT220,ST220,ZZT22#..LHD200007

69349BLABEL, CHILD PROTECTOR INFORMATION, LH

main69339-03010iAZT220,CDT220,ZZT22#..RHD200007

sub69339-AA020

main69349-05020iAT22#,CDT220,CT220,ST220199710-200007

74515APLATE, THEFT WARNING

main74515-20010×2iAZT220,CDT220,ZZT22#..RHD200007

74541PLATE, TIRE PRESSURE CAUTION

main42661-05100iAT22#,CT220..TERRA199710-200007

main42661-05110iAT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI200001-200007

W(REAR DISC BRAKE)

main42661-05120iCDT220..WG200007

74541BPLATE, COMPACT SPARE TIRE CAUTION

main42668-20020iCDT220..WG200007

74559APLATE, FUEL CAUTION

main74559-05010iAT22#,AZT220,ST220,ZZT22#199710

main74559-14030iCDT220,CT220199710

74567APLATE, E.C.E APPROVED NUMBER

main74567-27111iCDT220199908-200007

74571AFILM, LABEL COVER

main74571-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

74596ALABEL, SIDE AIRBAG CAUTION

main74596-12011×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

88723HLABEL, COOLER SERVICE CAUTION

main88723-20040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

11 parts on this diagram · 1 diagram in section
