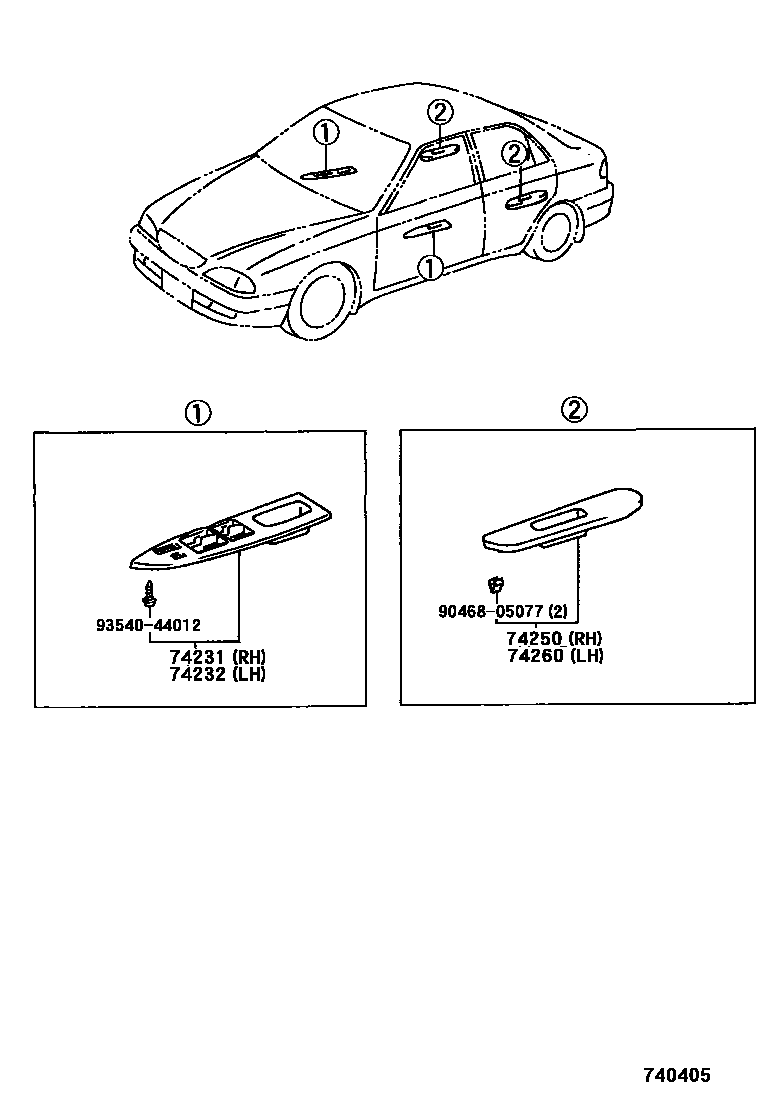

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-05030-B0iAT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD199901-200007

MD. GRAY,TRIM1#

main74231-05030-B1iAZT220,CDT220,ZZT22#..RHD..TERRA200007

DK.GRAY,TRIM1#

main74231-05030-G0iAT22#,CT220..RHD..TERRA199710-199901

SLATE GREEN,TRIM6#

main74231-05040-B0iAT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD199901-200007

W(POWER WINDOW---FRONT & REAR),MD. GRAY,TRIM1#

main74231-05040-G0iAT22#,CT220..RHD..TERRA199710-199901

W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#

main74231-05050-B0iST220..LHD;AT22#,CDT220,CT220..LHD..TERRA199904-200007

MD. GRAY,TRIM1#

main74231-05050-B1iST220..SED..MTM;AZT220,CDT220,ZZT22#..LHD..TERRA200007

DK.GRAY,TRIM1#

main74231-05050-G0iST220..LHD;AT22#,CDT220,CT220..LHD..TERRA199904-200007

SLATE GREEN,TRIM6#

main74231-05060-B0iAT22#,CDT220,CT220,ST220..RHD199710-200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),MD. GRAY,TRIM1#

main74231-05060-G0iAT22#,CDT220,CT220,ST220..RHD199710-200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#

main74231-05070-B0iAT22#,CDT220,CT220,ST220..LHD199710-200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),MD. GRAY,TRIM1#

main74231-05070-G0iAT22#,CDT220,CT220,ST220..LHD199710-200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#

main74231-05080-B0iAZT220,CDT220,ZZT22#..RHD200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#

main74231-05080-G0iAZT220,CDT220,ZZT22#..RHD200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#

main74231-05090-B0iAZT220,CDT220,ST220,ZZT22#..LHD200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#

main74231-05090-G0iAZT220,CDT220,ST220,ZZT22#..LHD200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#

main74231-05100-B0iAZT220,CDT220,ZZT22#..RHD200107

W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#

main74231-05100-G0iAZT220,CDT220,ZZT22#..RHD200107

W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#

main74231-05110-B0iST220..SED..MTM;AZT220,CDT220,ZZT22#..LHD..TERRA200007

W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#

main74231-05110-G0iST220..SED..MTM;AZT220,CDT220,ZZT22#..LHD..TERRA200007

W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-05050-B0iAT22#,CDT220,CT220..LHD..TERRA199710-200007

MD. GRAY,TRIM1#

main74232-05050-B1iAZT220,CDT220,ZZT22#..LHD..TERRA200007

DK.GRAY,TRIM1#

main74232-05050-G0iAT22#,AZT220,CDT220,CT220,ZZT22#..LHD..TERRA199710

SLATE GREEN,TRIM6#

main74232-05060-B0iAT22#,CT220..LHD..TERRA199710-199904

W(POWER WINDOW---FRONT & REAR),MD. GRAY,TRIM1#

main74232-05060-G0iAT22#,CT220..LHD..TERRA199710-199904

W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#

main74232-05070-B0iAT22#,CT220..RHD..TERRA199710-199901

MD. GRAY,TRIM1#

main74232-05070-B1iAZT220,CDT220,ZZT22#..RHD..TERRA200007

DK.GRAY,TRIM1#

main74232-05070-G0iAT220,CT220,ST220,ZZT220..RHD;AT221,AZT220,CDT220,ZZT221..RHD..TERRA199901

SLATE GREEN,TRIM6#

main74232-05080-B0iAT22#,CDT220,CT220,ST220..RHD199710-200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),MD. GRAY,TRIM1#

main74232-05080-G0iAT22#,CDT220,CT220,ST220..RHD199710-200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#

main74232-05090-B0iAT22#,CDT220,CT220,ST220..LHD199710-200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),MD. GRAY,TRIM1#

main74232-05090-G0iAT22#,CDT220,CT220,ST220..LHD199710-200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#

main74232-05100-B0iAZT220,CDT220,ZZT22#..RHD200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#

main74232-05100-G0iAZT220,CDT220,ZZT22#..RHD200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#

main74232-05110-B0iAZT220,CDT220,ST220,ZZT22#..LHD200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#

main74232-05110-G0iAZT220,CDT220,ST220,ZZT22#..LHD200007

WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#

main74232-05120-B0iAZT220,CDT220,ZZT22#..RHD..TERRA200007

W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#

main74232-05120-G0iAZT220,CDT220,ZZT221..RHD..SOL200107

SLATE GREEN,TRIM6#

main74232-05130-B0iST220..SED..MTM;AZT220,CDT220,ZZT22#..LHD..TERRA200007-200107

W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#

main74232-05130-G0iST220..SED..MTM;AZT220,CDT220,ZZT22#..LHD..TERRA200007-200107

W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#

74250ARMREST ASSY, REAR RH

main74250-05020-B0iAT22#,CDT220,CT220..TERRA199710-200007

MD.GRAY,TRIM1#

main74250-05020-B1iST220..SED..MTM;AZT220,CDT220,ZZT22#..TERRA200007

DK.GRAY,TRIM1#

main74250-05020-G0iST220..SED..MTM;AZT220,CDT220,ZZT22#..TERRA200007

SLATE GREEN,TRIM6#

main74250-05030-B0iAT22#,CDT220,CT220,ST220199710-200007

W(POWER WINDOW---FRONT & REAR),MD.GRAY,TRIM1#

main74250-05030-B1iAZT220,CDT220,ST220,ZZT22#200007

W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#

main74250-05030-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#

74260ARMREST ASSY, REAR LH

main74260-05020-B0iAT22#,CDT220,CT220..TERRA199710-200007

MD.GRAY,TRIM1#

main74260-05020-B1iST220..SED..MTM;AZT220,CDT220,ZZT22#..TERRA200007

DK.GRAY,TRIM1#

main74260-05020-G0iST220..SED..MTM;AZT220,CDT220,ZZT22#..TERRA200007

SLATE GREEN,TRIM6#

main74260-05030-B0iAT22#,CDT220,CT220,ST220199710-200007

W(POWER WINDOW---FRONT & REAR),MD.GRAY,TRIM1#

main74260-05030-B1iAZT220,CDT220,ST220,ZZT22#200007

W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#

main74260-05030-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#

9046805077

main90468-05077

9354044012

main93540-44012

6 parts on this diagram · 2 diagrams in section
