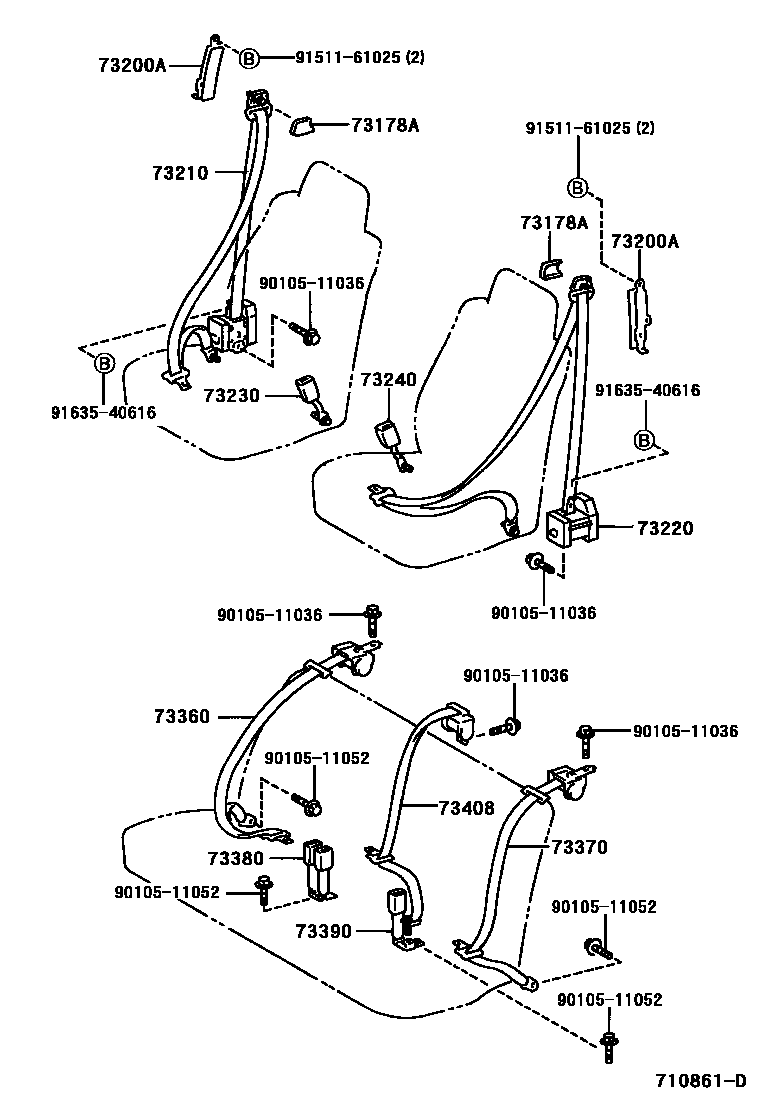

SEAT BELT & CHILD RESTRAINT SEAT

73178ACAP, SEAT BELT ANCHOR COVER

main73178-05020-B0iAT22#,CDT220,CT220,ST220199710-200007

LT.GRAY,TRIM1#

main73178-05020-G0iAT22#,CDT220,CT220,ST220199710-200007

LT.GREEN,TRIM6#

main73178-05030-B0iAZT220,CDT220,ST220,ZZT22#200007

LT.GRAY,TRIM1#

main73178-05030-G0iAZT220,CDT220,ST220,ZZT22#200007

LT.GREEN,TRIM6#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-05020-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

LT.GRAY,TRIM1#

main73200-05020-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

LT.GREEN,TRIM6#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-05030-C0iAT22#,CDT220,CT220,ST220199710-200007

BLACK,TRIM1#

main73210-05030-C1iAT22#,CDT220,CT220,ST220199710-200007

BLACK,TRIM6#

main73210-05031-C0iAZT220,CDT220,ST220,ZZT22#200007

BLACK,TRIM1#

main73210-05031-C1iAZT220,CDT220,ST220,ZZT22#200007

BLACK,TRIM6#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-05030-C0iAT22#,CDT220,CT220,ST220199710-200007

BLACK,TRIM1#

main73220-05030-C1iAT22#,CDT220,CT220,ST220199710-200007

BLACK,TRIM6#

main73220-05031-C0iAZT220,CDT220,ST220,ZZT22#200007

BLACK,TRIM1#

main73220-05031-C1iAZT220,CDT220,ST220,ZZT22#200007

BLACK,TRIM6#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-05030-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

BLACK,TRIM1#,6#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-05030-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

BLACK,TRIM1#,6#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-05070-C0iAT22#,CT220,ST220..SED199710-199711

BLACK,TRIM1#,6#

sub73360-05071

main73360-05071-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199711

BLACK,TRIM1#,6#

main73360-05080-C0iAT22#,CT220,ST220..LB,WG199710-199711

BLACK,TRIM1#,6#

sub73360-05081

main73360-05081-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG199711

BLACK,TRIM1#,6#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73360-05070-C0iAT22#,CT220,ST220..SED199710-199711

BLACK,TRIM1#,6#

sub73360-05071

main73360-05071-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199711

BLACK,TRIM1#,6#

main73370-05070-C0iAT22#,CT220,ST220..LB,WG199710-199711

BLACK,TRIM1#,6#

sub73370-05071

main73370-05071-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG199711

BLACK,TRIM1#,6#

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73470-05030-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

BLACK,TRIM1#,6#

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73480-05030-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

BLACK,TRIM1#,6#

73408BELT ASSY, REAR SEAT 3 POINT TYPE, CENTER

main73350-05010-C1iAT22#,CT220,ST220199710-199711

BLACK,TRIM1#

sub73350-05011

main73350-05010-C2iAT22#,CT220,ST220199710-199711

BLACK,TRIM6#

sub73350-05011

main73350-05011-C1iAT22#,CDT220,CT220,ST220199711-200007

BLACK,TRIM1#

main73350-05011-C2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199711

BLACK,TRIM6#

main73350-05011-C3iAZT220,CDT220,ST220,ZZT22#200007

BLACK,TRIM1#

9010511036

main90105-11036

9010511052

main90105-11052

9151161025

main91511-61025

9163540616

main91635-40616

15 parts on this diagram · 1 diagram in section
