EPC Data

REAR DOOR PANEL & GLASS

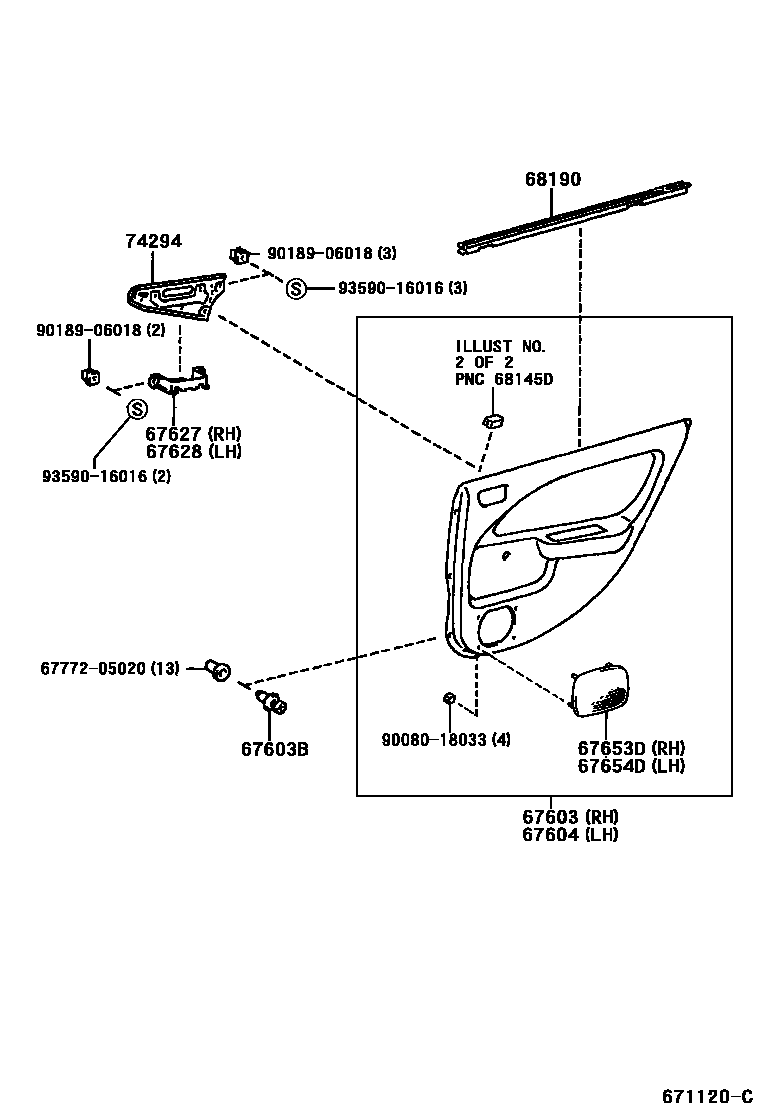

Parts diagram
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67010-05010-B0i199901-200007
W(POWER WINDOW---FRONT ONLY) & W(SPEAKER) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1#
main67010-05020-B0i199901-200007
W(POWER WINDOW---FRONT & REAR) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1#
main67010-05030-B0i199901-200007
W(POWER WINDOW---FRONT & REAR) & W(SPEAKER) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1#
main67010-05040-B1i199810-200007
TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1#
main67010-05040-G0i199810-200007
TRIM = TYPE C-*104,SLATE GREEN,TRIM6#
main67010-05050-B1i199810-200007
W(SPEAKER) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1#
main67010-05050-B2i200007-200107
TRIM = TYPE C-*104,DARK GRAY,TRIM1#
main67010-05050-G0i199810-200007
W(SPEAKER) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6#
main67010-05060-B1i199810-200007
W(POWER WINDOW) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1#
main67010-05060-G0i199810-200007
W(POWER WINDOW) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6#
main67010-05070-B1i199810-200007
W(POWER WINDOW & SPEAKER) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1#
main67010-05070-B2i200007-200107
W(POWER WINDOW) & TRIM = TYPE C-*104,DARK GRAY,TRIM1#
main67010-05070-G0i199810-200007
W(POWER WINDOW & SPEAKER) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6#
main67010-05080-B0i200007-200203
DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#
sub67010-05220
main67010-05080-G0i200007-200203
DOOR TRIM=TYPE B-*104,SLATE GREEN,TRIM6#
sub67010-05220
main67010-05081-B2i200012-200203
TRIM = TYPE B OR TYPE C-*104,DK. GRAY,TRIM1#
sub67010-05082
main67010-05081-G1i200012-200203
TRIM = TYPE B OR TYPE C-*104,SLATE GREEN,TRIM6#
sub67010-05082
main67010-05082-B2i200203-200301
DOOR TRIM=TYPE B-*104,DK. GRAY,TRIM1#
main67010-05082-G1i200203-200301
DOOR TRIM=TYPE B-*104,SLATE GREEN,TRIM6#
main67010-05090-B0i200007-200203
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#
sub67010-05230
main67010-05090-G0i200007-200203
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
sub67010-05230
main67010-05091-B2i200012-200203
TRIM = TYPE B OR TYPE C-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
sub67010-05092
main67010-05091-G1i200012-200203
TRIM = TYPE B OR TYPE C-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
sub67010-05092
main67010-05092-B2i200203-200301
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
main67010-05092-G1i200203-200301
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
main67010-05100-B0i200007-200203
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#
sub67010-05240
main67010-05100-G0i200007-200203
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
sub67010-05240
main67010-05101-B1i200012-200203
TRIM = TYPE A-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
sub67010-05102
main67010-05101-G1i200012-200203
TRIM = TYPE A-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
sub67010-05102
main67010-05102-B1i200203-200301
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
main67010-05102-G1i200203-200301
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
main67010-05110-B0i200107-200301
TRIM = TYPE E-*104,DK.GRAY,TRIM1#
main67010-05111-B0i200012-200301
TRIM = TYPE E-*104,DK. GRAY,TRIM1#
main67010-05120-B0i200107-200301
W(POWER WINDOW) & TRIM = TYPE E-*104,DK.GRAY,TRIM1#
main67010-05121-B0i200012-200301
TRIM = TYPE E-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
main67010-05190-B0i200107-200203
DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#
sub67010-05191
main67010-05190-G0i200107-200203
DOOR TRIM=TYPE A-*104,SLATE GREEN,TRIM6#
sub67010-05191
main67010-05191-B0i200203-200301
DOOR TRIM=TYPE A-*104,DK. GRAY,TRIM1#
main67010-05191-G0i200203-200301
DOOR TRIM=TYPE A-*104,SLATE GREEN,TRIM6#
main67010-05200-B0i200107-200301
TRIM = TYPE D-*104,DK.GRAY,TRIM1#
main67010-05220-B0i200203-200301
DOOR TRIM=TYPE B-*104,DK. GRAY,TRIM1#
main67010-05220-G0i200203-200301
DOOR TRIM=TYPE B-*104,SLATE GREEN,TRIM6#
main67010-05230-B0i200203-200301
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
main67010-05230-G0i200203-200301
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
main67010-05240-B0i200203-200301
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
main67010-05240-G0i200203-200301
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
main67630-05730-B0i199710-199810
TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1#
main67630-05730-G0i199710-199810
TRIM = TYPE E-*104,GREEN,TRIM6#
main67630-05740-B0i199710-199810
W(SPEAKER) & TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1#
main67630-05740-G0i199710-199810
W(SPEAKER) & TRIM = TYPE E-*104,GREEN,TRIM6#
main67630-05750-B0i199710-199810
W(POWER WINDOW) & TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1#
main67630-05750-G0i199710-199810
W(POWER WINDOW) & TRIM = TYPE E-*104,GREEN,TRIM6#
main67630-05760-B0i199710-199810
W(POWER WINDOW & SPEAKER) & TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1#
main67630-05760-G0i199710-199810
W(POWER WINDOW & SPEAKER) & TRIM = TYPE E-*104,GREEN,TRIM6#
main67630-05770-B0i199710-200007
W(POWER WINDOW) & TRIM = TYPE A-*104,MEDIUM GRAY,TRIM1#
main67630-05770-G0i199710-200007
W(POWER WINDOW) & TRIM = TYPE A-*104,GREEN,TRIM6#
main67630-05780-B0i199710-200007
W(POWER WINDOW & SPEAKER) & TRIM = TYPE A-*104,MEDIUM GRAY,TRIM1#
main67630-05780-G0i199710-200007
W(POWER WINDOW & SPEAKER) & TRIM = TYPE A-*104,GREEN,TRIM6#
main67630-05790-B0i199710-200007
W(POWER WINDOW) & TRIM = TYPE B-*104,MEDIUM GRAY,TRIM1#
main67630-05800-B0i199710-200007
W(POWER WINDOW & SPEAKER) & TRIM = TYPE B-*104,MEDIUM GRAY,TRIM1#
main67630-05800-B1i200007-200301
W(POWER WINDOW) & TRIM = TYPE D-*104,DARK GRAY,TRIM1#
main67630-05801-B2i200012-200301
TRIM = TYPE D-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
main67630-05890-B0i199901-200007
W(POWER WINDOW---FRONT ONLY) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1#
67603BCLIP(FOR REAR DOOR TRIM BOARD)
main90080-46230-B0i199710-200007
MD.GRAY,TRIM1#
sub90467-07192¥130
main90080-46230-B1i200007
DK.GRAY,TRIM1#
sub90467-07192¥130
main90080-46230-G0i199710
SLATE GREEN,TRIM6#
sub90467-07192¥130
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67020-05010-B0i199901-200007
W(POWER WINDOW---FRONT ONLY) & W(SPEAKER) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1#
main67020-05020-B0i199901-200007
W(POWER WINDOW---FRONT & REAR) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1#
main67020-05030-B0i199901-200007
W(POWER WINDOW---FRONT & REAR) & W(SPEAKER) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1#
main67020-05040-B1i199810-200007
TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1#
main67020-05040-G0i199810-200007
TRIM = TYPE C-*104,SLATE GREEN,TRIM6#
main67020-05050-B1i199810-200007
W(SPEAKER) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1#
main67020-05050-B2i200007-200107
TRIM = TYPE C-*104,DARK GRAY,TRIM1#
main67020-05050-G0i199810-200007
W(SPEAKER) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6#
main67020-05060-B1i199810-200007
W(POWER WINDOW) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1#
main67020-05060-G0i199810-200007
W(POWER WINDOW) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6#
main67020-05070-B1i199810-200007
W(POWER WINDOW & SPEAKER) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1#
main67020-05070-B2i200007-200107
W(POWER WINDOW) & TRIM = TYPE C-*104,DARK GRAY,TRIM1#
main67020-05070-G0i199810-200007
W(POWER WINDOW & SPEAKER) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6#
main67020-05080-B0i200007-200203
DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#
sub67020-05210
main67020-05080-G0i200007-200203
DOOR TRIM=TYPE B-*104,SLATE GREEN,TRIM6#
sub67020-05210
main67020-05081-B2i200012-200203
TRIM = TYPE B OR TYPE C-*104,DK. GRAY,TRIM1#
sub67020-05082
main67020-05081-G1i200012-200203
TRIM = TYPE B OR TYPE C-*104,SLATE GREEN,TRIM6#
sub67020-05082
main67020-05082-B2i200203-200301
DOOR TRIM=TYPE B-*104,DK. GRAY,TRIM1#
main67020-05082-G1i200203-200301
DOOR TRIM=TYPE B-*104,SLATE GREEN,TRIM6#
main67020-05090-B0i200007-200203
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#
sub67020-05220
main67020-05090-G0i200007-200203
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
sub67020-05220
main67020-05091-B2i200012-200203
TRIM = TYPE B OR TYPE C-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
sub67020-05092
main67020-05091-G1i200012-200203
TRIM = TYPE B OR TYPE C-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
sub67020-05092
main67020-05092-B2i200203-200301
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
main67020-05092-G1i200203-200301
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
main67020-05100-B0i200007-200203
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#
sub67020-05230
main67020-05100-G0i200007-200203
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
sub67020-05230
main67020-05101-B1i200012-200203
TRIM = TYPE A-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
sub67020-05102
main67020-05101-G1i200012-200203
TRIM = TYPE A-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
sub67020-05102
main67020-05102-B1i200203-200301
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
main67020-05102-G1i200203-200301
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
main67020-05110-B0i200107-200301
TRIM = TYPE E-*104,DK.GRAY,TRIM1#
main67020-05111-B0i200012-200301
TRIM = TYPE E-*104,DK. GRAY,TRIM1#
main67020-05120-B0i200107-200301
W(POWER WINDOW) & TRIM = TYPE E-*104,DK.GRAY,TRIM1#
main67020-05121-B0i200012-200301
TRIM = TYPE E-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
main67020-05180-B0i200107-200203
DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#
sub67020-05181
main67020-05180-G0i200107-200203
DOOR TRIM=TYPE A-*104,SLATE GREEN,TRIM6#
sub67020-05181
main67020-05181-B0i200203-200301
DOOR TRIM=TYPE A-*104,DK. GRAY,TRIM1#
main67020-05181-G0i200203-200301
DOOR TRIM=TYPE A-*104,SLATE GREEN,TRIM6#
main67020-05190-B0i200107-200301
TRIM = TYPE D-*104,DK.GRAY,TRIM1#
main67020-05210-B0i200203-200301
DOOR TRIM=TYPE B-*104,DK. GRAY,TRIM1#
main67020-05210-G0i200203-200301
DOOR TRIM=TYPE B-*104,SLATE GREEN,TRIM6#
main67020-05220-B0i200203-200301
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
main67020-05220-G0i200203-200301
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
main67020-05230-B0i200203-200301
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
main67020-05230-G0i200203-200301
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SLATE GREEN,TRIM6#
main67640-05730-B0i199710-199810
TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1#
main67640-05730-G0i199710-199810
TRIM = TYPE E-*104,GREEN,TRIM6#
main67640-05740-B0i199710-199810
W(SPEAKER) & TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1#
main67640-05740-G0i199710-199810
W(SPEAKER) & TRIM = TYPE E-*104,GREEN,TRIM6#
main67640-05750-B0i199710-199810
W(POWER WINDOW) & TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1#
main67640-05750-G0i199710-199810
W(POWER WINDOW) & TRIM = TYPE E-*104,GREEN,TRIM6#
main67640-05760-B0i199710-199810
W(POWER WINDOW & SPEAKER) & TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1#
main67640-05760-G0i199710-199810
W(POWER WINDOW & SPEAKER) & TRIM = TYPE E-*104,GREEN,TRIM6#
main67640-05770-B0i199710-200007
W(POWER WINDOW) & TRIM = TYPE A-*104,MEDIUM GRAY,TRIM1#
main67640-05770-G0i199710-200007
W(POWER WINDOW) & TRIM = TYPE A-*104,GREEN,TRIM6#
main67640-05780-B0i199710-200007
W(POWER WINDOW & SPEAKER) & TRIM = TYPE A-*104,MEDIUM GRAY,TRIM1#
main67640-05780-G0i199710-200007
W(POWER WINDOW & SPEAKER) & TRIM = TYPE A-*104,GREEN,TRIM6#
main67640-05790-B0i199710-200007
W(POWER WINDOW) & TRIM = TYPE B-*104,MEDIUM GRAY,TRIM1#
main67640-05800-B0i199710-200007
W(POWER WINDOW & SPEAKER) & TRIM = TYPE B-*104,MEDIUM GRAY,TRIM1#
main67640-05800-B1i200007-200301
W(POWER WINDOW) & TRIM = TYPE D-*104,DARK GRAY,TRIM1#
main67640-05801-B2i200012-200301
TRIM = TYPE D-*104 & W(POWER WINDOW),DK. GRAY,TRIM1#
main67640-05890-B0i199901-200007
W(POWER WINDOW---FRONT ONLY) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1#
67627BRACKET, REAR DOOR TRIM, RH
main67628-05010i¥880199710
67628BRACKET, REAR DOOR TRIM, LH
main67628-05010i¥880199710
67653DGRILLE SUB-ASSY, REAR DOOR SPEAKER, RH
main67653-05010-B0i199710-200007
MD.GRAY,TRIM1#
main67653-05010-B1i200007-200301
DK.GRAY,TRIM1#
main67653-05010-G0i199710-200301
SLATE GREEN,TRIM6#
67654DGRILLE SUB-ASSY, REAR DOOR SPEAKER, LH
main67654-05010-B0i199710-200007
MD.GRAY,TRIM1#
main67654-05010-B1i200007-200301
DK.GRAY,TRIM1#
main67654-05010-G0i199710-200301
SLATE GREEN,TRIM6#
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
main68173-20130i¥4,590199710
(J),RH
main68173-20140i¥4,590199710
(J),RH
main68174-20080i¥4,590199710
(J),LH
main68174-20090i¥4,590199710
(J),LH
74294PLATE, REAR DOOR ARMREST, NO.2
main74295-05010i¥2,110199710-200007
RH
sub74295-05011
main74295-05011i200007
RH
main74296-05010i¥2,110199710-200007
LH
sub74296-05011
main74296-05011i200007
LH
6777205020WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-05020¥240
9008018033
main90080-18033¥110
9018906018
main90189-06018¥80
9359016016
main93590-16016¥120

13 parts on this diagram · 3 diagrams in section

REAR DOOR PANEL & GLASS — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
