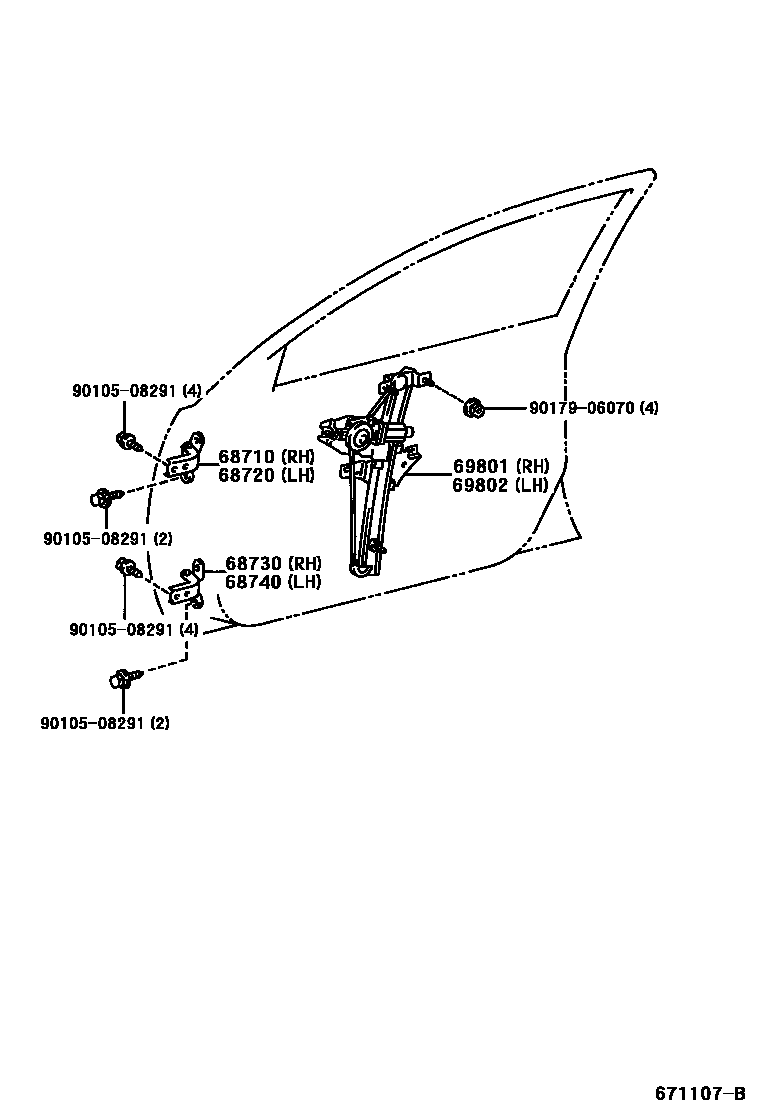

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-05010iAT22#,CT220,ST220199710-199809

sub68710-12150

main68710-12150iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199809

sub68710-12151

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-05010iAT22#,CT220,ST220199710-199809

sub68720-12150

main68720-12150iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199809

sub68720-12151

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-05010iAT22#,CT220,ST220199710-199809

sub68730-12110

main68730-12110iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199809

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-05010iAT22#,CT220,ST220199710-199809

sub68740-12110

main68740-12110iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199809

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710-200205

sub69810-05031

main69810-05031iAZT220,CDT220,ST220,ZZT22#..LHD200205-200301

main69810-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710-200205

sub69810-05041

main69810-05041iAZT220,CDT220,ZZT22#..RHD200205-200301

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710-200205

sub69820-05031

main69820-05031iAZT220,CDT220,ZZT22#..RHD200205-200301

main69820-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710-200205

sub69820-05041

main69820-05041iAZT220,CDT220,ST220,ZZT22#..LHD200205-200301

9010508291

main90105-08291

9017906070

main90179-06070

8 parts on this diagram · 1 diagram in section
