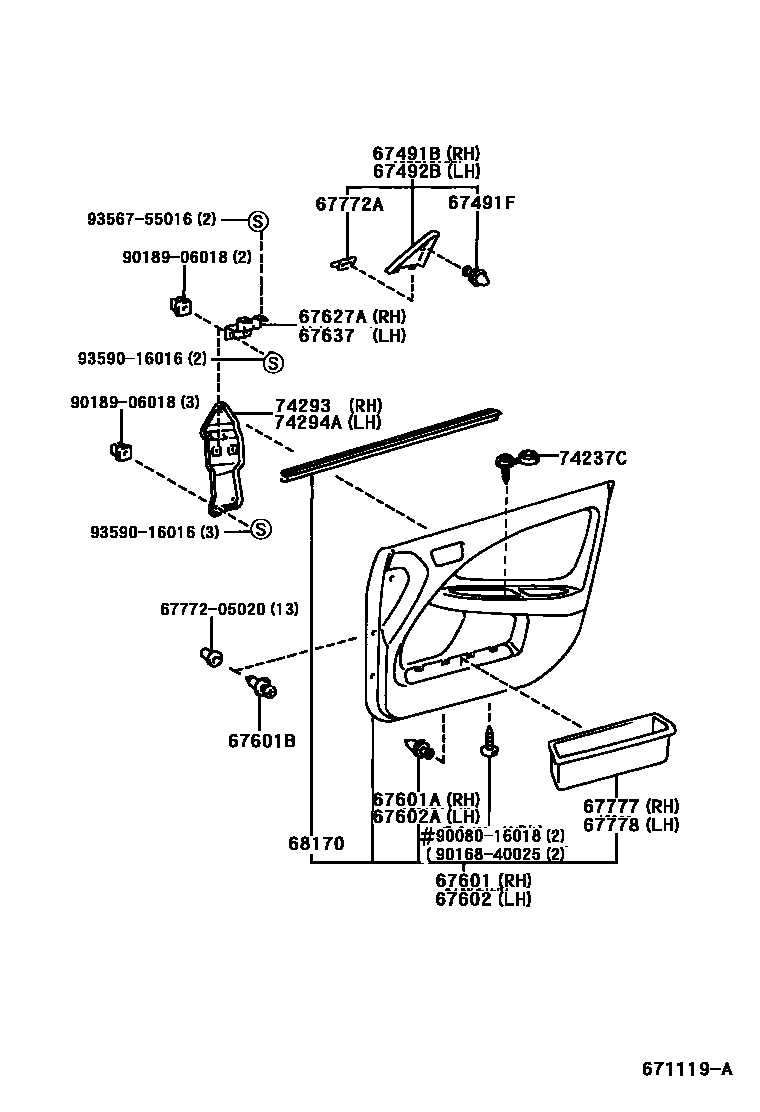

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67491BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH

main67491-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

main67491-05050iAZT220,CDT220,ST220,ZZT22#200007

W(6 SPEAKER)

67491FCLIP(FOR DOOR TRIM)

main67771-30070×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

67492BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH

main67492-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

main67492-05050iAZT220,CDT220,ST220,ZZT22#200007

W(6 SPEAKER)

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-05290-B0iAT22#,CT220..TERRA199710-199810

TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1#

main67610-05290-G0iAT22#,CT220..TERRA199710-199810

TRIM = TYPE E-*104,GREEN,TRIM6#

main67610-05300-B0iAT22#,CDT220,CT220,ST220..SOL199710-200007

TRIM = TYPE A-*104,MEDIUM GRAY,TRIM1#

main67610-05300-G0iAT22#,CDT220,CT220,ST220..SOL199710-200007

TRIM = TYPE A-*104,GREEN,TRIM6#

main67610-05310-B0iAT22#,CDT220,CT220,ST220..SOL199710-200007

TRIM = TYPE B-*104,MEDIUM GRAY,TRIM1#

main67610-05310-B1iAZT220,CDT220,ST220,ZZT22#..SOL200007-200301

TRIM = TYPE D-*104,DARK GRAY,TRIM1#

main67610-05340-B0iST220..RHD;AT22#,CDT220,CT220..TERRA199901-200007

TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1#

main67610-05350-B1iAT22#,CDT220,CT220..TERRA199810-200007

TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1#

main67610-05350-B2iAZT220,CDT220,ZZT22#..RHD..TERRA200007-200107

TRIM = TYPE C-*104,DARK GRAY,TRIM1#

main67610-05350-G0iAT22#,CDT220,CT220..TERRA199810-200007

TRIM = TYPE C-*104,LT.GREEN,TRIM6#

main67610-05360-B0iST220..SED..MTM;AZT220,CDT220,ZZT22#..TERRA200007-200203

DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#

main67610-05360-G0iST220..SED..MTM;AZT220,CDT220,ZZT22#..TERRA200007-200203

DOOR TRIM=TYPE B-*104,SLATE GREEN,TRIM6#

main67610-05361-B2iAZT220,CDT220,ZZT22#..TERRA200203-200301

DOOR TRIM=TYPE B-*104,DK. GRAY,TRIM1#

main67610-05361-G1iST220..SED..MTM;AZT220,CDT220,ZZT22#..TERRA200203-200301

DOOR TRIM=TYPE B-*104,SLATE GREEN,TRIM6#

main67610-05370-B0iAZT220..ATM200010-200203

TRIM = TYPE A-*104,DARK GRAY,TRIM1#

main67610-05370-G0iAZT220..ATM200010-200203

TRIM = TYPE A-*104,SLATE GREEN,TRIM6#

main67610-05371-B1iAZT220,CDT220,ST220,ZZT22#..SOL200203-200301

DOOR TRIM=TYPE A-*104,DK. GRAY,TRIM1#

main67610-05371-G1iAZT220,CDT220,ST220,ZZT22#..SOL200203-200301

DOOR TRIM=TYPE A-*104,SLATE GREEN,TRIM6#

main67610-05380-B0iAZT220,CDT220,ZZT22#..(LB,WG)..TERRA200012-200107

DOOR TRIM=TYPE E-*104,DK.GRAY,TRIM1#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-20110×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200107

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90080-46230-B0×13iAT22#,CDT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

sub90467-07192

main90080-46230-B1×13iAZT220,CDT220,ST220,ZZT22#200007

DK.GRAY,TRIM1#

sub90467-07192

main90080-46230-G0×13iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

SLATE GREEN,TRIM6#

sub90467-07192

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-05290-B0iAT22#,CT220..TERRA199710-199810

TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1#

main67620-05290-G0iAT22#,CT220..TERRA199710-199810

TRIM = TYPE E-*104,GREEN,TRIM6#

main67620-05300-B0iAT22#,CDT220,CT220,ST220..SOL199710-200007

TRIM = TYPE A-*104,MEDIUM GRAY,TRIM1#

main67620-05300-G0iAT22#,CDT220,CT220,ST220..SOL199710-200007

TRIM = TYPE A-*104,GREEN,TRIM6#

main67620-05310-B0iAT22#,CDT220,CT220,ST220..SOL199710-200007

TRIM = TYPE B-*104,MEDIUM GRAY,TRIM1#

main67620-05310-B1iAZT220,CDT220,ST220,ZZT22#..SOL200007-200301

TRIM = TYPE D-*104,DARK GRAY,TRIM1#

main67620-05340-B0iST220..RHD;AT22#,CDT220,CT220..TERRA199901-200007

TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1#

main67620-05350-B1iAT22#,CDT220,CT220..TERRA199810-200007

TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1#

main67620-05350-B2iAZT220,CDT220,ZZT22#..RHD..TERRA200007-200107

TRIM = TYPE C-*104,DARK GRAY,TRIM1#

main67620-05350-G0iST220..LHD199904-200007

W(POWER WINDOW) & TRIM = TYPE C-*104,LT.GREEN,TRIM6#

main67620-05360-B0iST220..SED..MTM;AZT220,CDT220,ZZT22#..TERRA200007-200203

DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#

main67620-05360-G0iST220..SED..MTM;AZT220,CDT220,ZZT22#..TERRA200007-200203

DOOR TRIM=TYPE B-*104,SLATE GREEN,TRIM6#

main67620-05361-B2iST220..SED..MTM;AZT220,CDT220,ZZT22#..TERRA200203-200301

DOOR TRIM=TYPE B-*104,DK. GRAY,TRIM1#

main67620-05361-G1iST220..SED..MTM;AZT220,CDT220,ZZT22#..TERRA200203-200301

DOOR TRIM=TYPE B-*104,SLATE GREEN,TRIM6#

main67620-05370-B0iAZT220..ATM200010-200203

TRIM = TYPE A-*104,DARK GRAY,TRIM1#

main67620-05370-G0iAZT220..ATM200010-200203

TRIM = TYPE A-*104,SLATE GREEN,TRIM6#

main67620-05371-B1iAZT220,CDT220,ST220,ZZT22#..SOL200203-200301

DOOR TRIM=TYPE A-*104,DK. GRAY,TRIM1#

main67620-05371-G1iAZT220,CDT220,ST220,ZZT22#..SOL200203-200301

DOOR TRIM=TYPE A-*104,SLATE GREEN,TRIM6#

main67620-05380-B0iAZT220,CDT220,ZZT22#..TERRA200107-200301

DOOR TRIM=TYPE E-*104,DK.GRAY,TRIM1#

67602ARETAINER, DOOR TRIM, LH

main67771-20110×2iAZT220,ST220..SOL;AZT220..SED..TERRA;CDT220,ZZT22#..SED;CDT220,ZZT22#..(LB,WG)..SOL200107-200301

67627ABRACKET, DOOR TRIM, NO.3

main67627-05010iAT22#,CDT220,CT220,ST220199710-200007

main67627-05011iAZT220,CDT220,ST220,ZZT22#200007

67637PLATE, FRONT DOOR TRIM

main67637-05010iAT22#,CDT220,CT220,ST220199710-200007

main67637-05011iAZT220,CDT220,ST220,ZZT22#200007

67772ACAP, FRONT DOOR TRIM RETAINER

main67772-21020×2iAT22#,CT220,ST220199710-200007

67777POCKET, FRONT DOOR TRIM, RH

main67777-05030-B0iAT22#,CDT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main67777-05030-B1iAZT220,CDT220,ST220,ZZT22#200007-200107

DK.GRAY,TRIM1#

main67777-05030-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200107

SLATE GREEN,TRIM6#

67778POCKET, FRONT DOOR TRIM, LH

main67778-05030-B0iAT22#,CDT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main67778-05030-B1iAZT220,ST220..SOL;AZT220..SED..TERRA;CDT220,ZZT22#..SED;CDT220,ZZT22#..(LB,WG)..SOL200107-200301

DK.GRAY,TRIM1#

main67778-05030-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200107

SLATE GREEN,TRIM6#

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-20100iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

(J),RH

main68172-20090iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

(J),LH

74237CCAP, FRONT DOOR ARMREST BASE

main74237-20050-B0×4iAT22#,CT220,ST220199710-199803

MD.GRAY,TRIM1#

main74237-20050-G0×4iAT22#,CT220,ST220199710-199803

SLATE GREEN,TRIM6#

main74237-20060-B0×4iAT22#,CDT220,CT220,ST220199803-200007

MD.GRAY,TRIM1#

main74237-20060-B1×4iAZT220,CDT220,ST220,ZZT22#200007

DK.GRAY,TRIM1#

main74237-20060-G0×4iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199803

SLATE GREEN,TRIM6#

74293PLATE, FRONT DOOR ARMREST, NO.1

main74293-05030iAT22#,CDT220,CT220,ST220199710-200007

main74293-05031iAZT220,CDT220,ST220,ZZT22#200007

74294APLATE, FRONT DOOR ARMREST, NO.2

main74294-05010iAT22#,CDT220,CT220,ST220199710-200007

main74294-05011iAZT220,CDT220,ST220,ZZT22#200007

6777205020WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-05020

9008016018

main90080-16018

9016840025

main90168-40025

9018906018

main90189-06018

9356755016

main93567-55016

9359016016

main93590-16016

23 parts on this diagram · 4 diagrams in section
