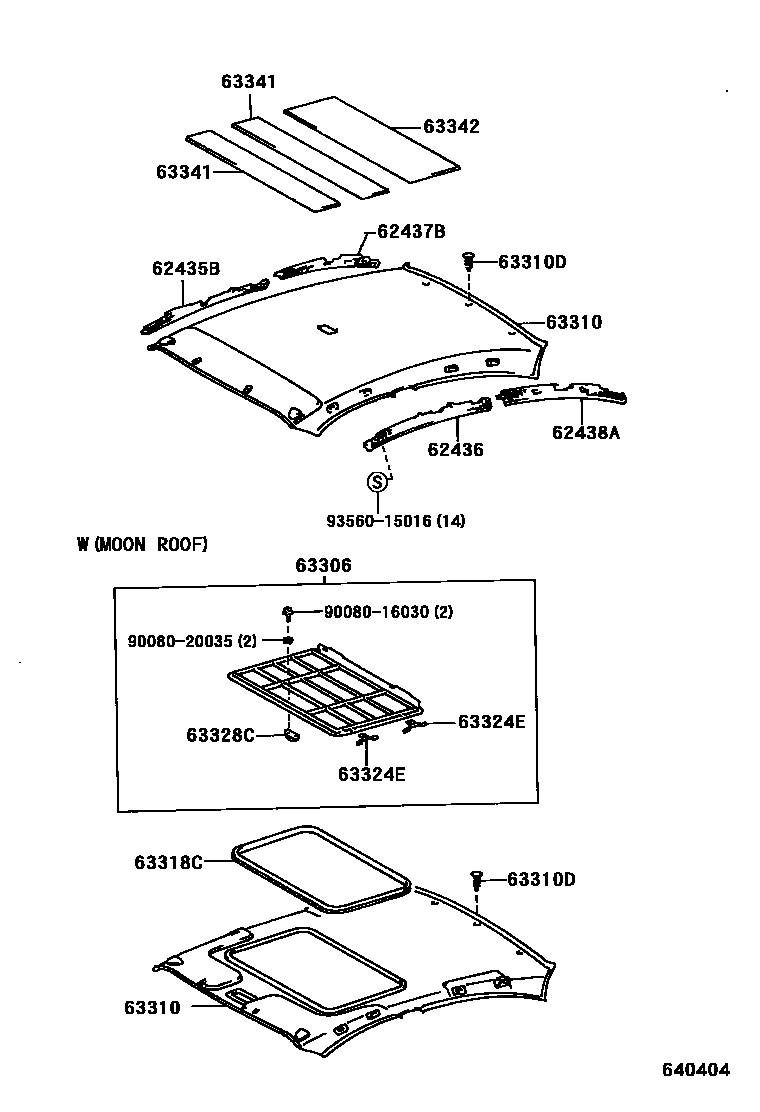

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

62435BPAD, ROOF SIDE RAIL, FRONT RH

main62435-05010iAT22#,CT220,ST220..LB,SED199710-199905

main62435-05020iAT22#,CT220,ST220..WG199710-199905

main62435-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED199905

main62435-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199905

62436PAD, ROOF SIDE RAIL, FRONT LH

main62436-05010iAT22#,CT220,ST220..LB,SED199710-199905

main62436-05020iAT22#,CT220,ST220..WG199710-199905

main62436-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED199905

main62436-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199905

62437BPAD, ROOF SIDE RAIL, REAR RH

main62437-05010iAT22#,CT220,ST220..SED199710-199905

main62437-05020iAT22#,CT220,ST220..LB199710-199905

main62437-05030iAT22#,CT220,ST220..WG199710-199905

main62437-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199905

W(*80,CURTAIN SHIELD)

main62437-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199905

main62437-05060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199905

main62437-05070iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199905

62438APAD, ROOF SIDE RAIL, REAR LH

main62438-05010iAT22#,CT220,ST220..SED199710-199905

main62438-05020iAT22#,CT220,ST220..LB199710-199905

main62438-05030iAT22#,CT220,ST220..WG199710-199905

sub62438-05070

main62438-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199905

W(*80,CURTAIN SHIELD)

main62438-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199905

main62438-05060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199905

main62438-05070iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199905

63306TRIM SUB-ASSY, SUNSHADE

main63306-0W010-B1iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200301

LT. GRAY,TRIM1#

main63306-0W010-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200301

LT. GREEN,TRIM6#

63310HEADLINING ASSY, ROOF

main63310-05200-B0iAT22#,CT220,ST220..SED199710-199905

LT. GRAY,TRIM1#

sub63310-05280

sub62435-05030

sub62436-05030

sub62437-05050

sub62438-05050

sub63399-05020

sub74610-05050

sub74610-05060

main63310-05200-G0iAT22#,CT220,ST220..SED199710-199905

LT. GREEN,TRIM6#

sub63310-05280

sub62435-05030

sub62436-05030

sub62437-05050

sub62438-05050

sub63399-05020

sub74610-05050

sub74610-05060

main63310-05210-B0iAT22#,CT220,ST220..SED199710-199905

W(MOON ROOF),LT. GRAY,TRIM1#

sub63310-05290

sub62435-05030

sub62436-05030

sub62437-05050

sub62438-05050

sub63399-05020

sub74610-05050

sub74610-05060

main63310-05210-G0iAT22#,CT220,ST220..SED..SOL199710-199905

W(MOON ROOF),LT. GREEN,TRIM6#

sub63310-05290

sub62435-05030

sub62436-05030

sub62437-05050

sub62438-05050

sub63399-05020

sub74610-05050

sub74610-05060

main63310-05230-B0iAT22#,CT220,ST220..LB199710-199905

LT. GRAY,TRIM1#

sub63310-05300

sub62435-05030

sub62436-05030

sub62437-05060

sub62438-05060

sub63399-05020

sub74610-05050

sub74610-05060

main63310-05230-G0iAT22#,CT220,ST220..LB199710-199905

LT. GREEN,TRIM6#

sub63310-05300

sub62435-05030

sub62436-05030

sub62437-05060

sub62438-05060

sub63399-05020

sub74610-05050

sub74610-05060

main63310-05240-B0iAT22#,CT220,ST220..LB199710-199905

W(MOON ROOF),LT. GRAY,TRIM1#

sub63310-05310

sub62435-05030

sub62436-05030

sub62437-05060

sub62438-05060

sub63399-05020

sub74610-05050

sub74610-05060

main63310-05240-G0iAT22#,CT220,ST220..LB..SOL199710-199905

W(MOON ROOF),LT. GREEN,TRIM6#

sub63310-05310

sub62435-05030

sub62436-05030

sub62437-05060

sub62438-05060

sub63399-05020

sub74610-05050

sub74610-05060

main63310-05260-B0iAT22#,CT220,ST220..WG199710-199905

LT. GRAY,TRIM1#

sub63310-05320

sub62435-05040

sub62436-05040

sub62437-05070

sub62438-05070

sub63399-05020

sub74610-05050

sub74610-05060

main63310-05260-G0iAT22#,CT220,ST220..WG199710-199905

LT. GREEN,TRIM6#

sub63310-05320

sub62435-05040

sub62436-05040

sub62437-05070

sub62438-05070

sub63399-05020

sub74610-05050

sub74610-05060

main63310-05270-B0iAT22#,CT220,ST220..WG199710-199905

W(MOON ROOF),LT. GRAY,TRIM1#

sub63310-05330

sub62435-05040

sub62436-05040

sub62437-05070

sub62438-05070

sub63399-05020

sub74610-05050

sub74610-05060

main63310-05270-G0iAT22#,CT220,ST220..WG..SOL199710-199905

W(MOON ROOF),LT. GREEN,TRIM6#

sub63310-05330

sub62435-05040

sub62436-05040

sub62437-05070

sub62438-05070

sub63399-05020

sub74610-05050

sub74610-05060

main63310-05280-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD..SED199905-199912

LT. GRAY,TRIM1#

main63310-05280-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD..SED199905-199912

LT. GREEN,TRIM6#

main63310-05290-B0iAT22#,CDT220,CT220,ST220..SED199905-199912

W(MOON ROOF),LT. GRAY,TRIM1#

main63310-05290-G0iAT22#,CDT220,CT220,ST220..SED199905-199912

W(MOON ROOF),LT. GREEN,TRIM6#

main63310-05300-B0iAT22#,CDT220,CT220,ST220..LB199905-199912

LT. GRAY,TRIM1#

main63310-05300-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD..LB199905-199912

LT. GREEN,TRIM6#

main63310-05310-B0iAT22#,CDT220,CT220,ST220..LB199905-199912

W(MOON ROOF),LT. GRAY,TRIM1#

main63310-05310-G0iAT22#,CDT220,CT220,ST220..LB199905-199912

W(MOON ROOF),LT. GREEN,TRIM6#

main63310-05320-B0iAT22#,CDT220,CT220,ST220..WG199905-199912

LT. GRAY,TRIM1#

main63310-05320-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD..WG199905-199912

LT. GREEN,TRIM6#

main63310-05330-B0iAT22#,CDT220,CT220,ST220..WG199905-199912

W(MOON ROOF),LT. GRAY,TRIM1#

main63310-05330-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD..WG199905-199912

W(MOON ROOF),LT. GREEN,TRIM6#

main63310-05380-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..SED199912

LT. GRAY,TRIM1#

main63310-05380-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..SED199912

LT. GREEN,TRIM6#

main63310-05390-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..SED199912

W(MOON ROOF),LT. GRAY,TRIM1#

main63310-05390-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..SED199912

W(MOON ROOF),LT. GREEN,TRIM6#

main63310-05400-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..LB199912

LT. GRAY,TRIM1#

main63310-05400-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..LB199912

LT. GREEN,TRIM6#

main63310-05410-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..LB199912

W(MOON ROOF),LT. GRAY,TRIM1#

main63310-05410-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..LB199912

W(MOON ROOF),LT. GREEN,TRIM6#

main63310-05420-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..WG199912

LT. GRAY,TRIM1#

main63310-05420-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..WG199912

LT. GREEN,TRIM6#

main63310-05430-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..WG199912

W(MOON ROOF),LT. GRAY,TRIM1#

main63310-05430-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..WG199912

W(MOON ROOF),LT. GREEN,TRIM6#

63310DCLIP, ROOF HEADLINING

main90080-46235-B2iAT221,ST220..SOL;AT220,CT220..LB,WG;AT220,CT220..SED..SOL;AT221..(LB,WG)..TERRA199710-200007

LT.GRAY,TRIM1#

main90080-46235-B2iAT22#,CT220..SED..TERRA199710-200007

LT.GRAY,TRIM13

main90080-46235-G2iCDT220..LB,WG;AT22#,CT220,ST220199710-200007

LT.GREEN,TRIM6#

main90080-46235-G2iCDT220..SED199710-200007

LT.GREEN,TRIM61

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-05010-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

L=2270,LT. GRAY,TRIM1#

main63318-05010-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

L=2270,LT. GREEN,TRIM6#

63324ESPRING, SUNSHADE LOCK

main63324-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200301

63328CKNOB, SUNSHADE TRIM

main63328-0W010-B1iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200301

LT.GRAY,TRIM1#

main63328-0W010-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200301

LT.GREEN,TRIM6#

63341PAD, ROOF SILENCER, NO.1

main63341-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

63342PAD, ROOF SILENCER, NO.2

main63342-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

9008016030

main90080-16030

9008020035

main90080-20035

9356015016

main93560-15016

15 parts on this diagram · 2 diagrams in section
