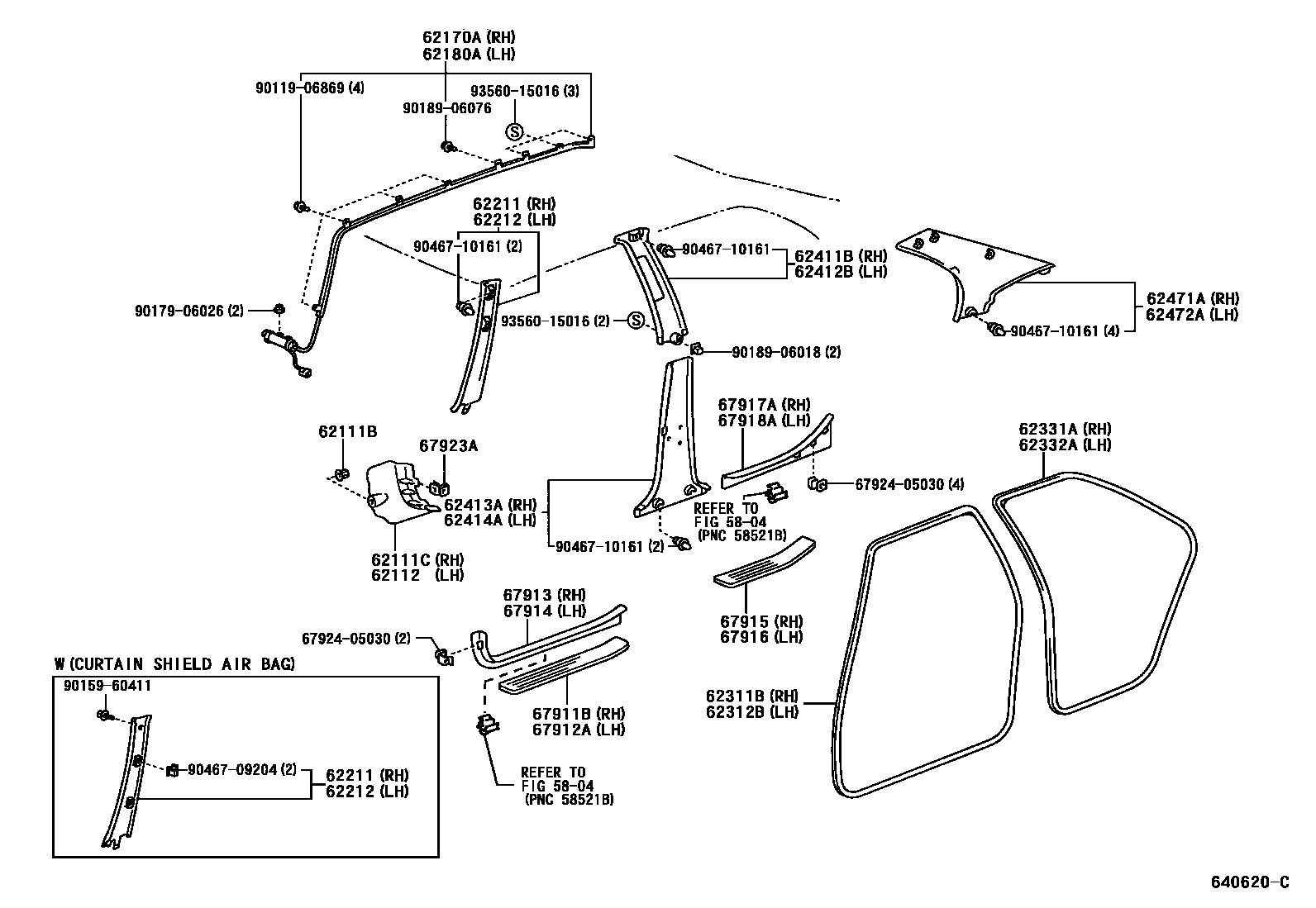

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1

5804

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06094iAT22#,CT220,ST220¥130199710-199801

main90467-06191iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#¥130199904

main90467-10197iAT22#,CT220,ST220¥130199801-199904

62111CBOARD, COWL SIDE TRIM, RH

main62111-05020-B0iAT22#,CDT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main62111-05020-B1iAZT220,CDT220,ST220,ZZT22#200007

DK.GRAY,TRIM1#

main62111-05020-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

SLATE GREEN,TRIM6#

62112BOARD, COWL SIDE TRIM, LH

main62112-05020-B0iAT22#,CDT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main62112-05020-B1iAZT220,CDT220,ST220,ZZT22#200007

DK.GRAY,TRIM1#

main62112-05020-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

SLATE GREEN,TRIM6#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199905

main62170-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199905

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199905

main62180-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199905

62211GARNISH, FRONT PILLAR, RH

main62210-05010-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

LT.GRAY,TRIM1#

main62210-05010-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

LT.GREEN,TRIM6#

main62210-20080-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199905

W(*80, CURTAIN SHIELD),LT.GRAY,TRIM1#

main62210-20080-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199905

W(*80, CURTAIN SHIELD),LT.GREEN,TRIM6#

62212GARNISH, FRONT PILLAR, LH

main62220-05010-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

LT.GRAY,TRIM1#

main62220-05010-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

LT.GREEN,TRIM6#

main62220-20080-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199905

W(*80, CURTAIN SHIELD),LT.GRAY,TRIM1#

main62220-20080-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199905

W(*80, CURTAIN SHIELD),LT.GREEN,TRIM6#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-05020-C0iAT22#,CT220,ST220199710-199901

BLACK,TRIM1#,6#

main62311-05020-C0iAT22#,CT220..LB..TERRA199810-199901

BLACK,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-05020-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

BLACK,TRIM1#,6#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-05040-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710

BLACK,TRIM1#,6#

main62331-05050-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

BLACK,TRIM1#,6#

main62331-05060-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

BLACK,TRIM1#,6#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-05040-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710

BLACK,TRIM1#,6#

main62332-05050-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

BLACK,TRIM1#,6#

main62332-05060-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

BLACK,TRIM1#,6#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-05010-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

LT.GRAY,TRIM1#

main62410-05010-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

LT.GREEN,TRIM6#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-05010-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

LT.GRAY,TRIM1#

main62420-05010-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

LT.GREEN,TRIM6#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-05020-B0iAT22#,CDT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main62413-05020-B1iAZT220,CDT220,ST220,ZZT22#200007

DK.GRAY,TRIM1#

main62413-05020-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

SLATE GREEN,TRIM6#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-05020-B0iAT22#,CDT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main62414-05020-B1iAZT220,CDT220,ST220,ZZT22#200007

DK.GRAY,TRIM1#

main62414-05020-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

SLATE GREEN,TRIM6#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-05020-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

LT.GRAY,TRIM1#

main62470-05020-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

LT.GREEN,TRIM6#

main62470-05030-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

LT.GRAY,TRIM1#

main62470-05030-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

LT.GREEN,TRIM6#

main62471-05030-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710

LT.GRAY,TRIM1#

main62471-05030-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710

LT.GREEN,TRIM6#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-05030-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710

LT.GRAY,TRIM1#

main62472-05030-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710

LT.GREEN,TRIM6#

main62480-05020-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

LT.GRAY,TRIM1#

main62480-05020-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

LT.GREEN,TRIM6#

main62480-05030-B0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

LT.GRAY,TRIM1#

main62480-05030-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

LT.GREEN,TRIM6#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-05020-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

BLACK,TRIM1#,6#

main67911-20060-C0iST220200107

W(LOGO ; AVENSIS),BLACK,TRIM1#,6#

main67911-20060-C0iST220200107

W(LOGO ; AVENSIS),BLACK,TRIM1#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-05020-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

BLACK,TRIM1#,6#

main67912-20060-C0iST220200107

W(LOGO ; AVENSIS),BLACK,TRIM1#,6#

main67912-20060-C0iST220200107

W(LOGO ; AVENSIS),BLACK,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-05020-B0iAT22#,CDT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main67913-05020-B1iAZT220,CDT220,ST220,ZZT22#200007

DK.GRAY,TRIM1#

main67913-05020-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

SLATE GREEN,TRIM6#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-05020-B0iAT22#,CDT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main67914-05020-B1iAZT220,CDT220,ST220,ZZT22#200007

DK.GRAY,TRIM1#

main67914-05020-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

SLATE GREEN,TRIM6#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-05020-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

BLACK,TRIM1#,6#

main67915-20050-C0iST220200107

W(FRONT SCUFF PLATE LOGO ; AVENSIS),BLACK,TRIM1#

main67915-20050-C0iAZT220,CDT220,ZZT22#..TERRA200107

W(FRONT SCUFF PLATE LOGO ; AVENSIS),BLACK,TRIM1#,6#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-05020-C0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

BLACK,TRIM1#,6#

main67916-20050-C0iAZT220,CDT220,ZZT22#..TERRA200107

W(FRONT SCUFF PLATE LOGO ; AVENSIS),BLACK,TRIM1#,6#

main67916-20050-C0iST220200107

W(FRONT SCUFF PLATE LOGO ; AVENSIS),BLACK,TRIM1#

67917APLATE, REAR DOOR SCUFF, RH

main67917-05020-B0iAT22#,CDT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main67917-05020-B1iAZT220,CDT220,ST220,ZZT22#200007

DK.GRAY,TRIM1#

main67917-05020-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

SLATE GREEN,TRIM6#

67918APLATE, REAR DOOR SCUFF, LH

main67918-05020-B0iAT22#,CDT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main67918-05020-B1iAZT220,CDT220,ST220,ZZT22#200007

DK.GRAY,TRIM1#

main67918-05020-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

SLATE GREEN,TRIM6#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#¥120199710

6792405030CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-05030¥120

9011906869

main90119-06869¥60

9015960411

main90159-60411¥100

9017906026

main90179-06026¥70

9018906018

main90189-06018¥80

9018906076

main90189-06076¥80

9046709204

main90467-09204¥110

9046710161

main90467-10161¥90

9356015016

main93560-15016¥70

36 parts on this diagram · 3 diagrams in section
