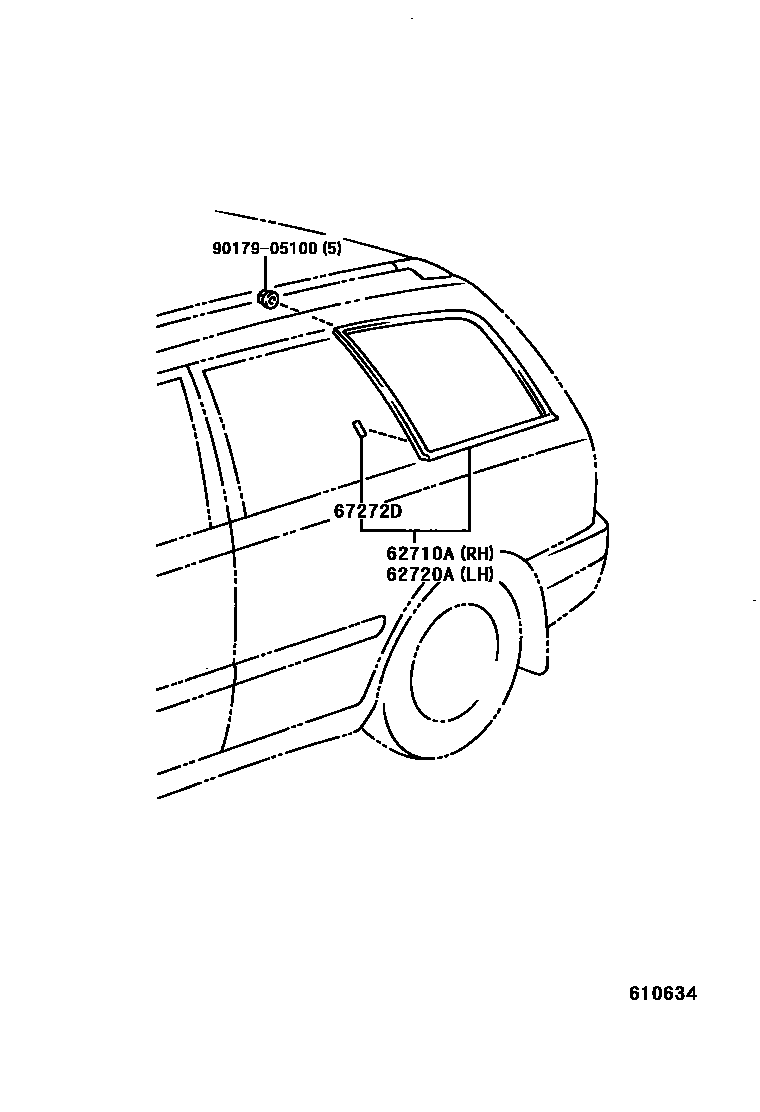

QUARTER WINDOW

0001 1 0002 1

62710AWINDOW ASSY, QUARTER, RH

main62710-05040iAZT220,CDT220,ZZT22#..LB..TERRA199908-200106

*TT,T=3.1,GREEN

main62710-05050iST220..WG;AZT220,CDT220,ZZT22#..WG..TERRA200106

*TT,T=3.1,GREEN

main62710-05060iAT22#,CDT220,CT220,ST220..WG199908-200007

*TT,T=3.1,DK.GREEN

main62710-05070iAZT220,CDT220,ZZT22#..LB..SOL200106

*TT,T=3.1,DK.GREEN

62720AWINDOW ASSY, QUARTER, LH

main62720-05040iAT22#,CT220..LB..TERRA199710-199904

*TT,T=3.1,GREEN

main62720-05050iAT22#,CT220..WG..TERRA199710-199904

*TT,T=3.1,GREEN

main62720-05060iAT22#,CT220,ST220..WG..SOL199710-199908

*TT,T=3.1,DK.GREEN

main62720-05070iAT22#,CT220,ST220..LB..SOL199710-199908

*TT,T=3.1,DK.GREEN

67272DCUSHION, BACK DOOR STOPPER

main67272-20010×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

9017905100

main90179-05100

4 parts on this diagram · 2 diagrams in section
