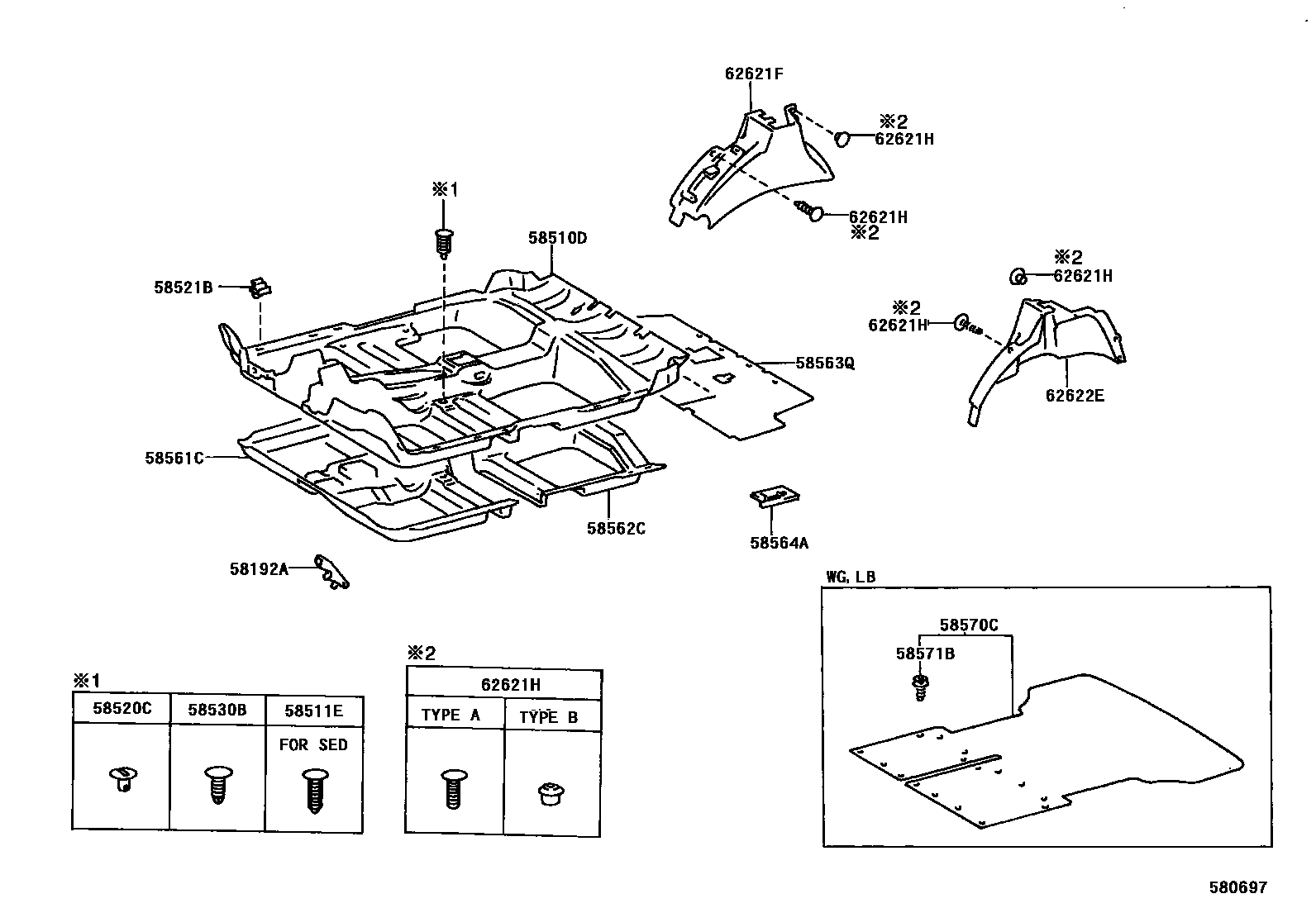

MAT & CARPET

58192AFOOTREST, FRONT FLOOR, LH

main58192-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710

58510DCARPET ASSY, FLOOR, FRONT

main58510-05090-A1iAT22#,CT220,ST220..RHD..SED199710-199810

IVORY,TRIM6#

main58510-05090-B0iAT22#,CT220,ST220..RHD..SED199710-199810

MEDIUM GRAY,TRIM1#

main58510-05090-B2iAT22#,CT220,ST220..RHD..SED199810-199901

MEDIUM GRAY,TRIM1#

main58510-05090-B3iAT22#,CDT220,CT220,ST220..RHD..SED199901-200004

MEDIUM GRAY,TRIM1#

main58510-05090-G0iAT22#,CT220,ST220..RHD..SED199810-199901

SLATE GREEN,TRIM6#

main58510-05090-G1iAT22#,CDT220,CT220,ST220..RHD..SED199901-200004

SLATE GREEN,TRIM6#

main58510-05091-B3iAT22#,CDT220,CT220,ST220..RHD..SED200004-200007

MD.GRAY,TRIM1#

main58510-05091-B4iAZT220,CDT220,ZZT22#..RHD..SED200007

DARK GRAY,TRIM1#

main58510-05091-G1iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD..SED200004

SLATE GREEN,TRIM6#

main58510-05100-A1iAT22#,CT220,ST220..LHD..SED199710-199810

IVORY,TRIM6#

main58510-05100-B0iAT22#,CT220,ST220..LHD..SED199710-199810

MEDIUM GRAY,TRIM1#

main58510-05100-B2iAT22#,CT220,ST220..LHD..SED199810-199901

MEDIUM GRAY,TRIM1#

main58510-05100-B3iAT22#,CDT220,CT220,ST220..LHD..SED199901-200004

MEDIUM GRAY,TRIM1#

main58510-05100-G0iAT22#,CT220,ST220..LHD..SED199810-199901

SLATE GREEN,TRIM6#

main58510-05100-G1iAT22#,CDT220,CT220,ST220..LHD..SED199901-200004

SLATE GREEN,TRIM6#

main58510-05101-B3iAT22#,CDT220,CT220,ST220..LHD..SED200004-200007

MD.GRAY,TRIM1#

main58510-05101-B4iAZT220,CDT220,ST220,ZZT22#..LHD..SED200007

DARK GRAY,TRIM1#

main58510-05101-G1iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..SED200004

SLATE GREEN,TRIM6#

main58510-05110-A1iAT22#,CT220,ST220..RHD..(LB,WG)199710-199810

IVORY,TRIM6#

main58510-05110-B0iAT22#,CT220,ST220..RHD..(LB,WG)199710-199810

MEDIUM GRAY,TRIM1#

main58510-05110-B2iAT22#,CT220,ST220..RHD..(LB,WG)199810-199901

MEDIUM GRAY,TRIM1#

main58510-05110-B3iAT22#,CDT220,CT220,ST220..RHD..(LB,WG)199901-200004

MEDIUM GRAY,TRIM1#

main58510-05110-G0iAT22#,CT220,ST220..RHD..(LB,WG)199810-199901

SLATE GREEN,TRIM6#

main58510-05110-G1iAT22#,CDT220,CT220,ST220..RHD..(LB,WG)199901-200004

SLATE GREEN,TRIM6#

main58510-05111-B3iAT22#,CDT220,CT220,ST220..RHD..(LB,WG)200004-200007

MD.GRAY,TRIM1#

main58510-05111-B4iAZT220,CDT220,ZZT22#..RHD..(LB,WG)200007

DARK GRAY,TRIM1#

main58510-05111-G1iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD..(LB,WG)200004

SLATE GREEN,TRIM6#

main58510-05120-A1iAT22#,CT220,ST220..LHD..(LB,WG)199710-199810

IVORY,TRIM6#

main58510-05120-B0iAT22#,CT220,ST220..LHD..(LB,WG)199710-199810

MEDIUM GRAY,TRIM1#

main58510-05120-B2iAT22#,CT220,ST220..LHD..(LB,WG)199810-199901

MEDIUM GRAY,TRIM1#

main58510-05120-B3iAT22#,CDT220,CT220,ST220..LHD..(LB,WG)199901-200004

MEDIUM GRAY,TRIM1#

main58510-05120-G0iAT22#,CT220,ST220..LHD..(LB,WG)199810-199901

SLATE GREEN,TRIM6#

main58510-05120-G1iAT22#,CDT220,CT220,ST220..LHD..(LB,WG)199901-200004

SLATE GREEN,TRIM6#

main58510-05121-B3iAT22#,CDT220,CT220,ST220..LHD..(LB,WG)200004-200007

MD.GRAY,TRIM1#

main58510-05121-B4iAZT220,CDT220,ST220,ZZT22#..LHD..(LB,WG)200007

DARK GRAY,TRIM1#

main58510-05121-G1iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..(LB,WG)200004

SLATE GREEN,TRIM6#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07049-C0×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710

BLACK,TRIM1#,6#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05080-B1×2iAT22#,CDT220,CT220,ST220199710-200007

MD. GRAY,TRIM1#

main90467-05080-B2×2iAZT220,CDT220,ST220,ZZT22#200007

DK.GRAY,TRIM1#

main90467-05080-E1×2iAT22#,CT220,ST220199710-199810

MD. NEUTRAL BONE,TRIM6#

main90467-05080-G1×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199810

SLATE GREEN,TRIM6#

58521BHOOK, FLOOR CARPET

main58521-05020×10iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07090-B2×6iAT22#,CDT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

sub90467-07207

main90467-07090-B3×6iAZT220,CDT220,ST220,ZZT22#200007

DK.GRAY,TRIM1#

sub90467-07207

main90467-07090-E1×6iAT22#,CT220,ST220199710-199810

MD. NEUTRAL BONE,TRIM6#

sub90467-07207

main90467-07090-G0×6iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199810

SLATE GREEN,TRIM6#

sub90467-07207

58561CSILENCER, FRONT FLOOR, NO.1

main58561-05010iAT22#,CDT220,CT220,ST220..RHD199710-199911

main58561-05011iAT22#,CDT220,CT220,ST220..RHD199911-200003

main58561-05012iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD200003

main58561-05020iAT22#,CDT220,CT220,ST220..LHD199710-199911

main58561-05021iAT22#,CDT220,CT220,ST220..LHD199911-200003

main58561-05022iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD200003

58562CSILENCER, FRONT FLOOR, NO.2

main58562-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

58563QSILENCER, FRONT FLOOR, NO.3

main58563-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

58564ASILENCER, FRONT FLOOR, NO.4

main58564-05010iAT22#,CDT220,CT220,ST220..RHD199710-200007

main58564-05020iAT22#,CDT220,CT220,ST220..LHD199710-200007

main58564-05030iAZT220,CDT220,ZZT22#..RHD200007

main58564-05040iAZT220,CDT220,ST220,ZZT22#..LHD200007

58570CCARPET ASSY, REAR FLOOR

main58571-05050-B0iAT22#,CDT220,CT220,ST220..LB199710-200007

MEDIUM GRAY,TRIM1#

main58571-05050-B2iAZT220,CDT220,ST220,ZZT22#..LB200007

DARK GRAY,TRIM1#

main58571-05050-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

SLATE GREEN,TRIM6#

main58571-05060-B0iAT22#,CDT220,CT220,ST220..WG199710-200007

MEDIUM GRAY,TRIM1#

main58571-05060-B1iAZT220,CDT220,ST220,ZZT22#..WG200007

DARK GRAY,TRIM1#

main58571-05060-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SLATE GREEN,TRIM6#

58571BCLIP, REAR FLOOR MAT SET

main90467-08047×16iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG199710

62621FPAD, QUARTER WHEEL HOUSE, INNER FRONT RH

main62621-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

62621HCLIP(FOR QUARTER WHEEL HOUSE PAD)

main90467-05021-B8×2iAT220,CT220..WG;AT221,ST220..SOL;AT221..WG..TERRA;AT220,CT220..(LB,SED)..SOL199710-199810

TYPE A:REFER TO ILLUSTRATION,LI. GRAY,TRIM1#

sub90467-06177

main90467-05021-C0×2iST220;AT22#,CT220..(LB,SED)..TERRA199710-199810

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM13,6#

sub90467-06177

main90467-05021-G1×2iST220..RHD;AT22#,CDT220,CT220..SOL199810-200007

TYPE A:REFER TO ILLUSTRATION,LT.GREEN,TRIM6#

sub90467-06177

main90467-12069×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

TYPE B:REFER TO ILLUSTRATION

62622EPAD, QUARTER WHEEL HOUSE, INNER FRONT LH

main62622-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

15 parts on this diagram · 1 diagram in section
