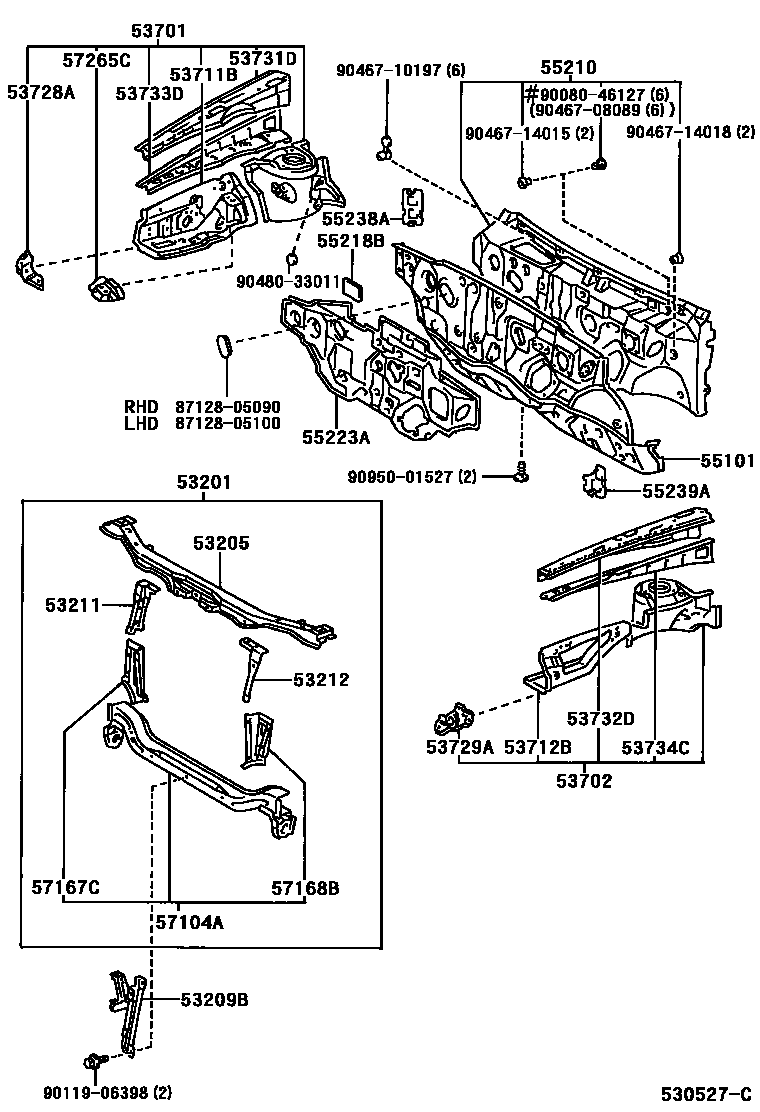

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-05010iAT22#,CDT220,CT220,ST220199710-200007

main53209-05020iAZT220,CDT220,ST220,ZZT22#200007

53211SUPPORT, RADIATOR, RH

main53211-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

53212SUPPORT, RADIATOR, LH

main53212-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

53711BAPRON, FRONT FENDER, FRONT RH

main53711-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

53712BAPRON, FRONT FENDER, FRONT LH

main53712-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

53728ABRACKET, FENDER APRON, RH

main53728-20120iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

53729ABRACKET, FENDER APRON, LH

main53729-20010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

55101PANEL SUB-ASSY, DASH

main55101-05170iAT22#,ST220..RHD..MTM199710-200007

main55101-05171iZZT22#..RHD..MTM200007

main55101-05180iAT221,ST220..RHD..ATM199710-200007

main55101-05181iZZT221..RHD..ATM200007

main55101-05190iCDT220,CT220..RHD199710

main55101-05200iAT22#,ST220..LHD..MTM199710-200007

main55101-05201iST220,ZZT22#..LHD..MTM200007

main55101-05210iAT221,ST220..LHD..ATM199710-200007

main55101-05211iST220,ZZT221..LHD..ATM200007

main55101-05220iCT220..TD199710-200007

main55101-05240iCDT220,CT220..LHD..(DCR,TDEFI)199710

main55101-05260iCDT220..LHD199908

NORWAY OR FINLAND OR SWEDEN SPEC

main55101-05270iAZT220..RHD..MTM200007

main55101-05280iAZT220..RHD..ATM200010

main55101-05290iAZT220..LHD..MTM200007

main55101-05300iAZT220..LHD..ATM200010

55210INSULATOR ASSY, DASH PANEL

main55210-05070iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710

main55210-05080iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710

55218BSEAL, DASH PANEL INSULATOR

main55218-20090×3iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710

55223AINSULATOR, DASH PANEL, OUTER

main55223-05030iCT220..LHD199710-199908

main55223-05031iCDT220,CT220..LHD199908

main55223-05040iCT220..RHD199710-199908

main55223-05041iCDT220,CT220..RHD199908

main55223-05050iAZT220,ZZT22#..RHD200007

main55223-05060iAZT220,ZZT22#..LHD200007

55238APLATE, DASH PANEL INSULATOR, NO.2

main55238-20030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-20060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57265CBRACKET, ENGINE MOUNTING, RH

main57265-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

8712805090GROMMET, HEATER

main87128-05090

8712805100GROMMET, HEATER

main87128-05100

9008046127

main90080-46127

9011906398

main90119-06398

9046708089

main90467-08089

9046710197

main90467-10197

9046714015

main90467-14015

9046714018

main90467-14018

9048033011

main90480-33011

9095001527

main90950-01527

35 parts on this diagram · 1 diagram in section
