SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-05050iAT22#,CDT220,CT220,ST220..RHD199710-200007

main51201-05051iAZT220,CDT220,ZZT22#..RHD200007

main51201-05060iAT22#,CDT220,CT220,ST220..LHD199710-200007

main51201-05061iAZT220,CDT220,ST220,ZZT22#..LHD200007

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-05040iAT22#,CDT220,CT220,ST220199710-200007

sub90950-01759

main51206-05050iAZT220,CDT220,ST220,ZZT22#200007

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

51441CCOVER, ENGINE UNDER, RH

main51441-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

51442CCOVER, ENGINE UNDER, LH

main51442-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM199710

main51442-05050iAT221,AZT220,ST220,ZZT221..ATM199710

51963BHOOK, TRANSPORT, FRONT RH

main51960-20050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199801

main51963-20130iAT22#,CT220,ST220199710-199801

51967BHOOK, TRANSPORT, REAR RH

main51967-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

51968BHOOK, TRANSPORT, REAR LH

main51968-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-20030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

RH

main52211-20040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

LH

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-20010×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-20020×4iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-05010×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-20050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

RH

main52271-20060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

LH

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-20010×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-05060×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

53605DBRACE SUB-ASSY, REAR SUSPENSION

main53605-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

5388820010SHEET, BAFFLE

main53888-20010

9011612039

main90116-12039

9011614013

main90116-14013

9011906665

main90119-06665

9011910559

main90119-10559

9011912258

main90119-12258

9011912316

main90119-12316

9011914045

main90119-14045

9011914047

main90119-14047

9015960383

main90159-60383

9017812001

main90178-12001

9017814001

main90178-14001

9017906331

main90179-06331

9017910087

main90179-10087

9018906177

main90189-06177

9018906193

main90189-06193

9033330002

main90333-30002

9095001398

main90950-01398

9095001478

main90950-01478

9095001615

main90950-01615

9095001641

main90950-01641

9095001759

main90950-01759

9095001866

main90950-01866

9163140614

main91631-40614

91651B1018

main91651-B1018

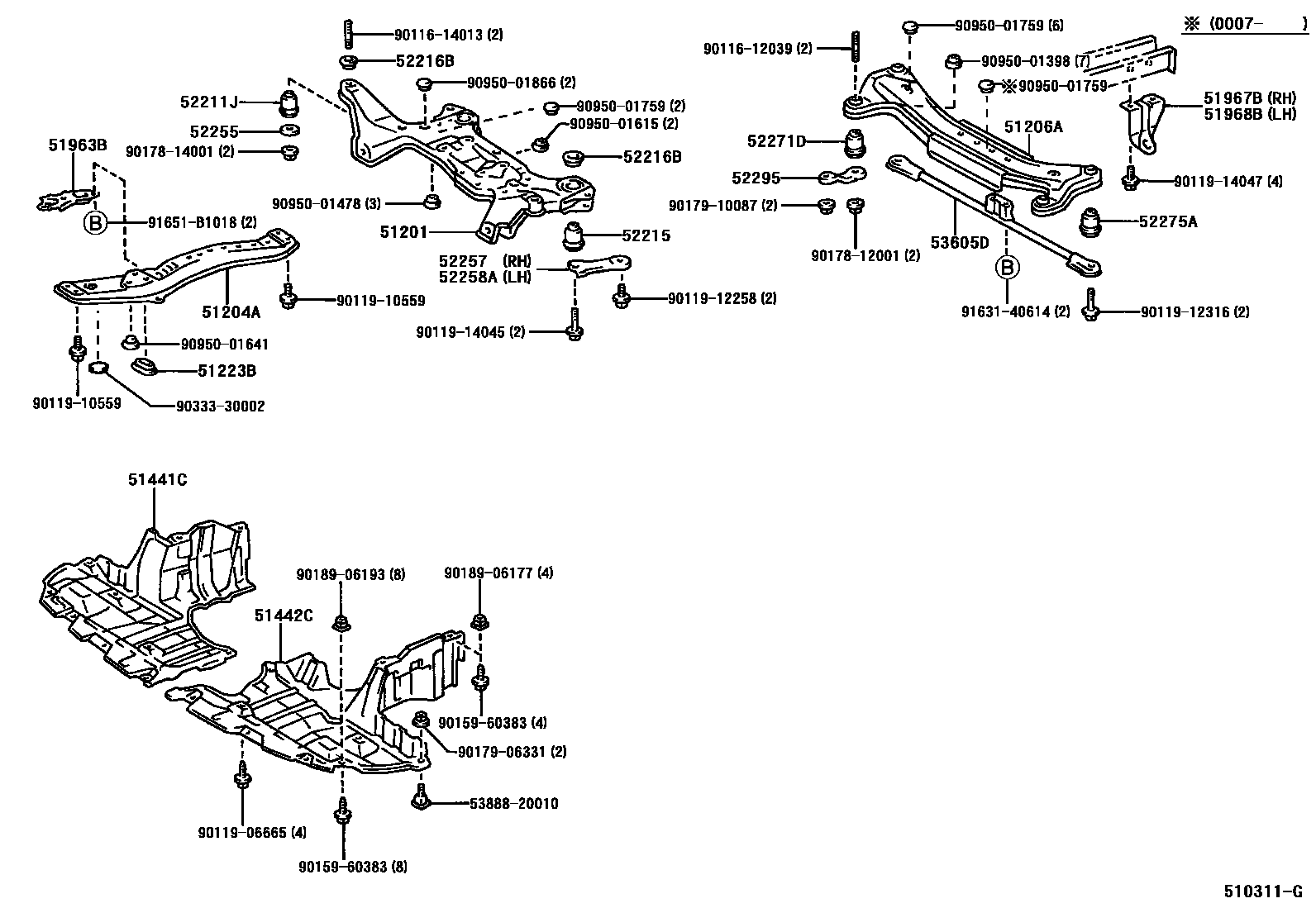

44 parts on this diagram · 1 diagram in section
