BRAKE TUBE & CLAMP

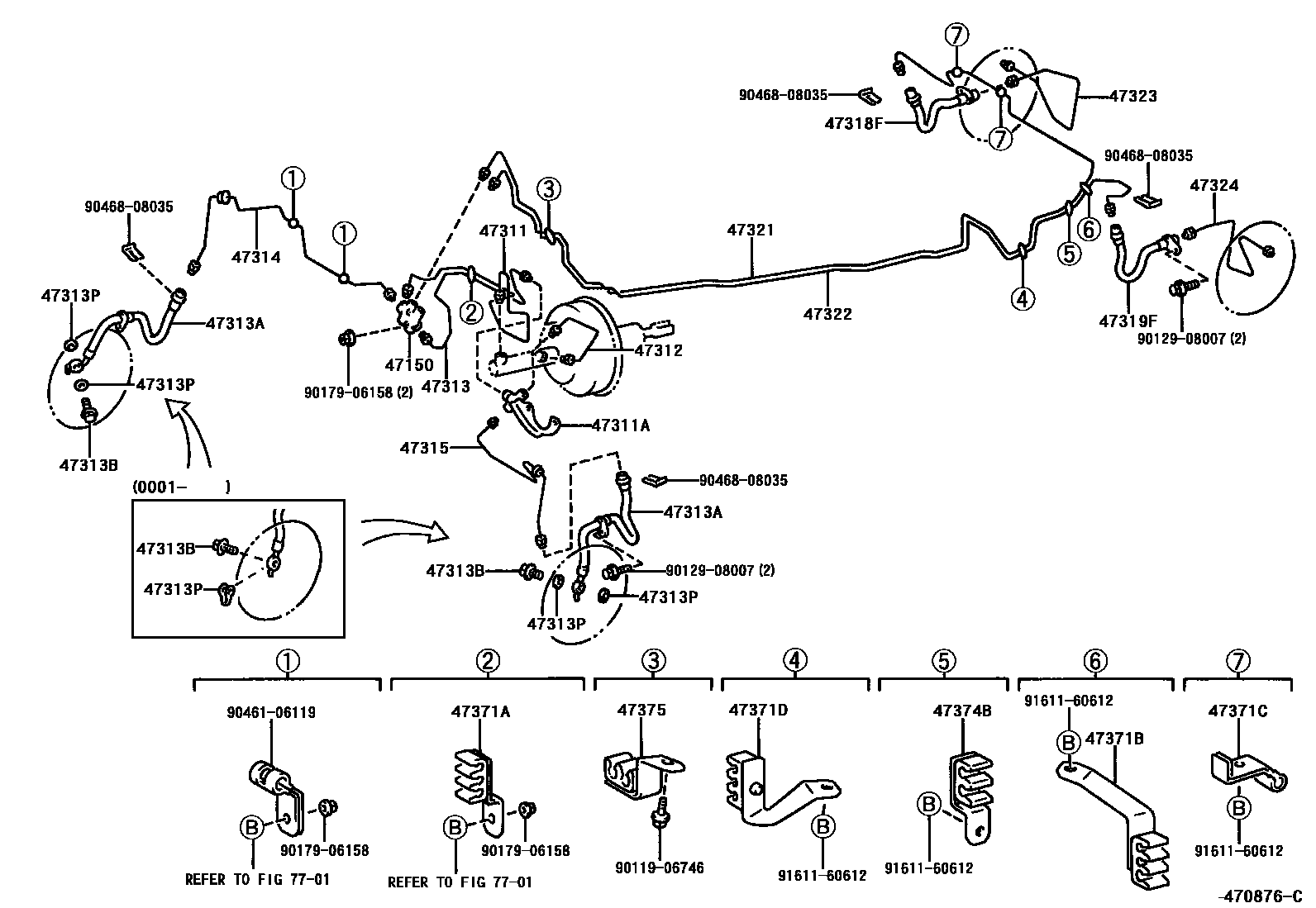

Parts diagram
47150VALVE ASSY, PROPORTIONING
main47150-12080i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47150-20450i199905-200007
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47150-33020i199710-199901
W(ABS)
main47150-33020i199901-199905
W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47150-33060i200001-200007
W(REAR DISC BRAKE)
main47150-33060i199905-200007
W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
47311TUBE, FRONT BRAKE, NO.1
main47311-05120i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47311-05121i199905
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47311-05130i199710-199905
W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47311-05150i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47311-05151i199905-200007
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47311-05191i199905
W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47311-05191i200007
main47311-05300i200007
W(REAR DISC BRAKE)
main47311-05320i200007
W(REAR DISC BRAKE)
main47311-2B310i200007
W(VSC)
47311AWAY(FOR FRONT BRAKE TUBE)
main47391-05060i199710-200007
sub47391-05120
main47391-05070i199710-200007
sub47391-05110
main47391-05080i199710-200007
W(ABS)
sub47391-05130
main47391-05090i200007
W(VSC)
main47391-05110i200007
main47391-05130i200007
47312TUBE, FRONT BRAKE, NO.2
main47311-05160i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
sub47311-05330
main47311-05170i199710-199905
W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
sub47311-05340
main47311-05330i199905-200007
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47311-05340i199905
W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47311-05340i200007
main47311-2B320i200007
W(VSC)
47313TUBE, FRONT BRAKE, NO.3
main47313-05110i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47313-05111i199905-200007
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
sub47313-05112
main47313-05112i200007
main47313-05120i199710-199905
W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47313-05140i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47313-05141i199905-200007
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47313-05151i200007
main47313-05151i199905
W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47313-05280i200007
W(REAR DISC BRAKE)
main47313-05300i200007
W(REAR DISC BRAKE)
main47313-05310i200007
W(VSC)
main47313-2B010i200007-200009
W(VSC)
sub47313-2B011
main47313-2B011i200009
W(VSC)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
main90080-94060i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH
main90080-94061i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH
main90080-94163i200107
W(REAR DISC BRAKE),RH
main90080-94164i200107
W(REAR DISC BRAKE),LH
main90080-94A60i199905-200007
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH
sub90947-W2048
main90080-94A60i200007
RH
sub90947-W2048
main90080-94A61i200007
LH
sub90947-W2049
main90080-94A61i199905-200007
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH
sub90947-W2049
main90947-02B85i200001-200107
W(REAR DISC BRAKE),RH
main90947-02B86i200001-200107
W(REAR DISC BRAKE),LH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
main90401-10015i199710-200001
main90401-10058i200001
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
main47389-30010i199710-200001
main47389-50020i200001
47314TUBE, FRONT BRAKE, NO.4
main47314-05050i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47314-05051i199905
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47314-05051i200007
main47314-05070i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47314-05071i199905-200007
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47314-05080i199710-199905
W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47314-05081i199905
W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47314-05081i200007
main47314-05170i200007
W(REAR DISC BRAKE) OR W(VSC)
47315TUBE, FRONT BRAKE, NO.5
main47315-05090i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47315-05091i200007
main47315-05091i199905
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47315-05100i199710-199905
W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47315-05120i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47315-05121i199905-200007
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47315-05131i199905-200007
W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
sub47315-05132
main47315-05132i200007
main47315-05250i200007
W(VSC)
main47315-05270i200007
W(VSC)
main47315-05280i200007
W(REAR DISC BRAKE)
47318TUBE, FRONT BRAKE, NO.8
main47318-05060i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47318-05061i199905
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47318-05061i200007
main47318-05070i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47318-05081i199905
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47318-05081i200007
main47318-05180i200007
W(VSC)
main47318-05200i200007
W(VSC)
main47318-05210i200007
W(REAR DISC BRAKE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
main90080-94065i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main90080-94161i200107
W(REAR DISC BRAKE)
main90080-94165i200107
main90080-94A65i199905-200007
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main90080-94A65i200007-200107
main90947-02B83i200001-200107
W(REAR DISC BRAKE)
47319FHOSE, FLEXIBLE(FOR REAR LH)
main90080-94066i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main90080-94162i200107
W(REAR DISC BRAKE)
main90080-94166i200107
main90080-94A66i199905-200007
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main90080-94A66i200007-200107
main90947-02B84i200001-200107
W(REAR DISC BRAKE)
47321TUBE, REAR BRAKE, NO.1
main47321-05050i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47321-05051i199905-200007
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47321-05051i200007-200107
main47321-05052i200107
main47321-05060i200007-200107
main47321-05061i200107
47322TUBE, REAR BRAKE, NO.2
main47322-05050i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47322-05051i199905-200007
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47322-05051i200007-200107
main47322-05052i200107
main47322-05060i200007-200107
main47322-05061i200107
47323TUBE, REAR BRAKE, NO.3
main47323-05020i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47323-05021i199905-200007
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47323-05021i200007
47324TUBE, REAR BRAKE, NO.4
main47324-05020i199710-199905
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47324-05021i199905-200007
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
main47324-05021i200007
47371ACLAMP, BRAKE TUBE, NO.1
main47371-20610i199710
main47371-20660i199710
main47371-20800i200007
W(VSC)
47371BCLAMP, BRAKE TUBE, NO.6
main47371-20640i199710-200007
main47371-20780i200007
47371CCLAMP, BRAKE TUBE, NO.7
main90461-06221i200007
main90949-01806i199710-200007
47371DCLAMP, BRAKE TUBE, NO.8
main47371-20730i199710-200007
main47371-20770i200007
47374BCLAMP, BRAKE TUBE, NO.4
main47371-20500i199710-200007
main47371-20790i200007
47375CLAMP, BRAKE TUBE, NO.5
main47371-20600i199710
7701
9011906746
main90119-06746
9012908007
main90129-08007
9017906158
main90179-06158
9046106119
main90461-06119
9046808035
main90468-08035
9161160612
main91611-60612
