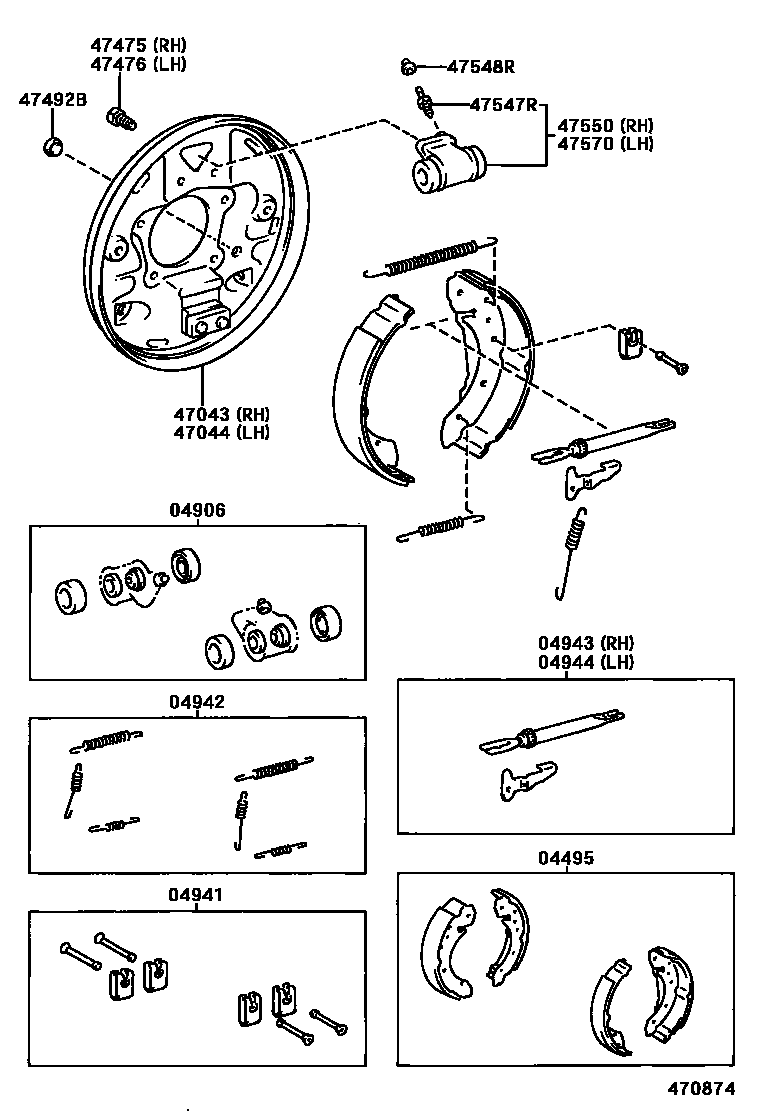

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-05020iAT22#,CDT220,CT220,ST220199710-200007

sub04495-05030

04906CUP KIT, REAR WHEEL CYLINDER

main04906-05020iAT22#,CDT220,CT220,ST220199710-200007

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-05010iAT22#,CDT220,CT220,ST220199710-200007

04942SPRING KIT, REAR BRAKE

main04942-05020iAT22#,CDT220,CT220,ST220199710-200007

04943STRUT KIT, REAR BRAKE, RH

main04943-05020iAT22#,CDT220,CT220,ST220199710-200007

04944STRUT KIT, REAR BRAKE, LH

main04944-05020iAT22#,CDT220,CT220,ST220199710-200007

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-05020iAT22#,CDT220,CT220,ST220199710-200007

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-05020iAT22#,CDT220,CT220,ST220199710-200007

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-05010iAT22#,CDT220,CT220,ST220199710-200007

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47553-05010iAT22#,CDT220,CT220,ST220199710-200007

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-05020iAT22#,CDT220,CT220,ST220199710-200007

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-05011iAT22#,CDT220,CT220,ST220199710-200007

sub47547-05012

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iAT22#,CDT220,CT220,ST220199710-200007

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-05030iAT22#,CT220,ST220199710-199905

sub47550-05040

main47550-05040iAT22#,CDT220,CT220,ST220199905-200007

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-05030iAT22#,CT220,ST220199710-199905

sub47570-05040

main47570-05040iAT22#,CDT220,CT220,ST220199905-200007

15 parts on this diagram · 1 diagram in section
