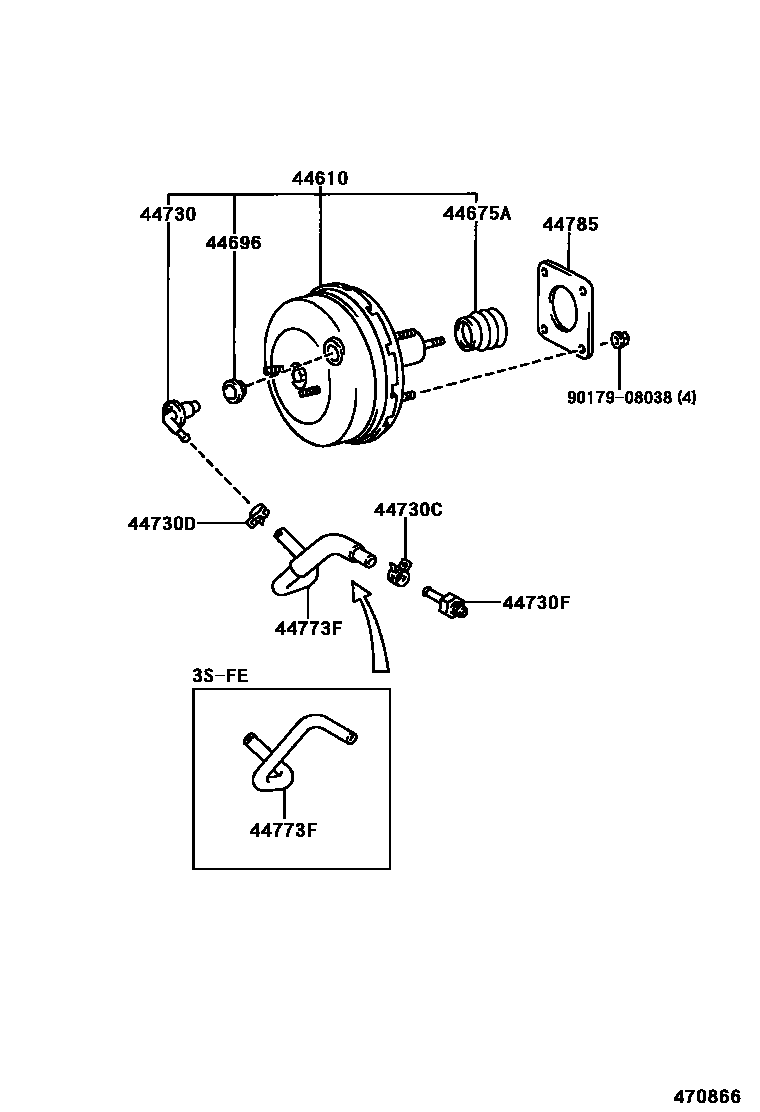

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

44610BOOSTER ASSY, BRAKE

main44610-05030iAT22#,CDT220,CT220,ST220,ZZT22#..RHD199710

main44610-05040iAT22#,CT220,ST220..LHD199710-199901

sub44610-05041

main44610-05041iAT22#,CDT220,CT220,ST220,ZZT22#..LHD199901

main44610-05050iZZT22#..RHD200007-200107

W(REAR DISC BRAKE)

main44610-05050iZZT22#..RHD200007-200107

W(VSC)

main44610-05060iAZT220..LHD200007-200107

W(REAR DISC BRAKE)

main44610-05060iAZT220..LHD200007-200107

W(VSC)

main44610-05110iAZT220..RHD200107

W(VSC)

main44610-05110iZZT22#..RHD200107

W(REAR DISC BRAKE)

main44610-05120iZZT22#..LHD200107

W(REAR DISC BRAKE)

main44610-05120iZZT22#..LHD200107

W(VSC)

44675ABOOT, BRAKE BOOSTER

main44675-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

44696GROMMET, CHECK VALVE

main90069-20004iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

sub44692-0D020

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iAZT220..LHD;AT22#,ST220..RHD¥200199710

sub96134-51500¥180

44730DCLIP(FOR VACUUM HOSE, NO.1)

main90467-16014iAT22#..LHD;CDT220,CT220,ST220¥230199710

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iAT22#,ST220¥220199710

44773FHOSE, UNION TO CHECK VALVE

main44773-2B060iCT220¥1,900199710-200007

main44773-2B080iST220..RHD¥1,760199710-200007

main44773-2B120iAT22#..RHD¥1,470199710-200007

main44773-2B150iCDT220¥1,470199908

main44773-2B180iZZT22#..LHD¥2,290200007

main44773-2B190iZZT22#..LHD¥2,170200007

W(REAR DISC BRAKE)

main44773-2B200iAZT220..RHD¥1,880200007

44785GASKET, BRAKE BOOSTER

main44785-20020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#¥320199710

9017908038

main90179-08038¥130

10 parts on this diagram · 10 diagrams in section
