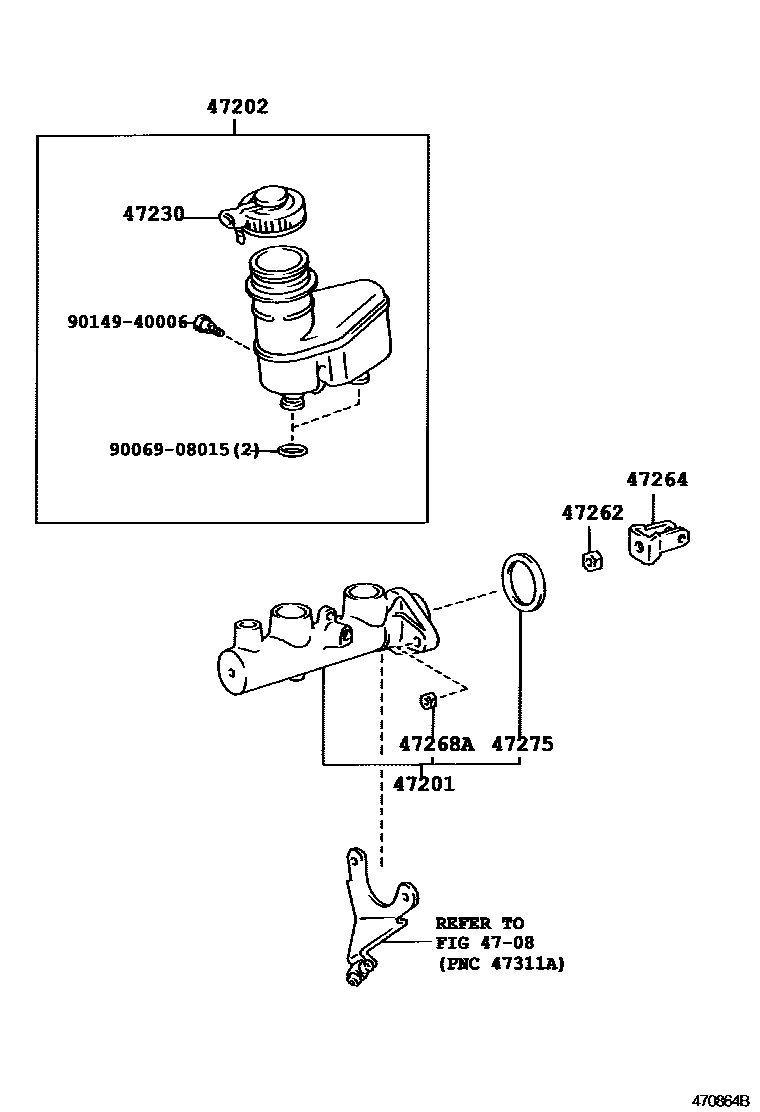

BRAKE MASTER CYLINDER

0001 1 0002 1

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-05050iAT22#,CT220,ST220199710-199901

sub47201-05051

main47201-05051iAT22#,CT220,ST220199901-199905

sub47201-05080

main47201-05060iAZT220..RHD200007

W(VSC)

main47201-05070iAZT220..LHD200007

W(VSC)

main47201-05080iAZT220..TERRA;AT22#,CDT220,CT220,ST220,ZZT22#199905

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-05010iAT22#,CDT220,CT220,ST220,ZZT22#..RHD199710

main47220-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710

main47220-05030iAZT220,ZZT22#..RHD200007

W(VSC)

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-05010iAT22#,CDT220,CT220,ST220,ZZT22#..RHD199710

main47230-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710

main47230-05040iAZT220,ZZT22#..RHD200007

W(VSC)

47262NUT, MASTER CYLINDER PUSH ROD

main47262-05010iAT22#,CT220,ST220..RHD199710-199901

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-05020iAT22#,CT220,ST220..RHD199710-199901

47268ANUT, BRAKE MASTER CYLINDER

main47268-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

47275GASKET, BRAKE MASTER CYLINDER

main47275-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

9006908015

main90069-08015

9014940006

main90149-40006

10 parts on this diagram · 2 diagrams in section
