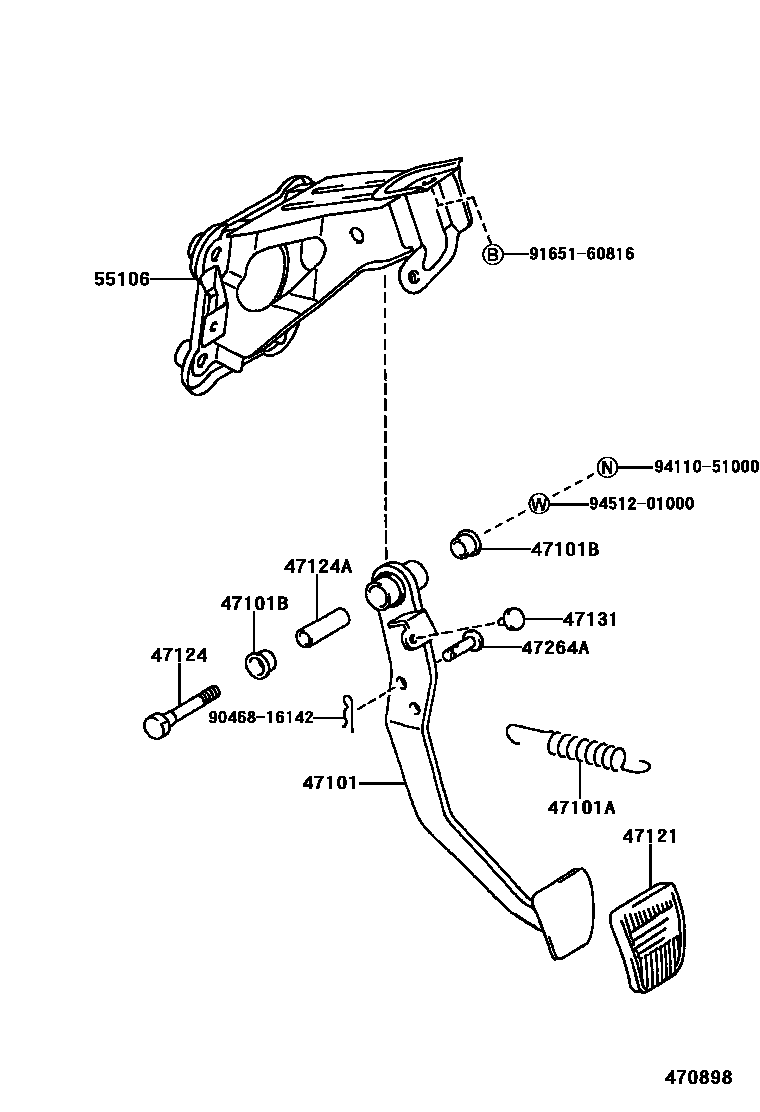

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-05050iAZT220..RHD..TERRA;CDT220,ZZT22#..RHD..MTM199710-200107

main47101-05060iAT22#,CT220,ST220..LHD..MTM199710-199904

main47101-05061iST220..SED..MTM200107

W(REAR DRUM BRAKE)

main47101-05061iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..MTM199904-200107

main47101-05120iAZT220..RHD..TERRA;CDT220,ZZT22#..RHD..MTM200107

W(REAR DISC BRAKE)

main47101-05140iAZT220..LHD..TERRA;CDT220,ZZT22#..LHD..MTM200107

W(REAR DISC BRAKE)

main47101-20560iAT221,AZT220,ST220,ZZT221..RHD..ATM199710-200107

main47101-20570iAT221,ST220..LHD..ATM199710-199904

main47101-20571iZZT221..LHD..ATM199904-200107

main47101-20640iAZT220,ST220..LHD..ATM200107

W(REAR DISC BRAKE)

main47101-20650iAZT220..RHD..ATM200107

W(REAR DISC BRAKE)

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-07002iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200107

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

47121PAD, BRAKE PEDAL

main31321-14020iAT22#,CT220,ST220..MTM199710-199904

main31321-52010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..MTM199904

main47121-14010iAT221,ST220..ATM199710-199904

main47121-50010iAT221,AZT220,ST220,ZZT221..LHD..ATM199904

47124SHAFT, BRAKE PEDAL

main90101-10015iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

47264APIN(FOR PUSH ROD)

main47148-12050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710

main55106-05060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 2 diagrams in section
