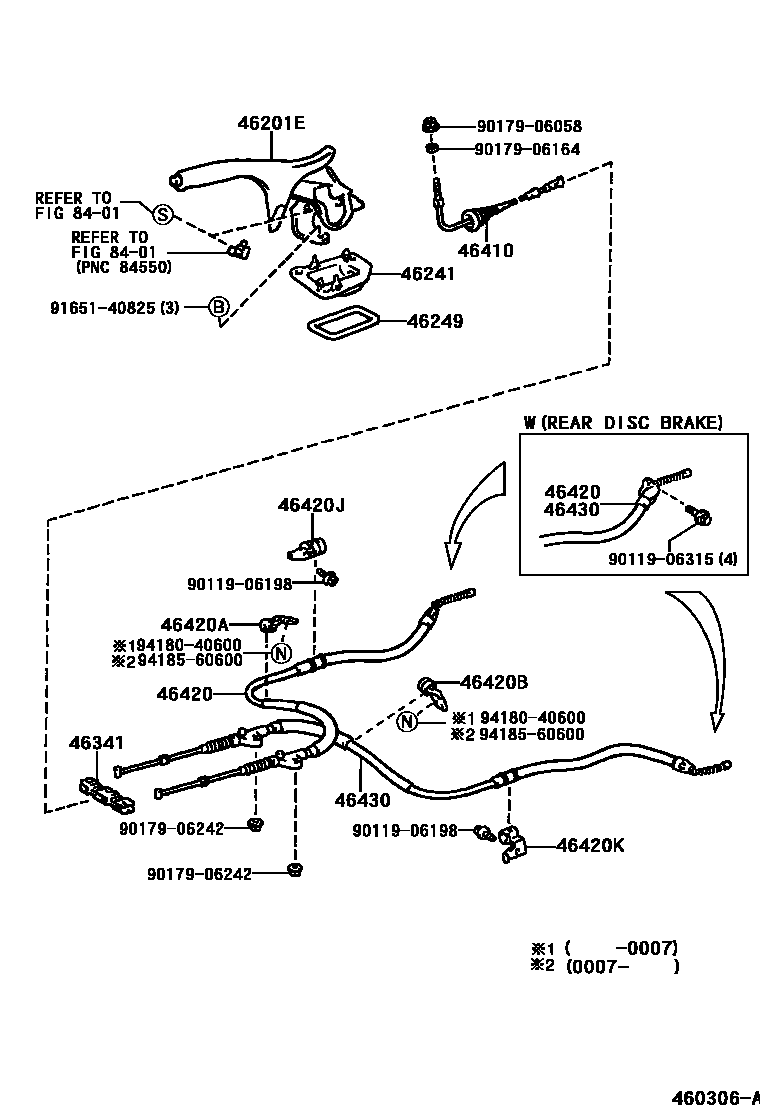

PARKING BRAKE & CABLE

0001 1 0002 1W(REAR DISC BRAKE) 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-05030-C0iAT22#,CDT220,CT220,ST220..RHD199710-200007

BLACK,TRIM1#,6#

main46201-05040-C0iAT22#,CDT220,CT220,ST220..LHD199710-200007

BLACK,TRIM1#,6#

main46201-05050-C0iAZT220,CDT220,ZZT22#..RHD200007

BLACK,TRIM1#,6#

main46201-05060-C0iAZT220,CDT220,ST220,ZZT22#..LHD200007

BLACK,TRIM1#,6#

46241BOOT, PARKING BRAKE LEVER

main46241-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710

main46241-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710

46249SHIELD, PARKING BRAKE HOLE

main46249-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

46341EQUALIZER, PARKING BRAKE

main46341-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-05020iAT22#,CDT220,CT220,ST220199710-200007

sub46420-20590

main46420-20480iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

W(REAR DISC BRAKE)

main46420-20520iAZT220,CDT220,ST220,ZZT22#200107

W(REAR DISC BRAKE)

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46451-20080iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46451-20090iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46451-20060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46451-20070iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-05020iAZT220..TERRA;CDT220,ZZT22#;ST220..SED..MTM199710-200007

sub46430-20700

main46430-20600iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

W(REAR DISC BRAKE)

main46430-20640iAZT220,CDT220,ST220,ZZT22#200107

W(REAR DISC BRAKE)

8401

9011906198

main90119-06198

9011906315

main90119-06315

9017906058

main90179-06058

9017906164

main90179-06164

9017906242

main90179-06242

9165140825

main91651-40825

9418040600

main94180-40600

9418560600

main94185-60600

20 parts on this diagram · 3 diagrams in section
