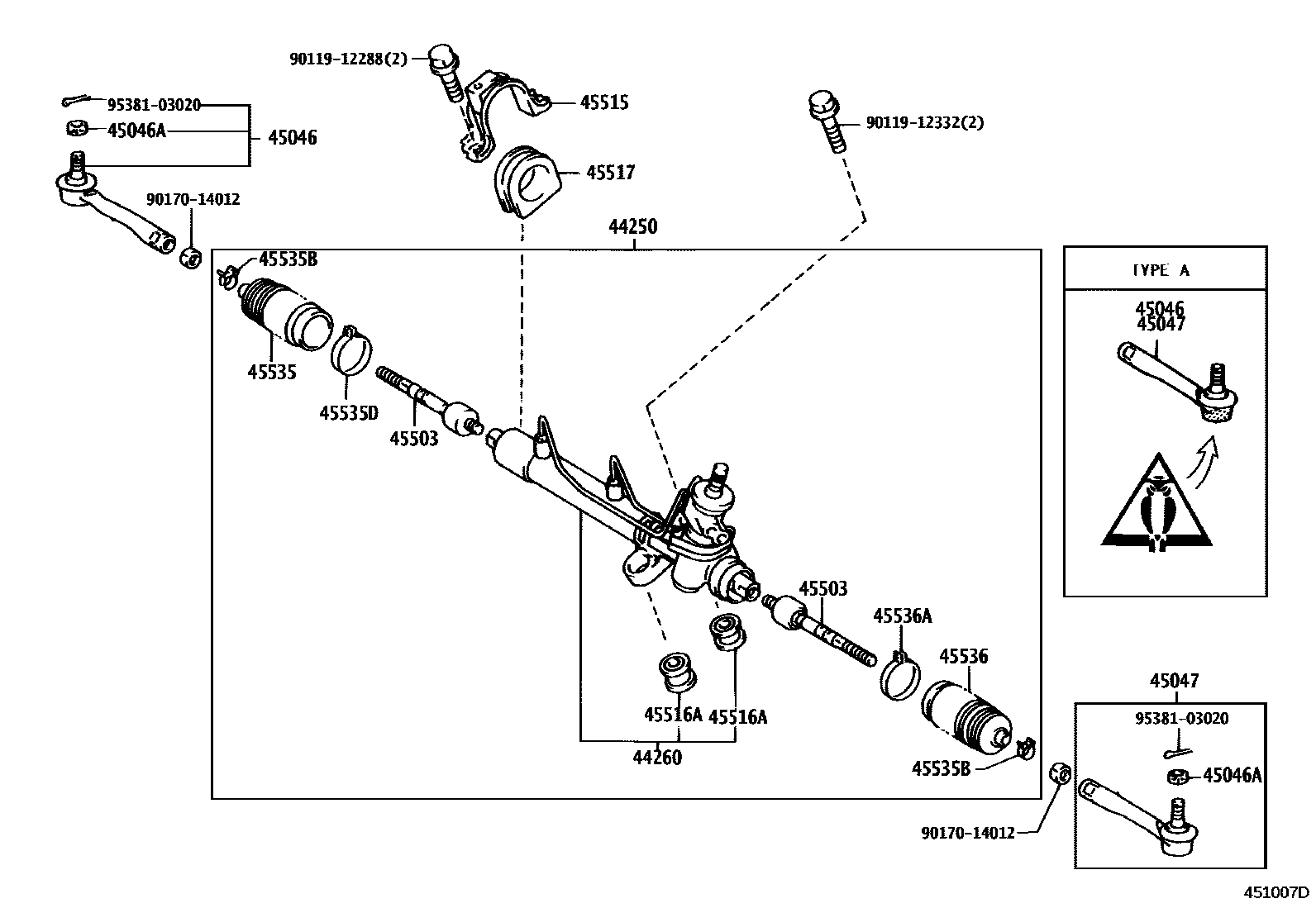

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710-200107

sub44250-05101

main44250-05060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710-200110

sub44250-05061

main44250-05061iAZT220,CDT220,ST220,ZZT22#..LHD200110

sub44250-05160

main44250-05090iAZT220,CDT220,ZZT22#..LHD200012-200107

DENMARK SPEC

sub44250-05061

main44250-05100iAZT220,CDT220,ZZT22#..RHD200107-200110

sub44250-05101

main44250-05101iAZT220,CDT220,ZZT22#..RHD200110

sub44250-05150

44260CYLINDER ASSY, POWER STEERING POWER

main44260-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710-200301

sub44260-05080

main44260-05060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710-200110

sub44260-05090

main44260-05070iAZT220,CDT220,ZZT22#..LHD200012-200107

DENMARK SPEC

sub44260-05060

45046END SUB-ASSY, TIE ROD, RH

main45046-09100iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

TYPE A:REFER TO ILLUSTRATION

main45046-29365iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

45047END SUB-ASSY, TIE ROD, LH

main45047-09030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

TYPE A:REFER TO ILLUSTRATION

sub45047-29125

main45047-29125iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

45503END SUB-ASSY, STEERING RACK

main45503-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200110

sub45503-05050

main45503-05050iAZT220,CDT220,ST220,ZZT22#200110

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20150iCDT220,CT220..RHD199710

main45515-20160iAT22#,AZT220,ST220,ZZT22#..RHD199710

main45515-20210iAT22#,AZT220,ST220,ZZT22#..LHD199710

main45515-20270iCDT220,CT220..LHD199710

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

45535BOOT, STEERING RACK, NO.1

main45535-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46222iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200104

main90080-46228iAZT220,CDT220,ST220,ZZT22#200104

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90069-48002iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

45536BOOT, STEERING RACK, NO.2

main45535-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90069-48002iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

9011912288

main90119-12288

9011912332

main90119-12332

9017014012

main90170-14012

9538103020

main95381-03020

18 parts on this diagram · 2 diagrams in section
