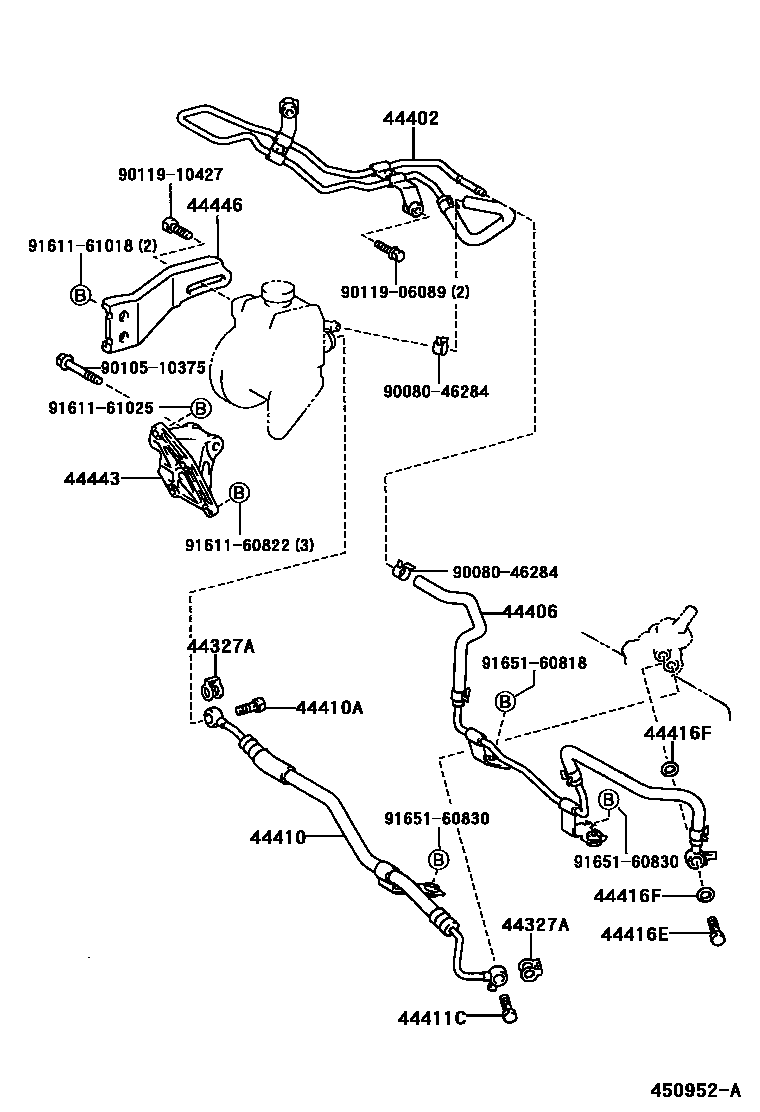

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iZZT22#..LHD;AT22#,AZT220,CDT220,CT220,ST220..RHD199710

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-05010iAT22#..RHD199810-200007

main44402-05020iAT22#..LHD199810-200007

main44402-20490iAT22#..RHD199710-199810

main44402-20500iAT22#..LHD199710-199810

44406TUBE SUB-ASSY, RETURN

main44406-05080iAT22#..LHD199810-200007

main44406-05090iST220..RHD199810-200007

main44406-05120iCDT220,CT220..RHD199810

main44406-05130iCT220..LHD199810-199905

sub44406-05140

sub44410-05171

main44406-05140iCDT220,CT220..LHD199905

main44406-05150iZZT22#..RHD200007

main44406-05170iZZT22#..LHD200007

main44406-05180iAZT220..RHD200007

main44406-20780iCT220..RHD199710-199810

main44406-20870iST220..RHD199710-199810

main44406-20891iAT22#..LHD199710-199810

main44406-2B030iCT220..LHD199710-199810

44410TUBE ASSY, PRESSURE FEED

main44410-05080iCDT220..RHD199908-200007

main44410-05111iCDT220..LHD199908-200007

main44410-05120iAT22#..RHD199810-200004

sub44410-05121

main44410-05121iAT22#..RHD200004-200007

main44410-05130iAT22#..LHD199810-200007

main44410-05140iST220..RHD199810-200007

main44410-05150iST220..LHD199810

main44410-05160iCT220..RHD199810-200007

main44410-05170iCT220..LHD199810-199905

sub44410-05171

sub44406-05140

main44410-05171iCT220..LHD199905-200007

main44410-05180iZZT22#..RHD200007

sub44410-05320

main44410-05190iZZT22#..LHD200007

main44410-05200iAZT220..RHD200007

main44410-05210iAZT220..LHD200007

main44410-05220iCDT220..RHD200007-200101

sub44410-05221

main44410-05221iCDT220..RHD200101

main44410-05230iCDT220..LHD200007

main44410-2B280iCT220..RHD199710-199810

main44410-2B350iAT22#..RHD199710-199810

main44410-2B360iAT22#..LHD199710-199810

main44410-2B370iST220..RHD199710-199810

main44410-2B380iST220..LHD199710-199712

sub44410-2B381

main44410-2B381iST220..LHD199712-199810

main44410-2B390iCT220..LHD199710-199810

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iAT22#,CDT220,CT220,ST220199710-200002

main96341-41603iAT22#,AZT220,CDT220,CT220,ST220200002

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44406-05160iZZT22#..LHD200007

main44416-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199810

main44416-20220iAT22#,CT220,ST220..RHD199710-199810

44416EBOLT, UNION(FOR RETURN TUBE)

main90401-17005iAZT220,CDT220,ST220,ZZT22#..LHD200208

main96341-11703iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710-200208

sub90401-17005

44416FGASKET(FOR RETURN TUBE)

main90430-17005iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710

44443BRACKET, PUMP

main44443-12100iAT22#199710-200007

main44443-33020iST220199710

44446STRUT, ADJUSTING

main44446-05010iAT220199710-200007

main44446-05020iAT221199710-200007

9008046284

main90080-46284

9010510375

main90105-10375

9011906089

main90119-06089

9011910427

main90119-10427

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9165160818

main91651-60818

9165160830

main91651-60830

20 parts on this diagram · 12 diagrams in section
