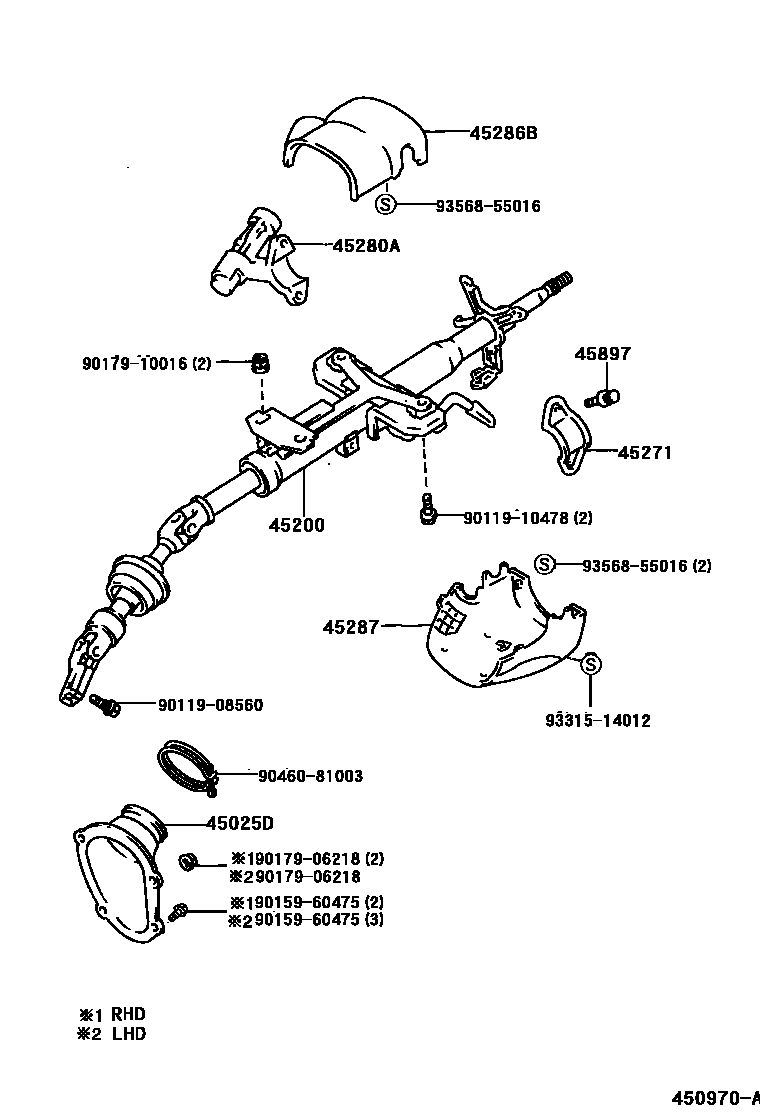

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD199710

main45025-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD199710

45200POST ASSY, STEERING

main45200-05110iAT22#,CDT220,CT220,ST220..RHD199710-200007

main45200-05120iAT22#,CDT220,CT220,ST220..LHD199710-200007

main45200-05130iAZT220..RHD..SOL200007-200301

W(VSC)

main45200-05140iAZT220..LHD..SOL200007-200301

W(VSC)

main45200-05150iCDT220,ZZT22#..RHD;AZT220..RHD..TERRA200007-200301

main45200-05160iAZT220..LHD..TERRA;CDT220,ST220,ZZT22#..LHD200007-200301

main45200-05250iAZT220..LHD200012-200301

DENMARK SPEC & W(VSC);POLAND SPEC

main45200-05260iCDT220,ZZT22#..LHD;AZT220..LHD..TERRA200012-200301

POLAND SPEC;DENMARK SPEC

45271CLAMP, STEERING COLUMN, UPPER

main45271-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-02010iAZT220,ST220,ZZT221..ATM200007

main45280-05030iAT22#,CT220,ST220199710-199908

main45280-05050iAZT220,CDT220,ST220,ZZT22#..MTM199908-200007

45286BCOVER, STEERING COLUMN, UPR

main45286-05050-C0iAT22#,CDT220,CT220,ST220199710-200007

BLACK,TRIM1#,6#

main45286-05080-C0iAZT220,CDT220,ST220,ZZT22#200007

BLACK,TRIM1#,6#

45287COVER, STEERING COLUMN, LWR

main45024-05010-C0iAZT220,CDT220,ST220,ZZT22#200007

BLACK,TRIM1#,6#

main45287-05110-C0iAT22#,CDT220,CT220,ST220199710-200007

BLACK,TRIM1#,6#

45897BOLT, STEERING LOCK SET

main45897-12020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

9011908560

main90119-08560

9011910478

main90119-10478

9015960475

main90159-60475

9017906218

main90179-06218

9017910016

main90179-10016

9046081003

main90460-81003

9331514012

main93315-14012

9356855016

main93568-55016

15 parts on this diagram · 1 diagram in section
