FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
REFER TO ILLUSTRATION
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
REFER TO ILLUSTRATION
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
DENMARK OR ICELAND SPEC
REFER TO ILLUSTRATION
REFER TO ILLUSTRATION
43410SHAFT ASSY, FRONT DRIVE, RH
REFER TO ILLUSTRATION
W(ABS),REFER TO ILLUSTRAION
sub43410-05221
sub43410-05231
sub43410-05241
REFER TO ILLUSTRATION
W(ABS),REFER TO ILLUSTRAION
DENMARK OR ICELAND SPEC
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
REFER TO ILLUSTRATION
REFER TO ILLUSTRATION
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
REFER TO ILLUSTRATION
ID=29.5
ID=29.5,REFER TO ILLUSTRATION
ID=31.50
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
REFER TO ILLUSTRATION
ID=87.5
ID=87.5,REFER TO ILLUSTRATION
ID=90.00
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
REFER TO ILLUSTRATION
REFER TO ILLUSTRATION
DENMARK OR ICELAND SPEC
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
REFER TO ILLUSTRATION
REFER TO ILLUSTRATION
DENMARK OR ICELAND SPEC
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
REFER TO ILLUSTRATION
W(ABS),REFER TO ILLUSTRAION
REFER TO ILLUSTRATION
W(ABS),REFER TO ILLUSTRAION
sub43470-09470
sub43470-09471
sub43470-09481
43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)
43474DDAMPER, FRONT DRIVE SHAFT, RH
REFER TO ILLUSTRATION
REFER TO ILLUSTRATION
43498INSULATOR, DRIVE SHAFT HEAT
9017908241
9164180820

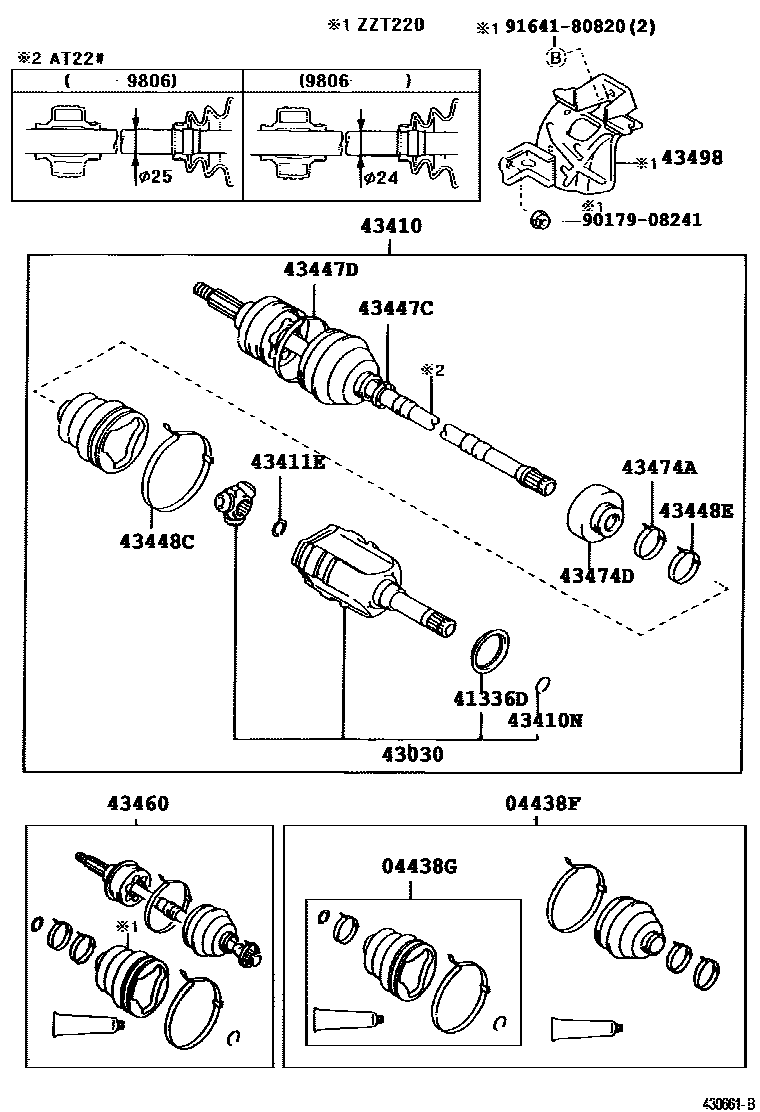

17 parts on this diagram · 7 diagrams in section
