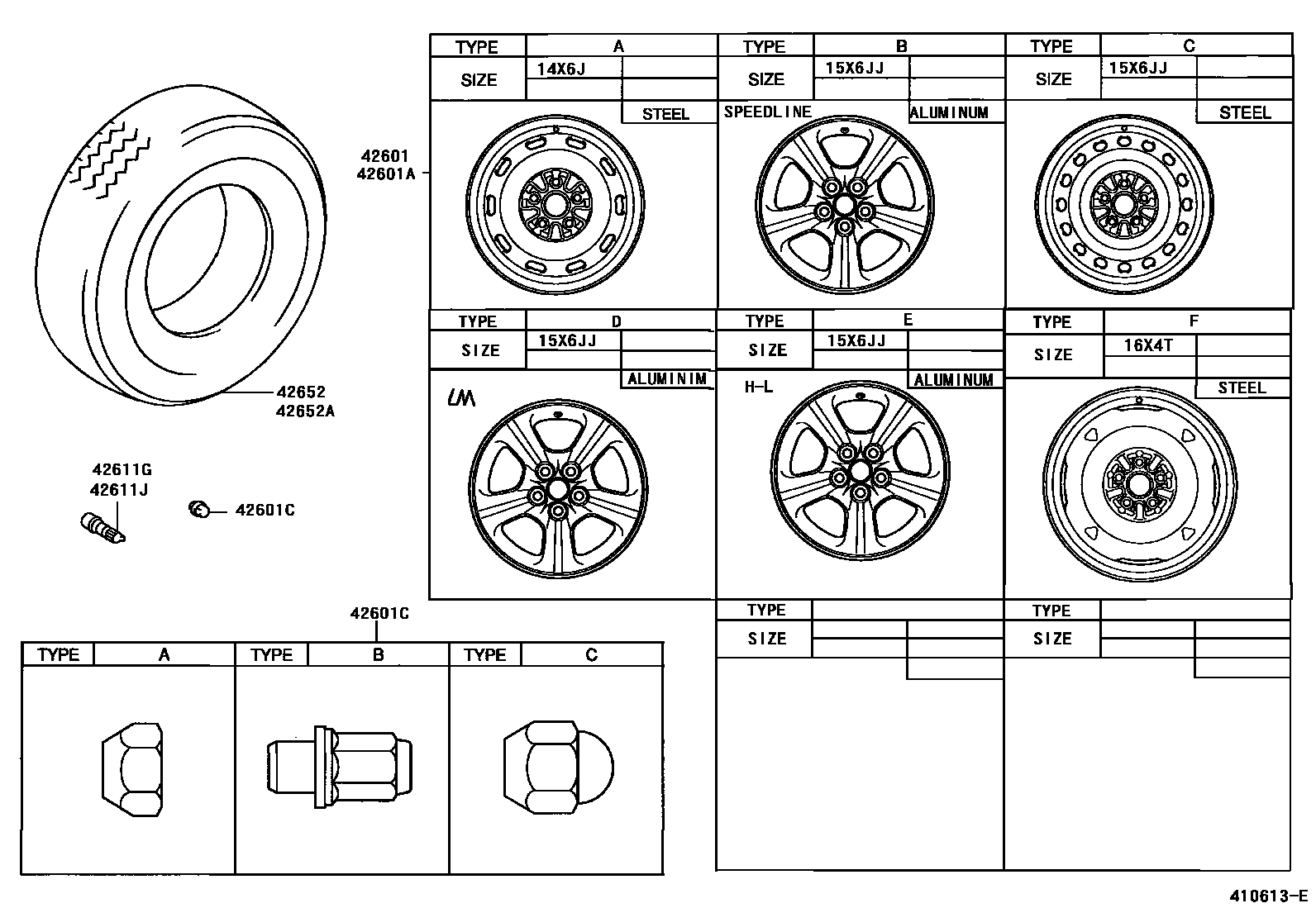

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
14X6J,TYPE A:REFER TO ILLUSTRATION
main42611-05080×4iAT22#,CDT220,CT220,ST220199710-200007 15X6JJ,TYPE C:REFER TO ILLUSTRATION
main42611-05090×4iAT22#,CDT220,CT220,ST220..SOL199710-200001 15X6JJ,TYPE B:REFER TO ILLUSTRATION
15X6JJ,TYPE C:REFER TO ILLUSTRATION
main42611-05110×4iAZT220,CDT220,ST220,ZZT22#..SOL200007 15X6JJ,TYPE E:REFER TO ILLUSTRATION
main42611-21130×4iAZT220,CDT220,ST220,ZZT22#..SOL200007 15X6JJ,TYPE D:REFER TO ILLUSTRATION
42601AWHEEL, DISC (FOR SPARE)
14X6J,TYPE A:REFER TO ILLUSTRATION
15X6JJ,TYPE C:REFER TO ILLUSTRATION
main42611-05090iAT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI200001-200007 15X6JJ,TYPE B:REFER TO ILLUSTRATION
main42611-05100iCDT220..LB,SED;CDT220..WG..SOL;AZT220,ST220,ZZT22#200007 15X6JJ,TYPE C:REFER TO ILLUSTRATION
16X4T,TYPE F:REFER TO ILLUSTRATION
main42611-21130iAT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI200001-200007 15X6JJ,TYPE D:REFER TO ILLUSTRATION
42601CNUT, HUB (FOR AXLE)
main90942-01007×20iAZT220,CDT220,ST220,ZZT22#..SOL200007 TYPE A:REFER TO ILLUSTRATION
main90942-01021×20iAT22#,CDT220,CT220,ST220199710-200007 TYPE C:REFER TO ILLUSTRATION
main90942-01058×20iAT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI199901-200007 TYPE B:REFER TO ILLUSTRATION
42611GVALVE (FOR TUBELESS TIRE)
main90080-45010×4iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710 (L)
main90942-05009×4iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710 (J)
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710 (J)
7 parts on this diagram · 3 diagrams in section
