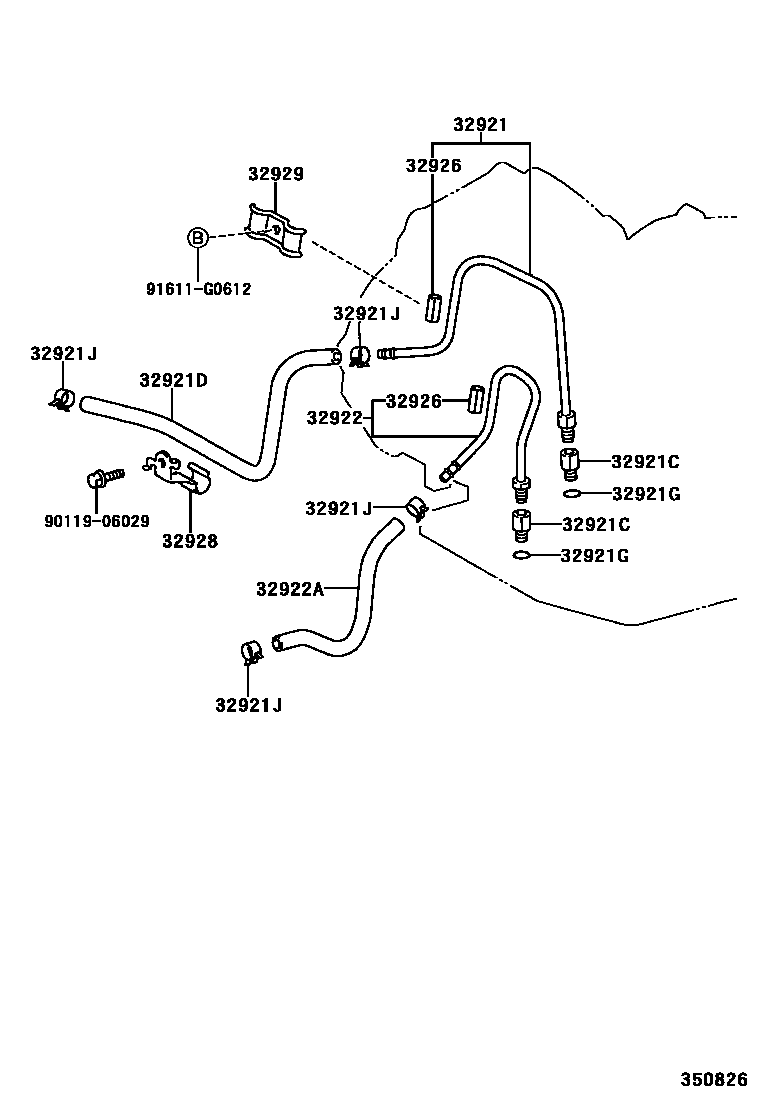

OIL COOLER & TUBE (ATM)

0001 1A245E 0002 1A245E,AIR COOLING OIL COOLER 0003 1U240E 0004 1A241E 0005 1A246E

32921TUBE, OIL COOLER INLET, NO.1

main32921-05030iAT221..ATM199710-200007

main32921-05040iST220..ATM199710

main32921-05050iZZT221..ATM200007

main32921-05060iAZT220..ATM200010

32921CUNION(FOR OIL COOLER TUBE)

main90404-16031iST220..ATM199710-200301

main90404-16031iAZT220..ATM200010-200301

INLET

main90404-16032iAT221,ZZT221..ATM199710-200301

main90407-16010iAZT220..ATM200010-200301

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32943-20091iAT221..ATM199710-200007

main32943-20110iZZT221..ATM200007

main90445-17106iST220..ATM199710

main90445-17126iAZT220..ATM200010

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iAZT220,ST220..ATM199710-200301

main90301-11006iAT221,ZZT221..ATM199710-200301

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013iAT221..ATM199710-200007

sub90467-16022

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-05030iAT221..ATM199710-200007

main32922-05040iST220..ATM199710

main32922-05050iZZT221..ATM200007

main32922-05060iAZT220..ATM200010

32922AHOSE(FOR OIL COOLER OUTLET)

main32943-20100iAZT220..ATM200010

main90445-17106iAT221,ST220..ATM199710

main90445-17124iZZT221..ATM200007

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-05010iAT221,ST220..ATM199710

L=25,ID=10

main32926-30020iAZT220,ZZT221..ATM200007

L=35,ID=10

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-20110iAZT220,ZZT221..ATM200007

main32928-20120iAT221..ATM199710-200007

32929CLAMP, FLEXIBLE HOSE, NO.2

main90462-12074iAT221,ZZT221..ATM199710

9011906029

main90119-06029

91611G0612

main91611-G0612

12 parts on this diagram · 5 diagrams in section
