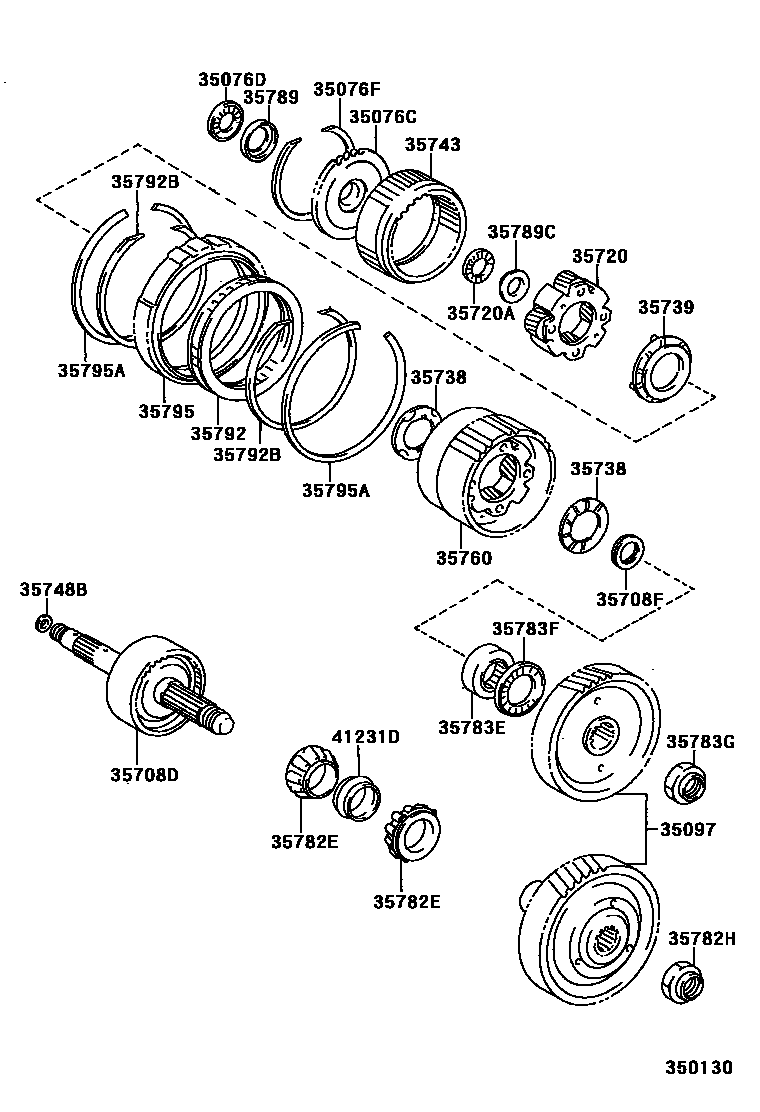

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A245E,A246E 0002 1A241E 0003 1U240E

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-12020iAT221,ZZT221..ATM199710

main35076-32030iST220..ATM199710

35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)

main90374-22001iST220..ATM200202

main90374-22005iST220..ATM199801-200202

main90374-25007iAT221..ATM199710-199909

main90374-25009iAT221,ZZT221..ATM199909

35076FRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE)

main90521-99014iAT221,ST220,ZZT221..ATM199710

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-20060iST220..ATM199710

main35097-20070iAT221,ZZT221..ATM199710

35708DSHAFT SUB-ASSY, INTERMEDIATE

main35708-12070iAT221,ZZT221..ATM199710

35708FBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)

main90374-22003iAT221,ZZT221..ATM199710

35720GEAR ASSY, FRONT PLANETARY

main35720-17010iST220,ZZT221..ATM199710-200301

main35720-21010iAZT220..ATM200010-200301

sub35720-44010

main35720-32010iAT221..ATM199710-200007

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-22001iST220..ATM200202-200206

main90374-22004iAT221..ATM199710-199909

main90374-22005iST220..ATM199801-200202

main90374-22009iAT221,ZZT221..ATM199909-200206

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35737-21010iAZT220..ATM200010-200301

main35738-32010×2iAT221,ST220,ZZT221..ATM199710-200301

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-32011iAT221,ST220,ZZT221..ATM199710

35743GEAR, FRONT PLANETARY RING

main35743-21010iAZT220..ATM200010-200301

sub35743-28010

main35743-32040iAT221,ST220,ZZT221..ATM199710-200301

35748BRING, INTERMEDIATE SHAFT OIL SEAL

main35748-32010iAT221,ST220,ZZT221..ATM199710

35760GEAR ASSY, REAR PLANETARY

main35760-21020iAZT220..ATM200010-200301

sub35760-33030

main35760-32010iAT221,ST220..ATM199710-200301

main35760-32030iZZT221..ATM200007-200301

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-60009×2iAZT220..ATM200010-200301

main90369-40006×2iAT221,ZZT221..ATM199710-200301

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-22021iAT221,ZZT221..ATM199710

35783EBEARING, CYLINDRICAL ROLLER(FOR COUNTER DRIVEN GEAR)

main90365-37001iAT221,ZZT221..ATM199710

35783FBEARING, THRUST NEEDLE ROLLER(FOR COUNTER DRIVEN GEAR)

main90374-41001iAT221,ST220,ZZT221..ATM199710

35783GNUT(FOR COUNTER DRIVEN GEAR)

main90179-20013iST220..ATM199710

main90179-22021iAT221,ZZT221..ATM199710

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-12040iAT221,ZZT221..ATM199710

main35789-32050iST220..ATM199710

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-32060iAT221,ST220,ZZT221..ATM199710

35792CLUTCH, 1 WAY, NO.2

main35792-32011iAT221,ST220,ZZT221..ATM199710

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-99010×2iAT221,ST220,ZZT221..ATM199710

35795RACE, 1 WAY CLUTCH OUTER

main35795-12020iAT221,ZZT221..ATM199710

main35795-32010iST220..ATM199710

35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)

main90521-99011×2iAT221,ST220,ZZT221..ATM199710

41231DSPACER, DRIVE PINION BEARING

main41231-12050iAT221,ZZT221..ATM199710

25 parts on this diagram · 3 diagrams in section
