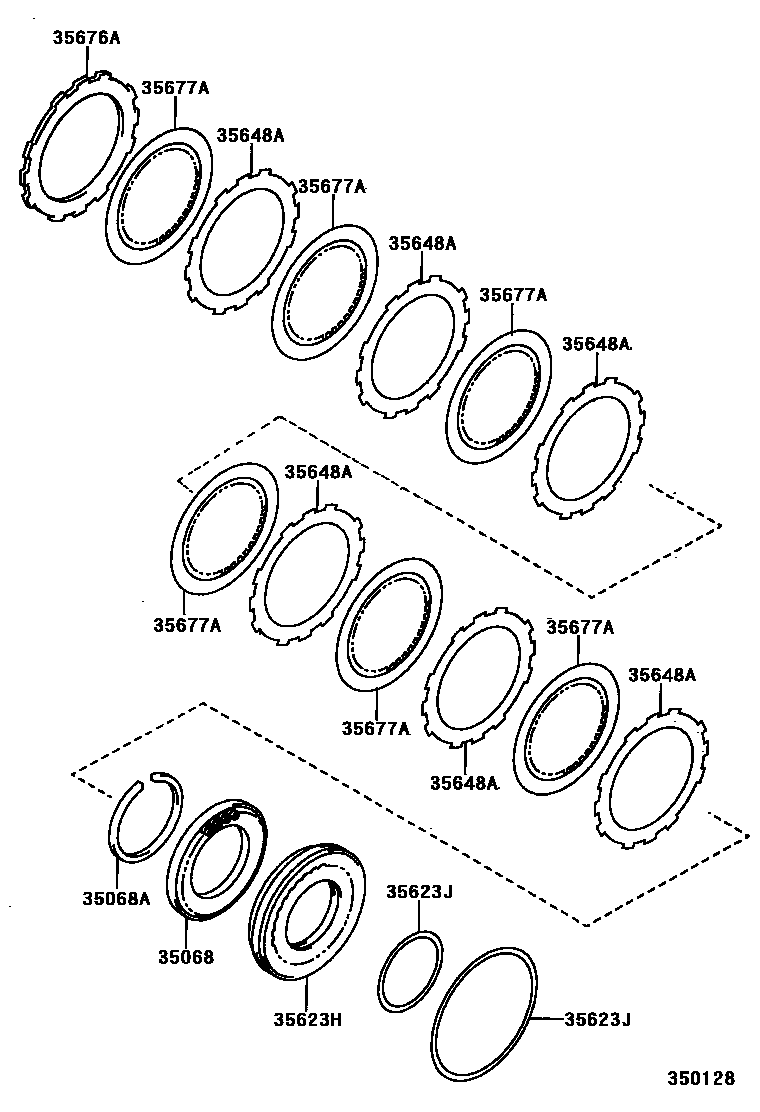

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A241E,A245E,A246E 0002 1U240E

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-12010iAT221,ZZT221..ATM199710-200301

main35068-20010iST220..ATM199710-200301

main35068-21010iAZT220..ATM200010-200301

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iAT221,ST220,ZZT221..ATM199710-200301

main90520-99035iAZT220..ATM200010-200301

35623HPISTON, 1ST & REVERSE BRAKE

main35623-20020iAT221,ZZT221..ATM199710-200301

main35623-20030iST220..ATM199710-200301

main35623-48010iAZT220..ATM200010-200301

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iAT221,ST220,ZZT221..ATM199710-200301

INNER

main90301-94004iZZT221..ATM200008-200301

INNER

main90301-99022iST220..ATM199710-200301

OUTER

main90301-99096iAZT220..ATM200010-200301

INNER

main90301-99098iAZT220..ATM200010-200301

OUTER

sub90301-99134

main90301-99131iZZT221..ATM200008-200301

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-12020iAT221,ZZT221..ATM199710-200301

main35648-32020iST220..ATM199710-200301

main35692-21010iAZT220..ATM200010-200301

sub35692-21011

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-12030iAT221,ST220,ZZT221..ATM199904-200301

T=3.5

main35676-32010iAT221,ST220..ATM199710-199904

T=3.5

sub35676-12030

main35678-21010iAZT220..ATM200010-200301

T=1.8,MARK 1

main35678-21020iAZT220..ATM200010-200301

T=1.9,MARK 2

main35678-21030iAZT220..ATM200010-200301

T=2.0,MARK 3

main35678-21040iAZT220..ATM200010-200301

T=2.1,MARK 4

main35678-21050iAZT220..ATM200010-200301

T=2.2,MARK 5

main35678-21060iAZT220..ATM200010-200301

T=2.3,MARK 6

main35678-21070iAZT220..ATM200010-200301

T=2.4,MARK 7

main35678-21080iAZT220..ATM200010-200301

T=2.5,MARK 8

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12060iST220..ATM199710-200301

main35677-20070iAT221,ZZT221..ATM199710-200301

main35682-21010iAZT220..ATM200010-200301

7 parts on this diagram · 2 diagrams in section
