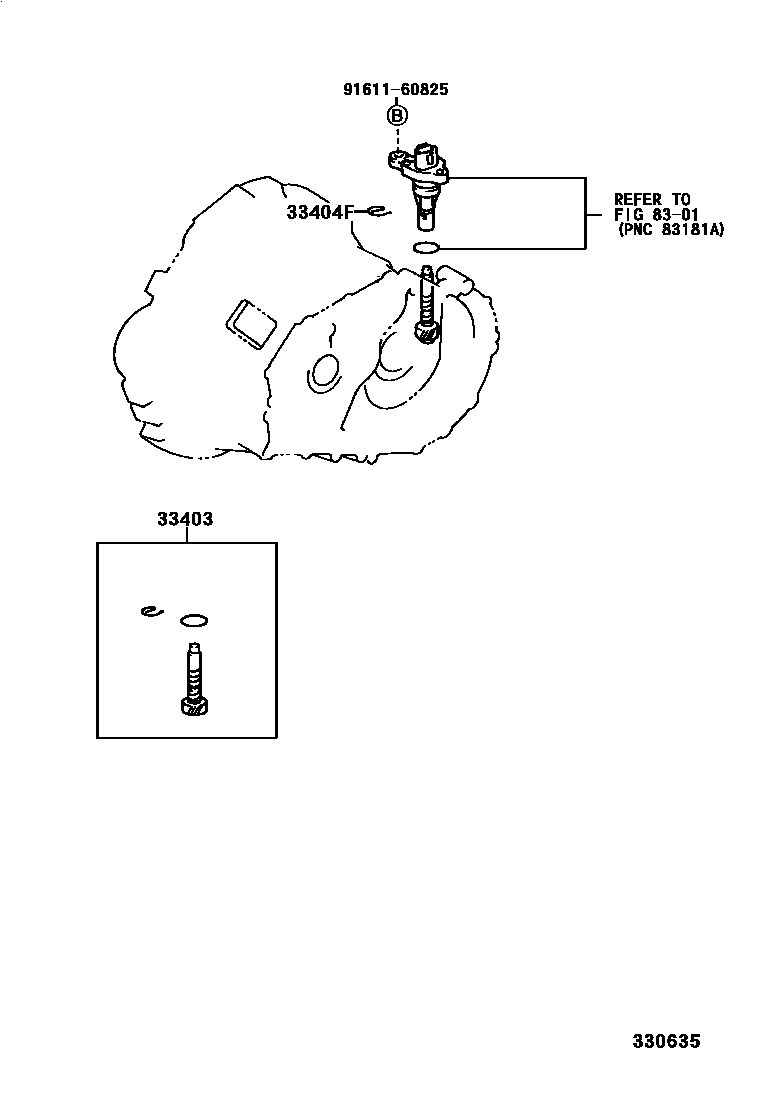

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1C50 0002 1S50,S54,S55,E251,E351

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19455iAT22#..MTM..TERRA199710-200007

N=30,MARK 30:35

main33403-19495iAZT220,CT220,ST220..MTM199710

N=21,MARK 21:25

main33403-19505iCT220..TERRA199710-200007

N=22,MARK 22:25

main33403-29395iAT22#..MTM199710-200007

N=29,MARK 29:35

main33403-29555iCDT220199908

N=27,MARK 27:32

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAT22#,AZT220,CDT220,CT220,ST220..MTM199710

8301

9161160825

main91611-60825

4 parts on this diagram · 2 diagrams in section
