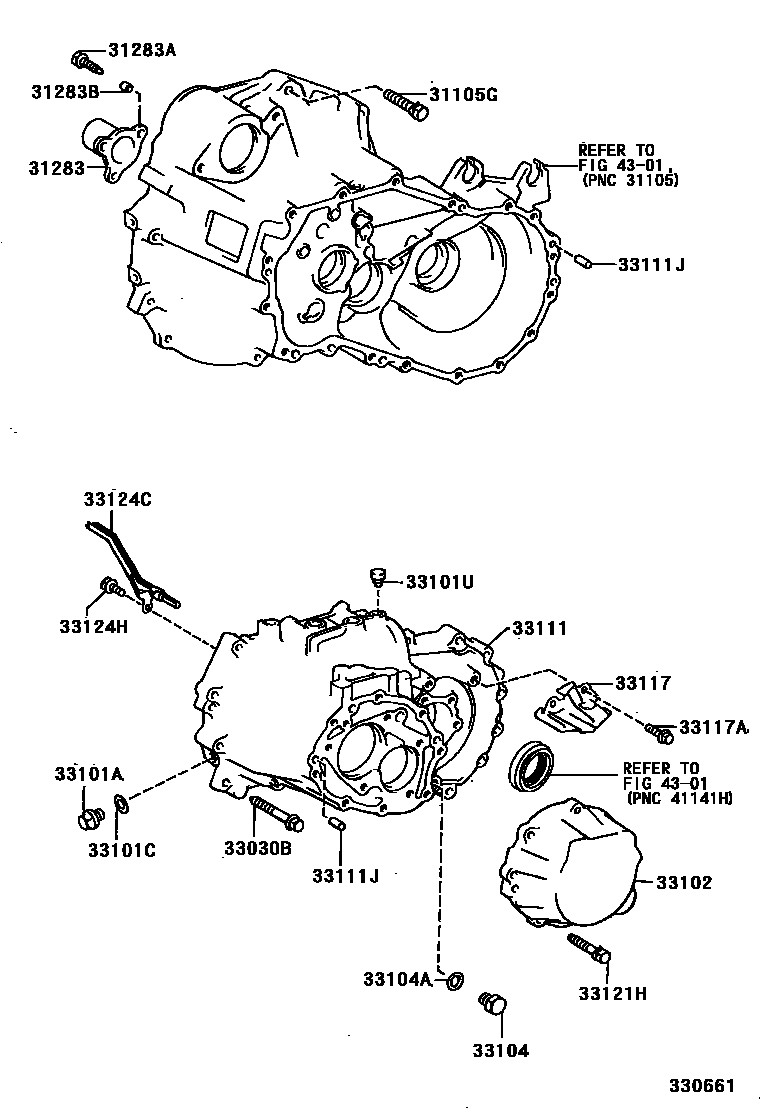

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1S50,S54,S55 0003 1C250,C50 0005 1E251,E351

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCT220,ST220..MTM¥180199710

*8-1.25PX18-15

sub91641-H0820¥90

main90105-10077iAT22#,CDT220,CT220,ST220..MTM¥260199710

*10-1.25PX43-26

main90105-12147iAZT220..MTM¥410200007

*12-1.25PX74.5-25

main90119-12042iAT22#..MTM¥260199710-200007

*12-1.25PX75-30

main90119-12168iAT22#..MTM¥170199710-200007

*12-1.25PX55-30

main90119-12252iAZT220..MTM¥250200007

*12-1.25PX60-30

main91512-61060iAZT220..MTM¥180200007

*10-1.25PX60-30

main91512-61065iAZT220..MTM¥180200007

*10-1.25PX65-30

main91619-61255iZZT22#..MTM¥120200007

*12-1.25PX55-30

main91642-81055iZZT22#..MTM¥220200007

*10-1.25PX55-30

main91651-41022iCDT220,ST220..MTM¥160199710

*10-1.25PX22-22

31283RETAINER, CLUTCH RELEASE BEARING HUB

main31283-32010iAZT220,CT220,ST220..MTM¥3,670199710

31283ABOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90105-06023iAZT220,CT220,ST220..MTM¥210199710

sub91511-B0620¥100

31283BPIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90253-08002iAZT220,CT220,ST220..MTM¥200199710

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iAZT220,CT220,ST220..MTM¥300199710

*8-1.25PX45-27.5

sub90105-08430¥100

main90105-08064iAT22#,ZZT22#..MTM¥190199710

*8-1.25PX51-28

sub90105-08353¥100

main90105-08086iAT22#,ZZT22#..MTM¥110199710

*8-1.25PX45-27.5

main90105-08126iCDT220¥190199908

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAT22#,AZT220,CT220,ST220,ZZT22#..MTM¥180199710

main90341-18033iCDT220¥190199908

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM¥110199710

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03133iAT22#,AZT220,CT220,ST220,ZZT22#..MTM¥370199710

main90930-03148iCDT220¥1,650199908

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iAT22#,ZZT22#..MTM¥9,800199710

main33102-12041iCDT220¥4,940199908

sub33102-12042¥4,950

main33102-33020iAZT220,CT220,ST220..MTM¥16,300199710

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM¥180199710

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM¥110199710

33111CASE, MANUAL TRANSMISSION

main33101-12171iCDT220¥40,900199908-199911

sub33101-12172¥40,900

sub90311-50027¥580

main33101-12172iCDT220¥40,900199911-200007

sub33101-12173¥40,900

main33101-28040iCDT220¥40,900200009-200107

sub33101-28041¥40,900

sub33250-12180¥17,900

sub33290-33020¥1,980

main33101-28041iCDT220¥40,900200107

sub33101-20090¥40,900

sub33250-12180¥17,900

main33111-16062iAT22#..MTM¥35,100199710-199907

sub33111-16063¥38,200

sub90109-18005¥210

sub90430-18008¥110

main33111-16063iAT22#..MTM¥38,200199907-200007

sub33111-16064¥35,200

sub90101-08166¥110

sub90201-08049¥90

main33111-20170iZZT22#..MTM¥38,100200007-200301

sub33111-20171¥38,200

sub90389-15009¥270

main33111-28050iCDT220¥40,900200007-200009

sub33101-28040¥40,900

main33111-32030iAZT220,CT220,ST220..MTM¥38,100199710

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iAZT220,CT220,ST220..MTM¥120199710

L=23,OD=8

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020iCDT220¥1,950199908

main33117-32011iAZT220,CT220,ST220..MTM¥2,010199710

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iAZT220,CDT220,CT220,ST220..MTM¥180199710

sub91641-H0820¥90

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273iAZT220,CT220,ST220..MTM¥170199710

main90119-08630iCDT220¥100199908

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12012iAT22#..MTM¥710199710-199907

sub33124-20050¥440

main33124-12030iCDT220¥1,200199908-200007

main33124-20050iAT22#,ZZT22#..MTM¥440199907

main33124-28050iCDT220¥1,140200007

main33124-33010iAZT220,CT220,ST220..MTM¥720199710

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iCDT220¥140199908-200007

sub90119-08830¥100

main91611-60820iAT22#,ZZT22#..MTM¥200199710

sub91611-G0820¥160

main91651-60618iAZT220,CT220,ST220..MTM¥90199710

4301

19 parts on this diagram · 3 diagrams in section
