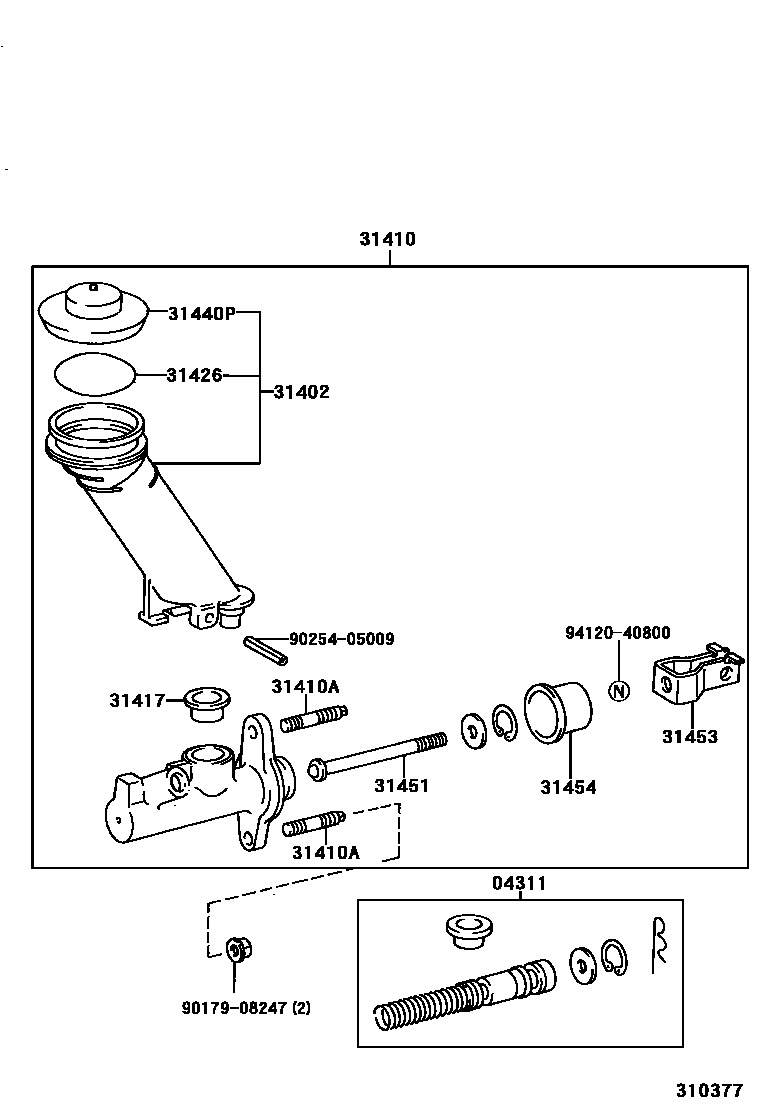

CLUTCH MASTER CYLINDER

0001 1 0003 1 0004 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD..MTM199710

main04311-26050iAT22#,CT220,ST220..LHD..MTM199710-199905

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20080iAT22#,ST220..RHD..MTM199710-200007

sub31402-20180

main31402-20100iAT22#,ST220..LHD..MTM199710-200007

sub31402-20160

main31402-20110iCT220..LHD199710-200007

sub31402-20160

main31402-20120iCDT220,CT220..RHD199710-200007

sub31402-20180

main31402-20160iCDT220..LHD199908-200007

main31402-20180iAZT220,CDT220,ZZT22#..RHD..MTM200007

31410CYLINDER ASSY, CLUTCH MASTER

main31410-20520iAT22#,ST220..RHD..MTM199710-200007

sub31410-20640

main31410-20570iCT220..RHD199710-199905

main31410-20620iCDT220,CT220..RHD199905-200007

sub31410-20650

main31410-20640iAZT220,ZZT22#..RHD..MTM200007

main31410-20650iCDT220..RHD200007

main31420-20030iAT22#,ST220..LHD..MTM199710-200007

sub31420-20050

main31420-20050iAZT220,CDT220,ST220,ZZT22#..LHD..MTM199908-200007

main31420-20060iCT220..LHD199710-199807

sub31420-20061

main31420-20061iCT220..LHD199807-200007

sub31420-20050

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM199710

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD..MTM199710

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iAT22#,CDT220,CT220,ST220..MTM199710-200007

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35020iAZT220,CDT220,ST220,ZZT22#..LHD..MTM199908-200007

main47230-20040iAZT220,CDT220,ZZT22#..RHD..MTM199710-200007

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-30200iAZT220,CDT220,ST220,ZZT22#..MTM199710-200007

main31451-35070iAT22#,ST220..MTM199710-200007

main31451-35080iCT220..LHD199710-200007

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iAZT220,CDT220,ST220,ZZT22#..MTM199710-200007

main31404-30060iCT220..LHD199710-199807

sub31404-44020

main31404-44020iCT220..LHD199807-200007

main31453-10040iAT22#,ST220..MTM199710-200007

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM199710-199911

9017908247

main90179-08247

9025405009

main90254-05009

9412040800

main94120-40800

13 parts on this diagram · 3 diagrams in section
