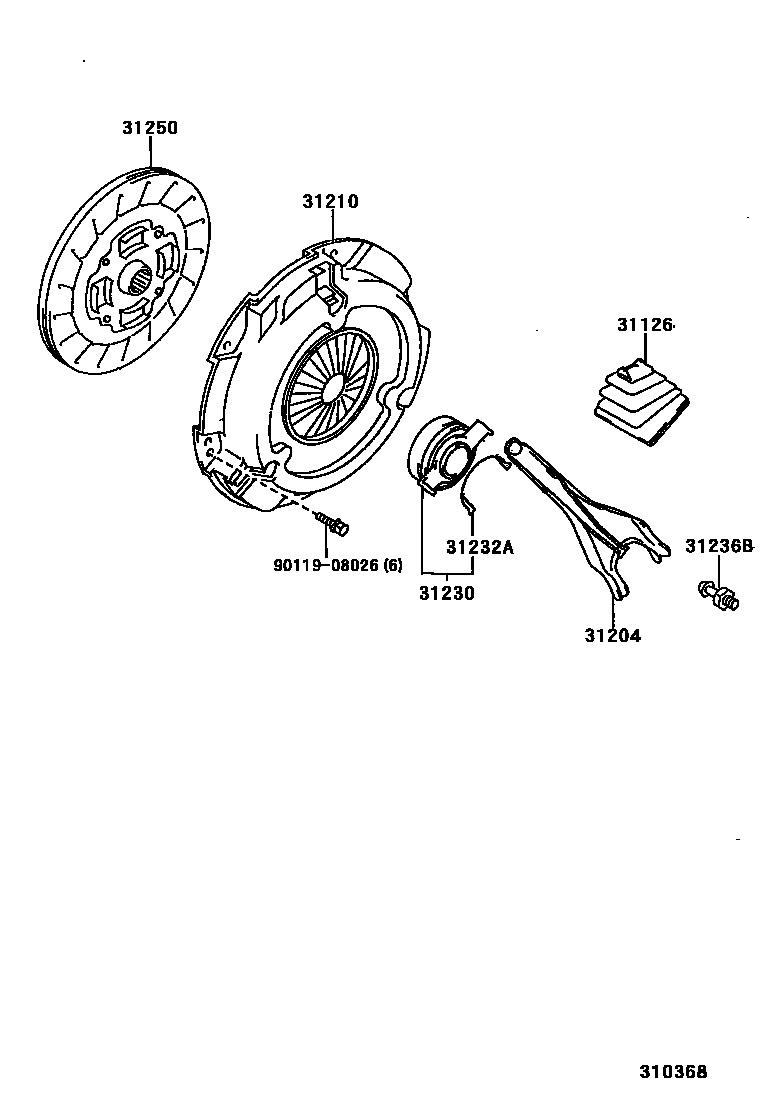

CLUTCH & RELEASE FORK

0001 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iAT22#,ZZT22#..MTM199710

main31126-20080iCDT220199908

main31126-32010iAZT220,CT220,ST220..MTM199710

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iAT22#,ZZT22#..MTM199710

main31204-20100iAZT220,CT220,ST220..MTM199710

main31204-20130iCDT220199908-200301

sub31204-20131

31210COVER ASSY, CLUTCH

main31210-05011iAT22#..MTM199710-199812

sub31210-05012

main31210-05012iAT22#..MTM199812-199903

sub31210-05013

main31210-05013iAT22#,ZZT220..MTM199903-200106

sub31210-05014

main31210-05014iZZT220200106

sub31210-05015

main31210-05021iST220..MTM199710-199812

sub31210-05022

main31210-05022iST220..MTM199812-199903

sub31210-05023

main31210-05023iST220..MTM199903

sub31210-05024

main31210-05030iCT220199710-199812

sub31210-05031

main31210-05031iCT220199812-199903

sub31210-05032

main31210-05032iAZT220,CT220..MTM199903

sub31210-05033

main31210-05040iZZT221..MTM200007-200106

sub31210-05041

main31210-05041iZZT221..MTM200106

sub31210-05042

main31210-20370iCDT220199908-199909

sub31210-20371

sub31250-20351

main31210-20371iCDT220199909

sub31210-20372

31230BEARING ASSY, CLUTCH RELEASE

main31230-05010iAT22#..MTM199710-199911

sub31230-05011

main31230-05011iAT22#..MTM199911-200005

sub31230-05012

main31230-05012iAT22#,ZZT22#..MTM200005

main31230-05020iCT220,ST220..MTM199710-199911

sub31230-05021

main31230-05021iAZT220,CT220,ST220..MTM199911

main31230-20191iCDT220199908

31232ACLIP, RELEASE BEARING HUB

main31232-05010iAT22#,CT220,ST220..MTM199710-200005

main31232-05011iAT22#,ZZT22#..MTM200005

main31232-20031iCDT220199908

31236BSUPPORT, RELEASE FORK

main31236-12020iAT22#,ZZT22#..MTM199710

main31236-20080iCDT220199908

main31236-32010iAZT220,CT220,ST220..MTM199710

31250DISC ASSY, CLUTCH

main31250-05011iAT22#..MTM199710-199812

sub31250-05012

main31250-05012iAT22#..MTM199812-200007

sub31250-05060

main31250-05020iST220..MTM199710-199812

sub31250-05021

main31250-05021iST220..MTM199812-200007

main31250-05040iCT220199710-199812

sub31250-05041

main31250-05041iCT220199812-200007

sub31250-05042

main31250-05050iAZT220,ST220..MTM200007-200209

sub31250-05090

main31250-05060iZZT22#..MTM200007-200301

sub31250-05100

main31250-05090iAZT220,ST220..MTM200209-200301

sub31250-05091

main31250-20350iCDT220199908-199909

sub31250-20351

sub31210-20371

main31250-20351iCDT220199909-200206

sub31250-20352

main31250-20352iCDT220200206-200301

sub31250-20353

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section
